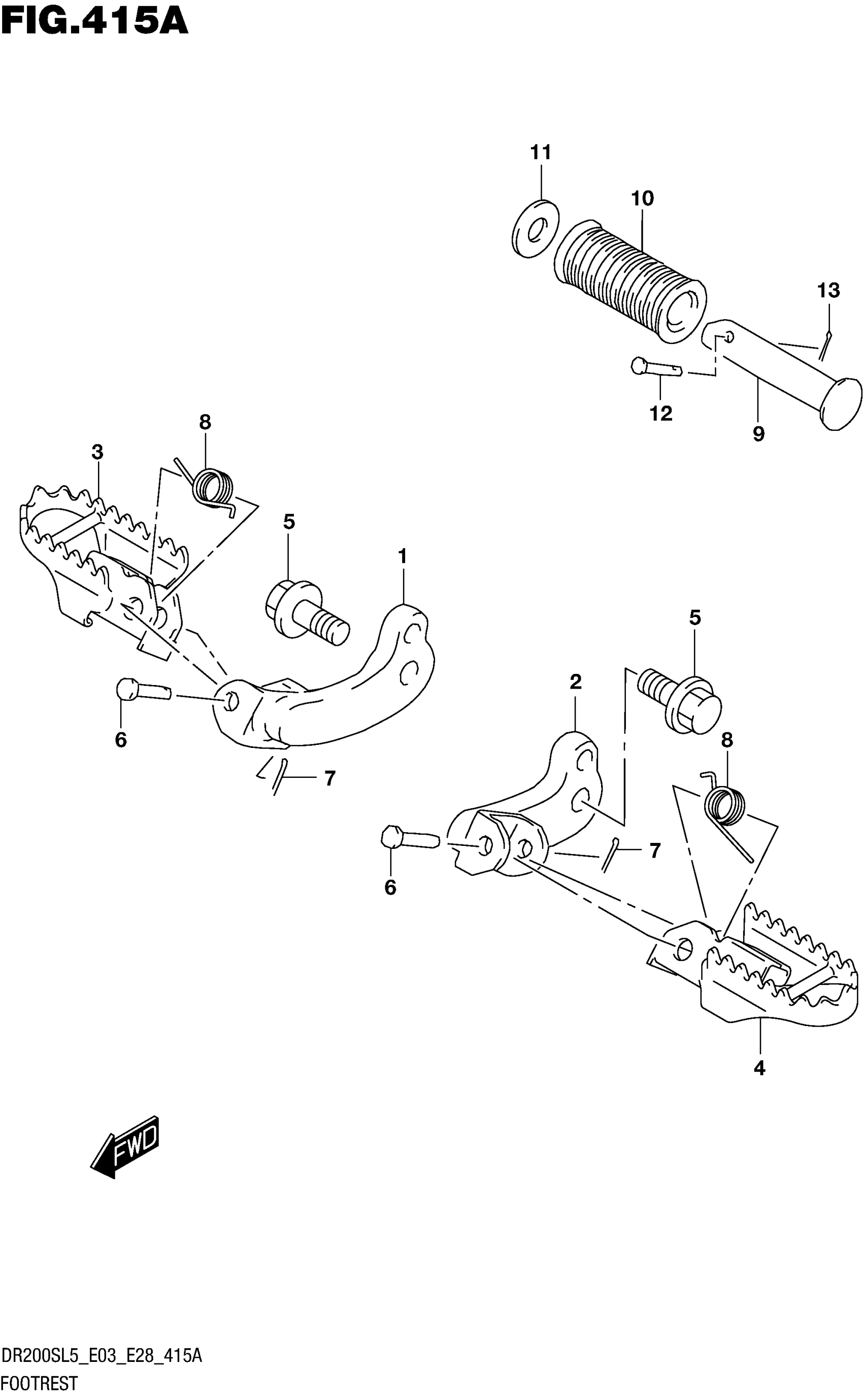

Suzuki DR200SL5 (2015) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH (BLACK)

43510-49J00-019

$86.01

2

BAR, FRONT FOOTREST LH (BLACK)

43520-49J00-019

$47.18

3

FOOTREST, FR RH (BLACK)

43550-03B00-019

$46.15

4

FOOTREST, FR LH (BLACK)

43560-03B00-019

$47.05

5

BOLT (12X25)

09103-12047

$6.57

6

PIN

09200-10013

$2.78

7

COTTER PIN

04111-2015A

$1.22

8

SPRING

09448-15004

$2.33

9

BAR, PILLION FOOTREST

43610-03001

$6.14

10

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$6.60

11

WASHER (19.5X32X2)

09160-19024

$2.76

12

PIN

09200-06033

$2.87

13

COTTER PIN

04111-2015A

$1.22
