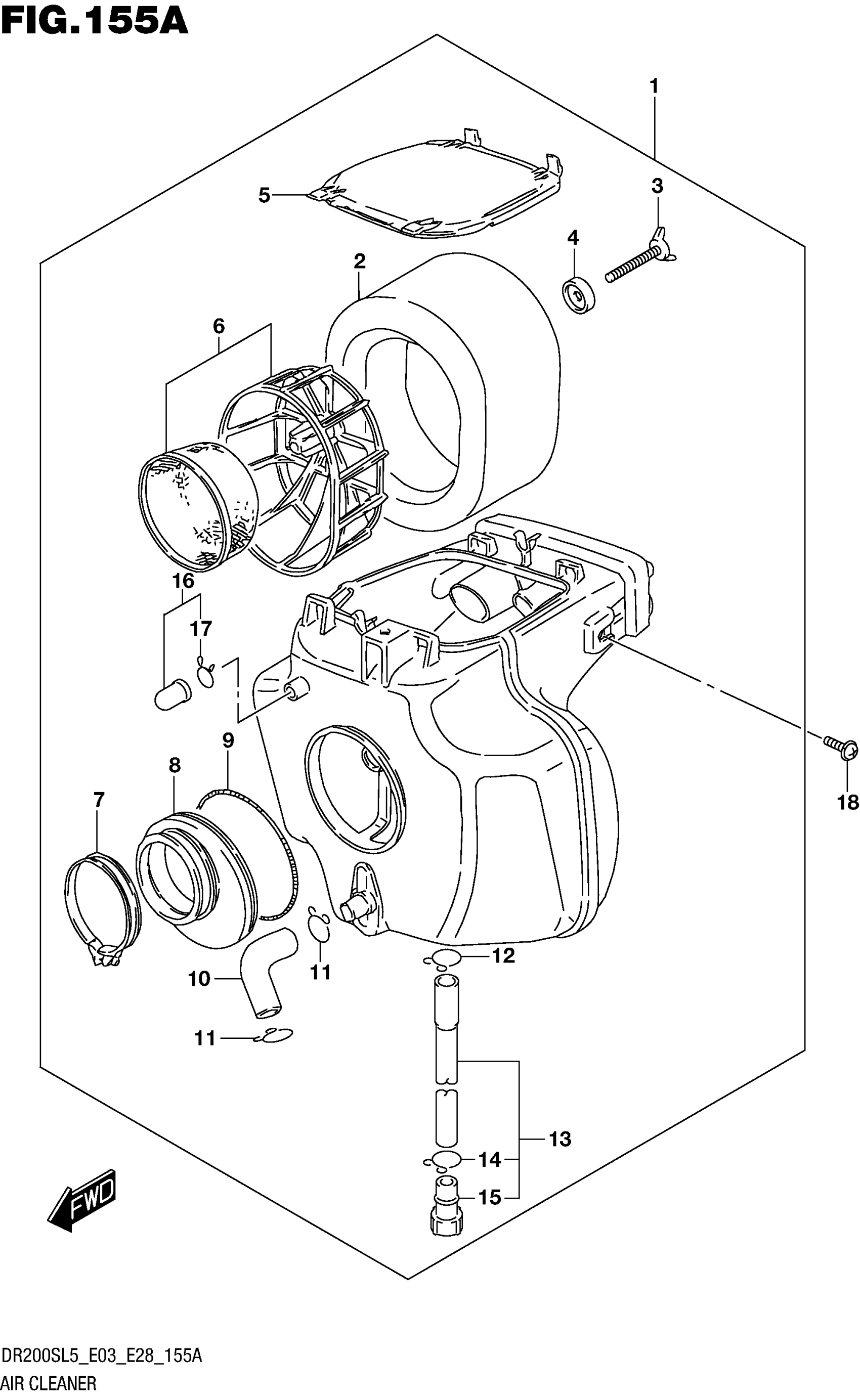

Suzuki DR200SL5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-42A01.

13700-42A02

$186.27

2

FILTER

13780-42A01

$30.57

3

BOLT, WING

13831-42A00

$4.65

4

WASHER

13796-16700

$2.80

5

CAP

13740-42A00

$23.52

6

HOLDER

13790-42A00

$95.37

7

CLAMP

09402-56901

$4.84

8

TUBE,AIR CLEANE This part replaces 13881-42A00.

13881-42A01

$12.30

9

CLAMP, AIR CLEANER SIDE

13826-38300

$3.26

10

TUBE, BREATHER

13853-42A00

$9.58

11

CLIP

09401-14301

$2.17

12

CLIP

09401-13409

$2.13

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$14.60

14

CLIP This part replaces 13824-18910.

09401-11101

$2.43

15

STOPPER, DRAIN

13877-38A00

$6.75

16

PLUG,DRAIN This part replaces 13870-14F00.

13870-14F01

$7.40

17

CLIP

09401-16401

$2.87

18

SCREW

02112-3616A

$1.97
