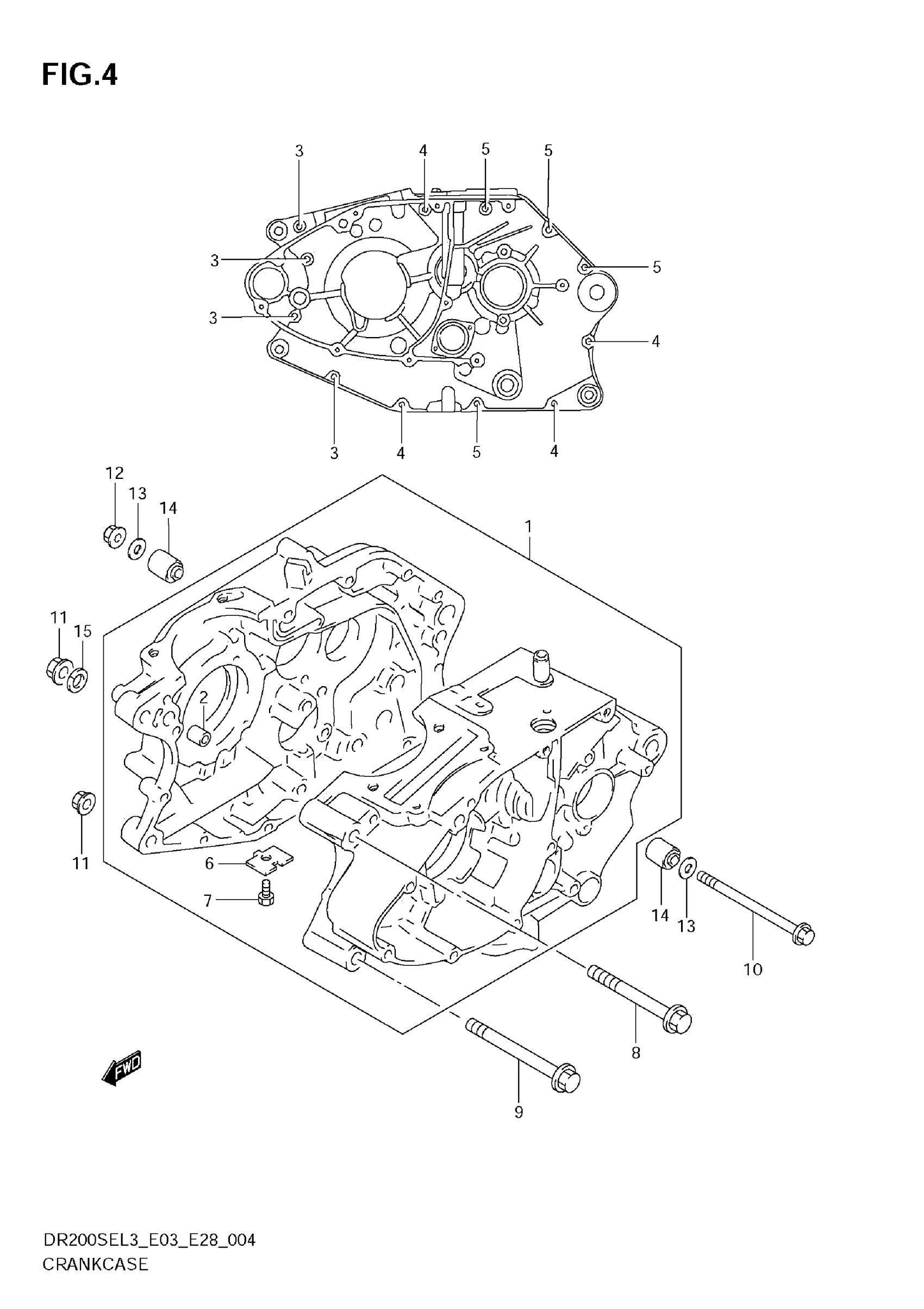

Suzuki DR200SE (2013) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-42A80

$913.45

2

KNOCK PIN

04211-13189

$2.19

3

BOLT

01547-0655A

$2.43

4

BOLT

01547-0660A

$2.80

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

BOLT

01500-0610A

$2.43

8

BOLT (10X80)

09103-10370

$7.95

9

BOLT (10X90)

09103-10374

$6.75

10

BOLT (8X115)

09103-08138

Unavailable

11

NUT

09159-10115

$3.21

12

NUT

08319-3108A

$2.31

13

WASHER

08212-08182

Unavailable

14

BUSH (8.4X18X16)

09319-08032

Unavailable

15

LOCK WASHER

08321-0110A

$1.86
