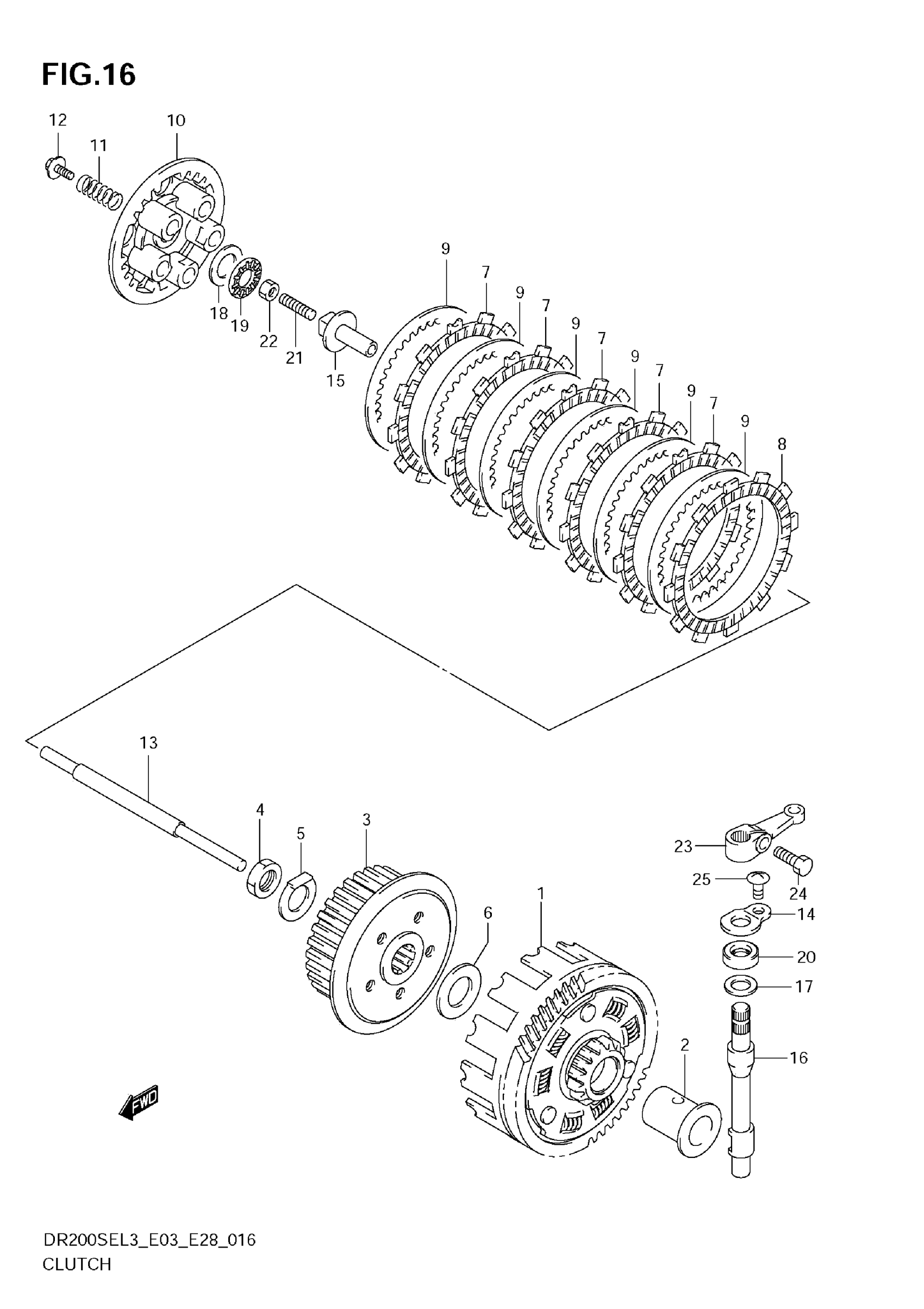

Suzuki DR200SE (2013) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN (NT:20/60)

21200-42A50

Unavailable

2

SPACER

21251-13E00

$25.67

3

HUB, CLUTCH SLEEVE This part replaces 21411-42A03.

21411-42A04

$75.02

4

NUT This part replaces 09140-16001.

09140-16005

$4.08

5

WASHER

09169-16003

$2.67

6

WASHER

08211-20355

$5.10

7

PLATE, CLUTCH DRIVE (T:3.0)

21441-25C01

$19.55

8

PLATE, CLUTCH DRIVE (T:3.0)

21441-13A01

$13.49

9

PLATE, CLUTCH DRIVEN (T:1.4)

21451-01B40

$7.69

10

DISC, CL PRESSURE This part replaces 21462-14103.

21462-14130

$28.07

11

SPRING

09440-15021

$3.56

12

BOLT (5X16)

09116-05020

$2.06

13

ROD, CLUTCH PUSH

23110-05203

$20.33

14

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80

15

PIECE, CLUTCH PUSH

23121-38201

$30.18

16

CAMSHAFT, CLUTCH RELEASE

23122-05200

$56.53

17

SHIM (10X20X1)

09181-10195

$2.00

18

WASHER (15.5X28X1)

09160-15045

$3.52

19

BEARING (15X28X2)

09263-15003

$7.49

20

OIL SEAL (10X20X6)

09282-10012

$7.20

21

SCREW (6X25)

09134-06010

$2.81

22

NUT

09140-06023

$2.07

23

ARM, CLUTCH RELEASE

23271-46010

$32.70

24

BOLT

01500-0616A

$1.77

25

SCREW

02142-0610A

$1.38
