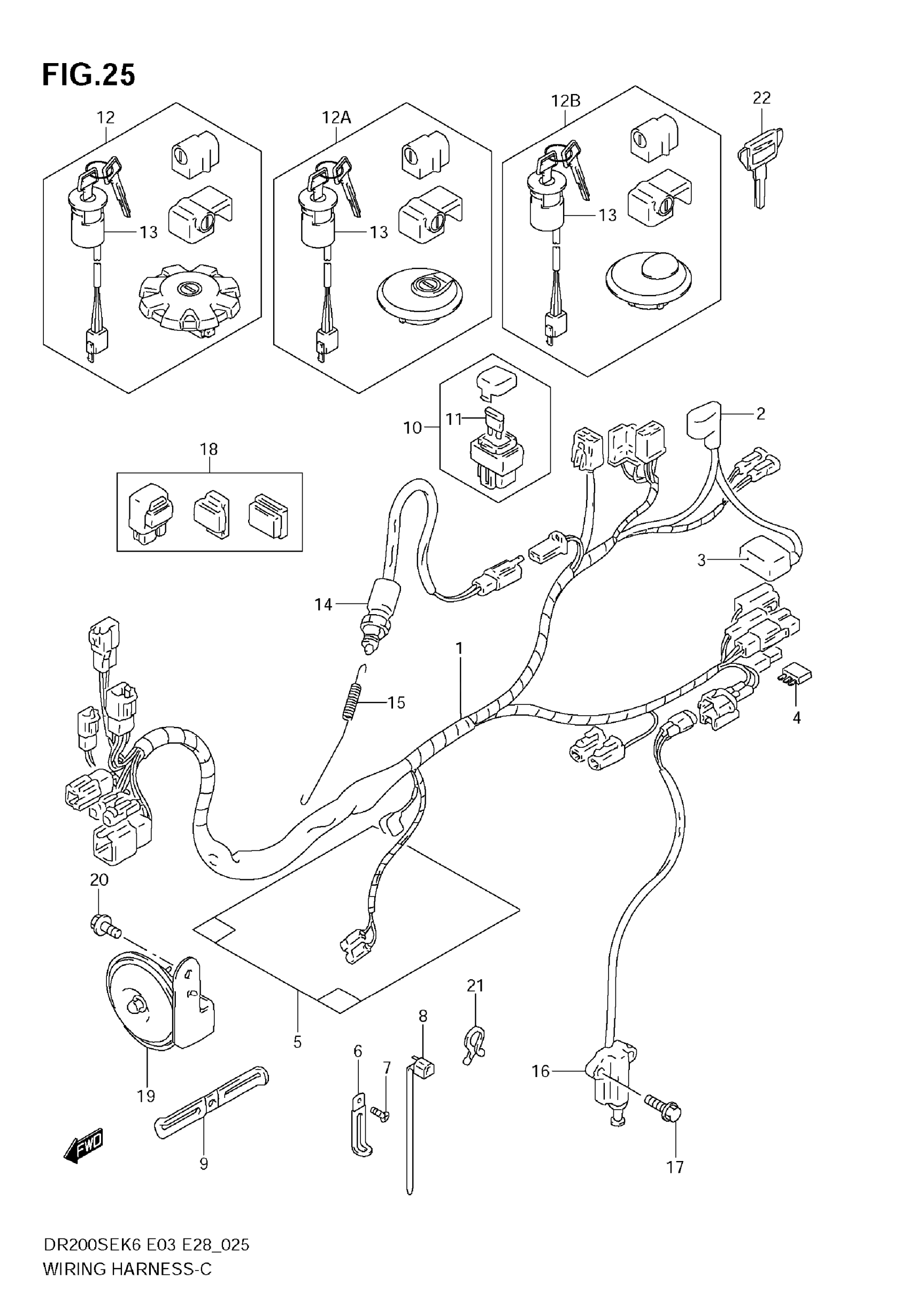

Suzuki DR200SE (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 4

36610-42A50

Unavailable

2

CAP, RELAY

31861-10D00

Unavailable

3

CAP, BATTERY (+)

33624-10D00

$7.12

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

5

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$21.28

6

CLAMP (L:45)

09404-06429

$1.82

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

7

SCREW

03541-0410B

Unavailable

8

CLAMP (L:95)

09407-11401

$2.87

8

CLAMP (L:125)

09407-14403

$2.24

8

CLAMP (L:165)

09407-18402

$2.21

8

CLAMP (L:235)

09407-25401

$4.21

9

CLAMP, STARTER MOTOR LEAD

36651-05301

Unavailable

10

BOX ASSY, FUSE | Includes Item(s) 11

36740-24B01

$31.82

11

FUSE (20A)

09481-20101

$2.13

12

LOCK SET This part replaces 37000-44820.

37000-44821

Unavailable

12A

LOCK SET | MODEL K6/K7 E33 This part replaces 37000-44830.

37000-44831

Unavailable

12B

LOCK SET | MODEL K8/K9 E33; Includes Item(s) 13 This part replaces 37000-44870.

37000-44871

Unavailable

13

SWITCH ASSY, IGNITION This part replaces 37110-44A01.

37110-44A20

$117.03

14

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

15

SPRING

09443-06064

$5.65

16

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$75.68

17

BOLT

01550-0620B

$2.38

18

RELAY ASSY, SIDE STAND

38740-24X50

$41.38

19

HORN ASSY

38500-44B00

$98.98

20

BOLT

01550-0612B

$2.38

21

CLIP, LEAD WIRE

09408-00012

$2.68

22

KEY, BLANK | OPT,TYPE C

37146-03A00

$9.32

22

KEY, BLANK | OPT,TYPE D

37146-03A10

$13.13

22

KEY, BLANK | OPT,TYPE E

37146-03A20

$13.65

22

KEY, BLANK | OPT,TYPE F

37146-03A30

$9.68
