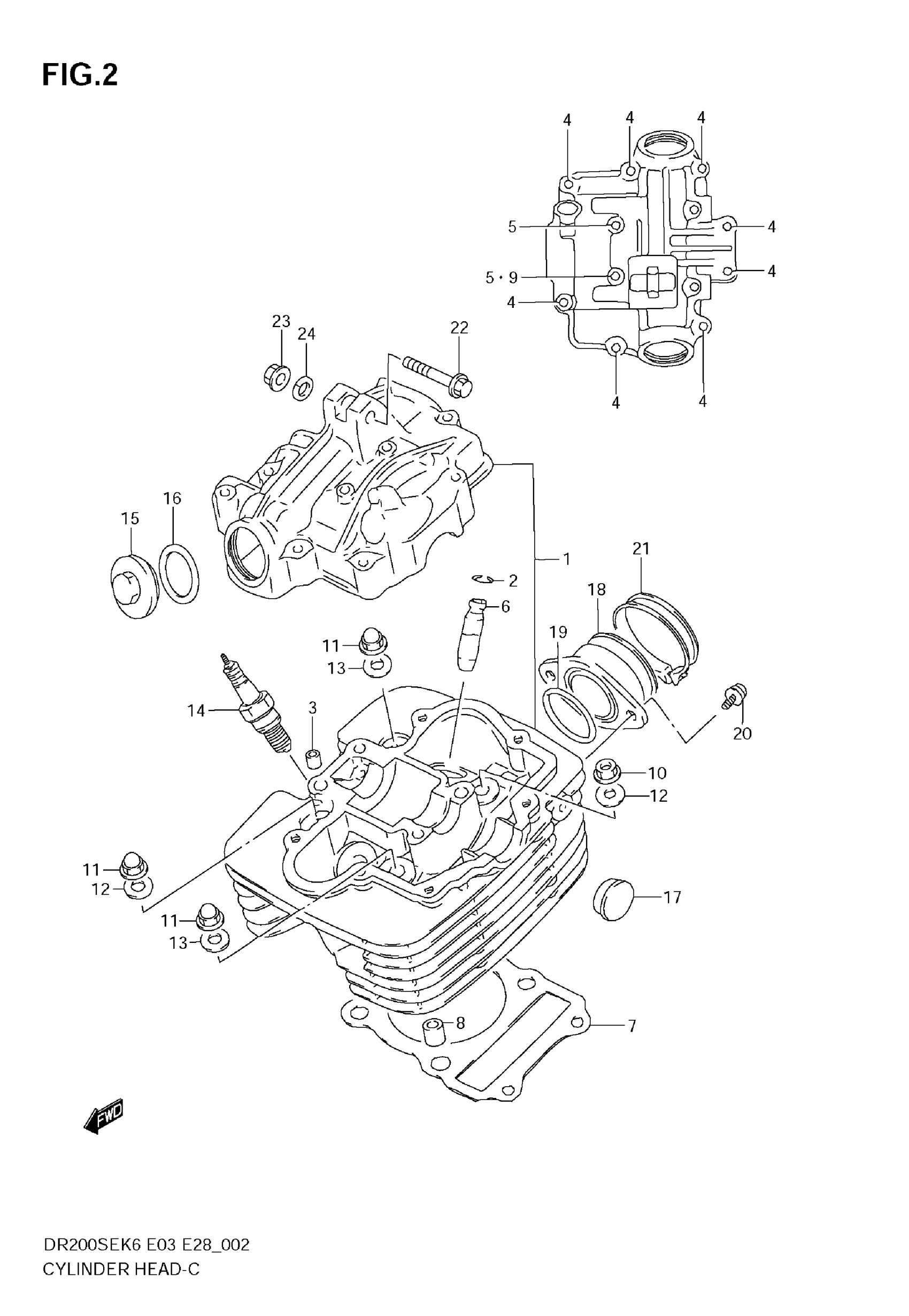

Suzuki DR200SE (2009) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 5

11100-42A20

$962.70

2

.RING (10X85)

09381-10004

$1.35

3

PIN (8X11)

09206-08001

$1.77

4

BOLT

01550-0635B

$2.75

5

BOLT

01550-0660B

$3.22

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$30.22

7

GASKET, CYLINDER HEAD

11141-18A00

$13.01

8

KNOCK PIN

04211-11169

$1.77

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

NUT

08316-1008B

$2.65

11

NUT

09159-08049

$4.25

12

WASHER (8.5X19X2.3)

09160-08039

$1.95

13

GASKET (8.5X17X2.3)

09168-08021

$2.66

14

SPARK PLUG (X24ESR-U)

09482-00223

$4.60

14

SPARK PLUG (DR8EA)

09482-00399

$2.95

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$11.16

16

.O RING (D:3,ID:29.5)

09280-30001

$1.70

17

PLUG

09241-22002

$4.73

18

PIPE,INTAKE This part replaces 13110-42A12.

13110-42A13

$25.40

19

O RING

09280-35001

$1.80

20

SCREW

02112-3616B

$2.53

21

CLAMP

09402-48208

$4.19

22

BOLT (8X53)

09103-08332

$5.00

23

NUT

08319-3108B

$2.75

24

LOCK WASHER

08321-0108B

Unavailable
