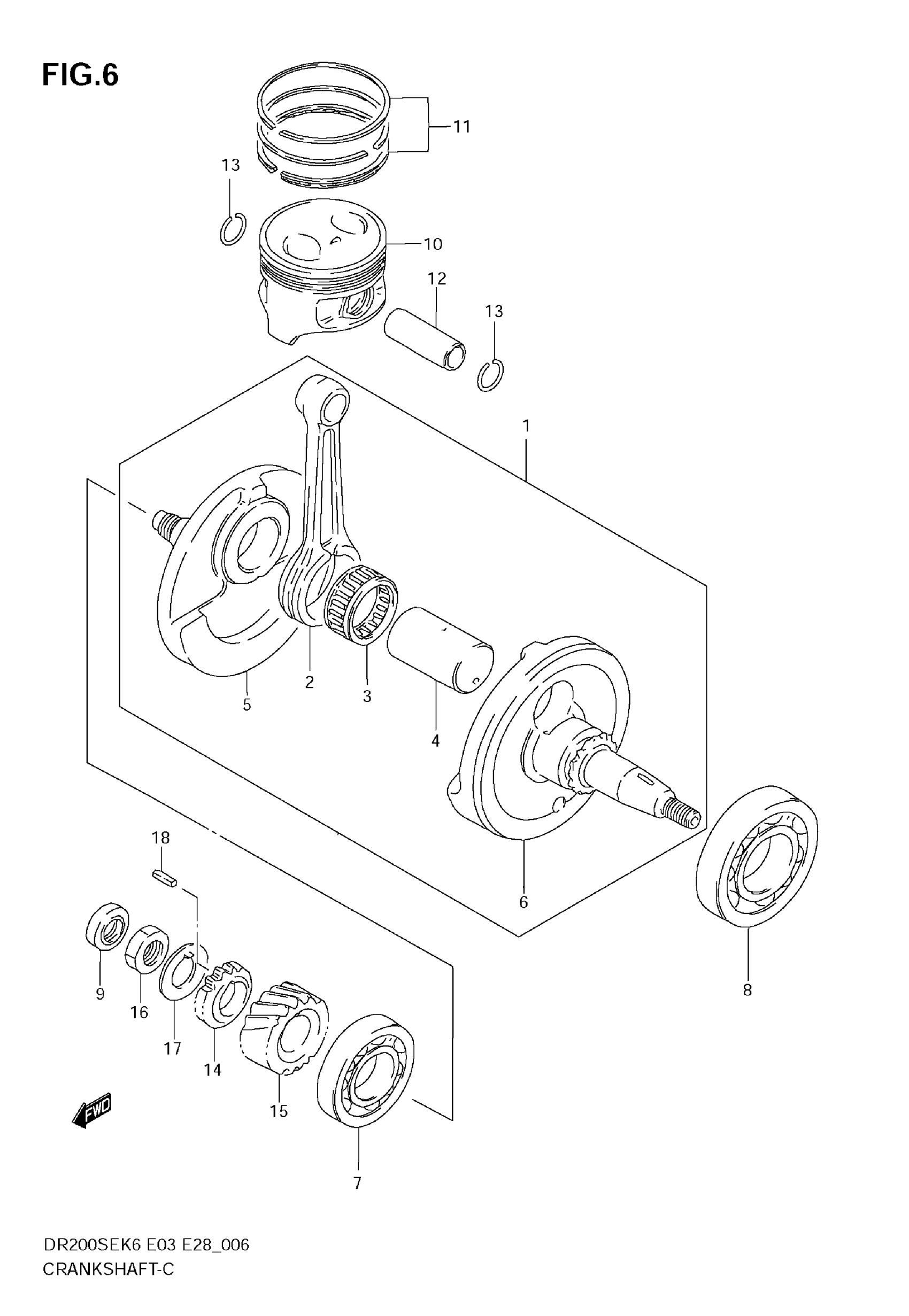

Suzuki DR200SE (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-42A21

$677.85

2

ROD, CONNECTING

12161-42A01

$70.08

3

BEARING

09263-31008-0B0

$53.83

4

PIN, CRANK

12210-42A01

$29.23

5

CRANKSHAFT, RH

12221-42A02

Unavailable

6

CRANKSHAFT, LH

12261-42A20

Unavailable

7

BEARING (28X68X18)

09262-28014

$74.08

8

BEARING (35X72X17)

09262-35038

$42.19

9

OIL SEAL (12X21X7)

09282-12009

$16.75

10

PISTON This part replaces 12111-42A11-0F0.

12111-42A20-0F0

$104.62

11

RING SET, PISTON (STD) | MODEL K6/K7/K8 MODEL K9 E3,E28

12140-42A01

$91.23

11

RING SET, PISTON (STD) | MODEL K9 E33 This part replaces 12140-22A11.

12140-42A01

$91.23

12

PIN, PISTON

12151-22A02

$11.12

13

SNAP RING

09381-16001

$1.45

14

GEAR, OIL PUMP DRIVE (NT:15)

16321-42A00

Unavailable

15

GEAR, PRIMARY DRIVE (NT:19)

21111-42A01

Unavailable

16

NUT

09140-18004

$2.95

17

WASHER

09166-18003

$2.58

18

KEY

09421-04007

$8.00
