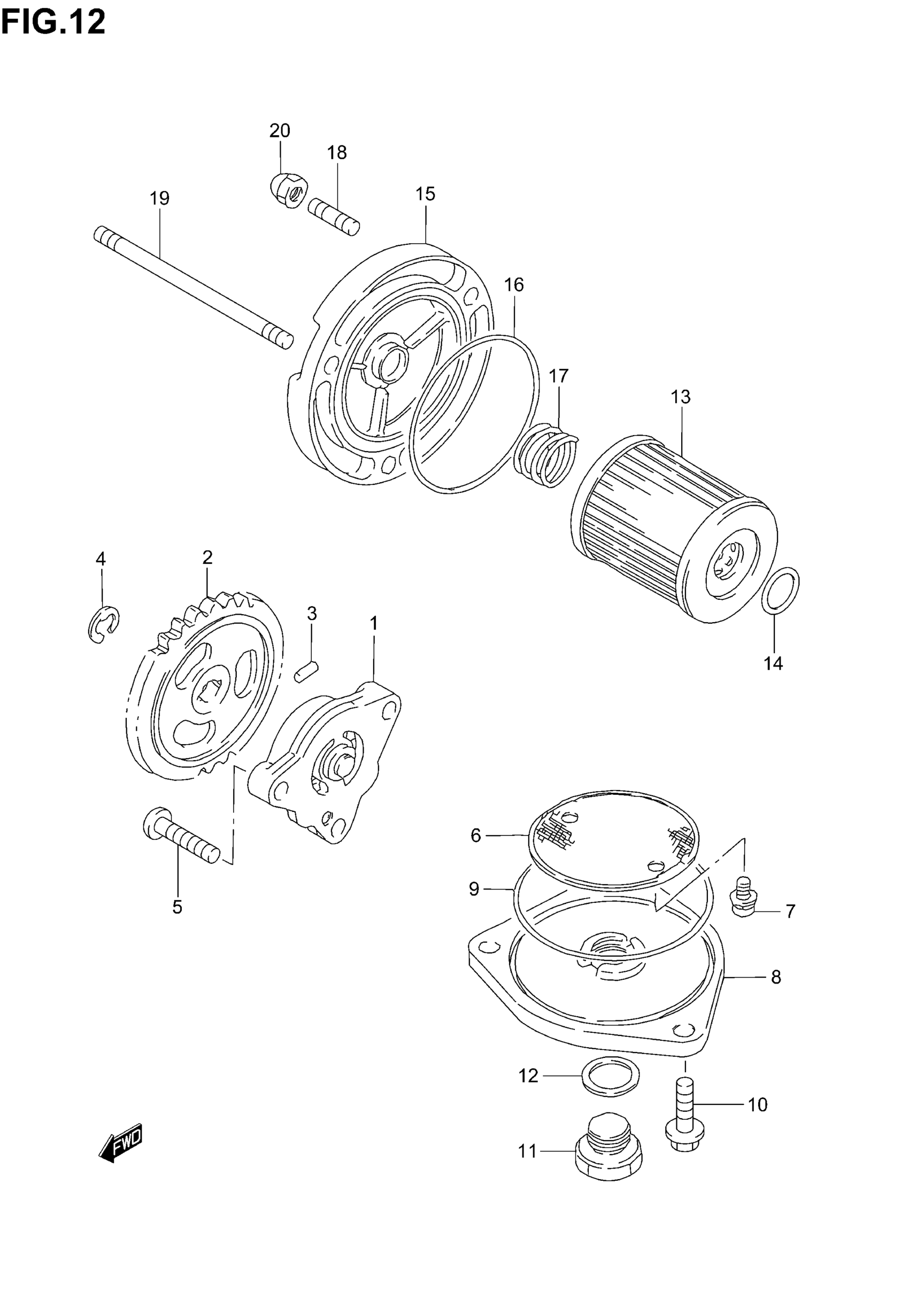

Suzuki DR200SE (2005) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-42A01

$175.28

2

GEAR, OIL PUMP DRIVEN (NT:30) | MODEL K1 This part replaces 16331-42A00.

16331-04B00

$51.22

2

GEAR, OIL PUMP DRIVEN (NT:30) | MODEL K2

16331-04B00

$51.22

2

GEAR, OIL PUMP DRIVEN (NT:30) | MODEL K3/K4/K5

16331-35C00

Unavailable

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

5

SCREW This part replaces 02112-06253.

02112-0625A

$1.79

6

STRAINER, ENGINE OIL

16520-05202

$5.46

7

SCREW This part replaces 02112-75123.

02112-7512A

$2.43

8

CAP, OIL STR

16523-05200

$13.43

9

.O RING (D:2.4,ID:60.5)

09280-60005

$2.87

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

11

PLUG

09247-14026

$3.38

12

GASKET (13.8X18.8X0.4)

09168-14002

$2.83

13

FILTER ASSY, ENG OIL

16510-25C00

$6.94

14

O RING (D:1.9,ID:13)

09280-13004

$2.19

15

CAP, OIL FILTER

16512-42A20

$37.12

16

O RING (D:2.4,ID:52.6)

09280-54001

$3.38

17

SPRING

09440-18002

$1.09

18

STUD BOLT | MODEL K1/K2/K3 This part replaces 01421-06128.

09108-06128

$2.15

18

STUD BOLT | MODEL K4/K5

09108-06123

$2.84

19

STUD BOLT (L:90)

09108-06108

$3.38

20

NUT This part replaces 08313-10063.

08313-1006A

$1.83
