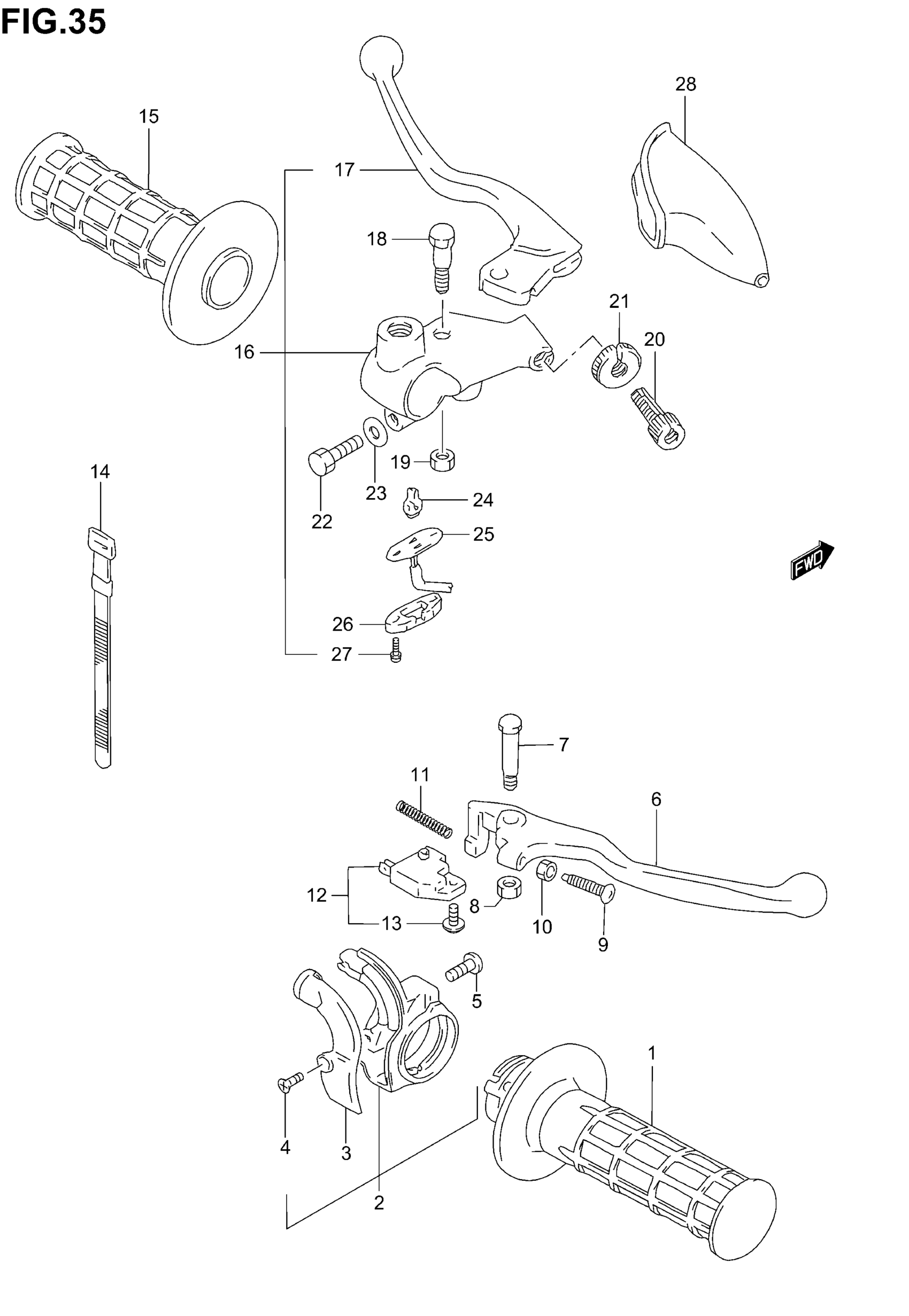

Suzuki DR200SE (2005) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D00

$29.16

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 5 This part replaces 57100-28B00.

57100-13610

$51.30

3

COVER

57129-13601

$13.50

4

SCREW This part replaces 02122-04103.

02122-0410A

$1.22

5

SCREW

02112-05164

$2.87

6

LEVER, BRAKE

57421-03D00

$13.76

7

BOLT, BRAKE LEVER

57431-14500

$5.75

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

9

BOLT, ADJUST

57431-14511

$5.46

10

NUT This part replaces 08310-00053.

08310-0005A

$1.83

11

SPRING, RETURN

57318-14502

$4.09

12

SWITCH ASSY,FR BRAKE | MODEL K1/K2/K3 This part replaces 57460-17C00.

57460-14J02

$35.21

12

SWITCH ASSY,FR BRAKE | MODEL K4/K5; Includes Item(s) 13 This part replaces 57460-17C11.

57460-14J02

$35.21

13

SCREW

57465-17C00

$2.37

14

CLAMP (L:120)

09407-12402

$2.80

15

GRIP LH

57211-27C00

$11.25

16

LEVER ASSY,CLUT | Includes Item(s) 17 - 27 This part replaces 57500-44AD0.

57500-44AF1

$71.61

17

LEVER

57620-15D11

$22.36

18

BOLT

57431-11013

$5.95

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

20

ADJUSTER

57441-11010

$5.14

21

NUT

57442-44B00

$14.00

22

BOLT

01500-06207

$1.99

23

WASHER

08322-01067

$1.86

24

CONTACT

57465-18601

$3.97

25

WIRE HARNESS

57541-49100

$11.20

26

COVER

57481-33010

$5.50

27

SCREW

57484-49110

$2.25

28

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.02
