Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-03D00.

59600-03D01

$328.50

2

PISTON/CUP SET

69600-38810

$66.13

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-44B00

$8.95

5

CAP

59669-03D00

$36.47

6

.SCREW This part replaces 02122-04123.

02122-0412A

$1.95

7

HOLDER

59671-03D00

$29.60

8

BOLT

59675-27C00

$3.34

9

SEPARATOR

59748-14500

$13.40

10

UNION | MODEL K1/K2 This part replaces 09360-10039.

09360-10061

$5.89

10

UNION | MODEL K3/K4/K5 This part replaces 09360-10041.

09360-10061

$5.89

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE, FRONT BRAKE This part replaces 59480-44AA0.

59480-44AA1

$135.40

13

CLAMP BRAKE HOSE This part replaces 58621-07A10.

58621-07A20

$3.83

14

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

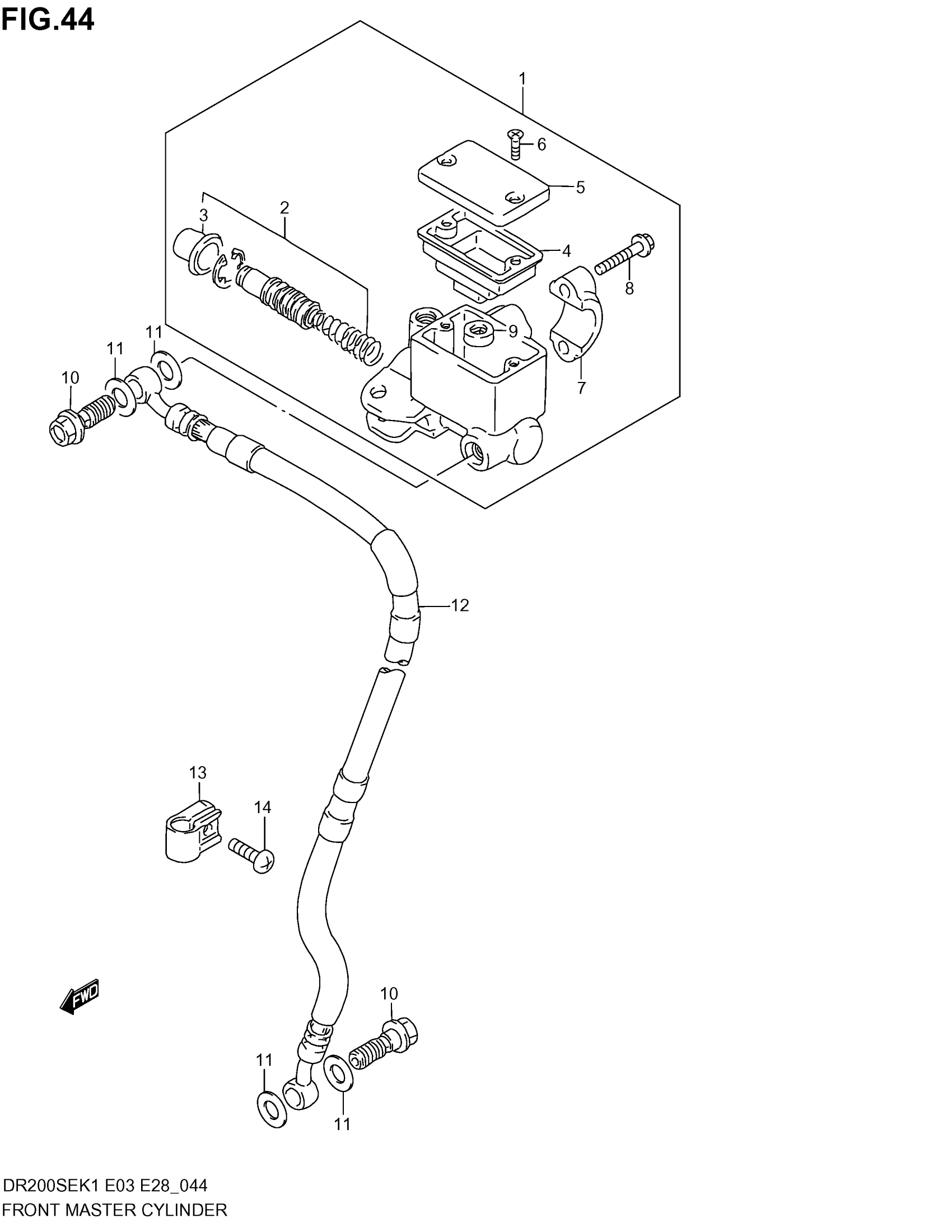

Suzuki DR200SE (2005) FRONT MASTER CYLINDER Diagram
