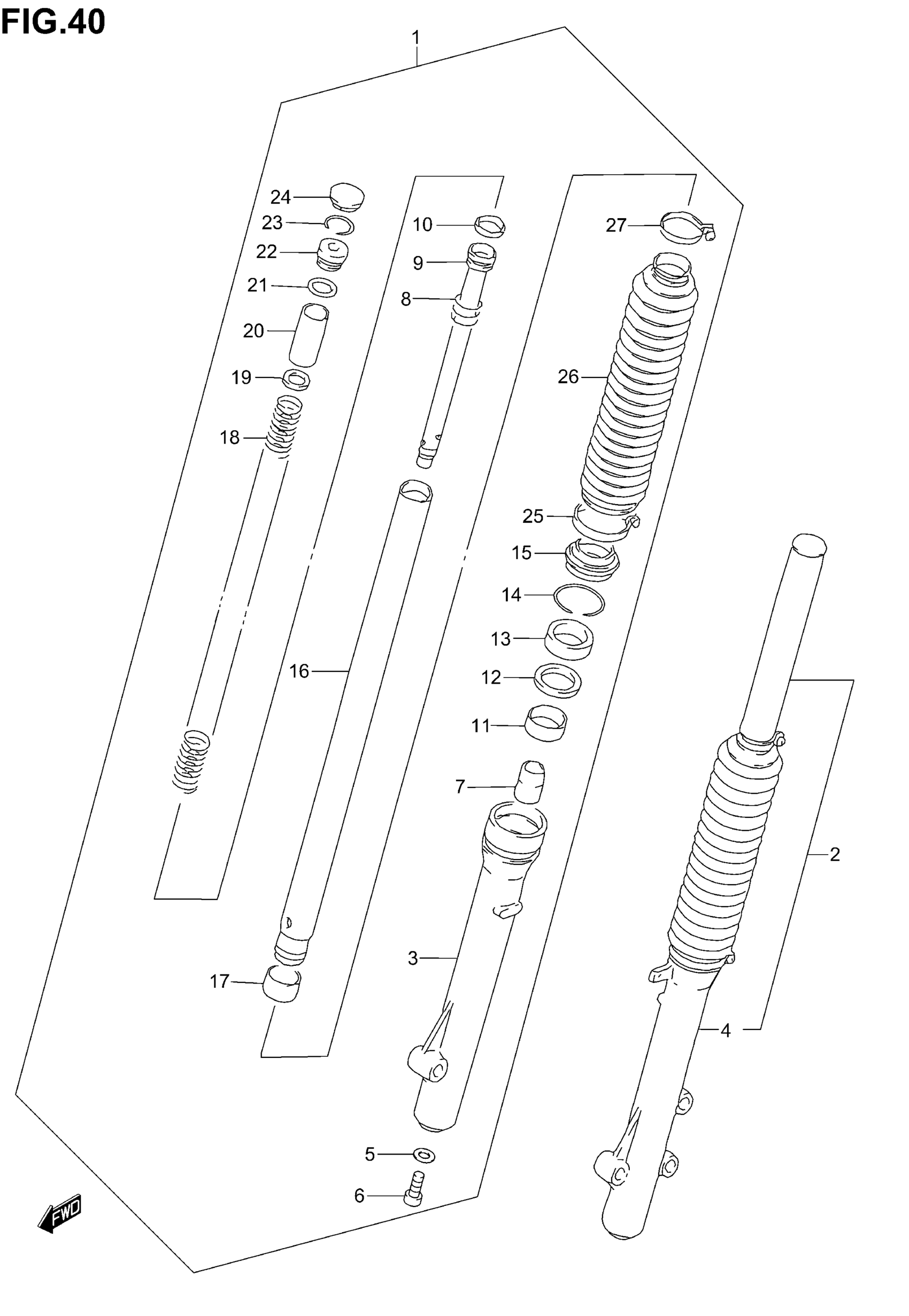

Suzuki DR200SE (2005) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-42AA0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-42AA0

Unavailable

3

TUBE, OUTER RH

51131-01A01

Unavailable

4

TUBE, OUTER LH

51141-01A01

Unavailable

5

GASKET

51148-36011

$3.26

6

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$6.75

7

PIECE, OIL LOCK

51195-43530

$22.92

8

SPRING, REBOUND

51177-01A00

Unavailable

9

CYLINDER

51146-42AA0

Unavailable

10

RING, PISTON

51196-45200

$9.50

11

BUSH, GUIDE

51152-33300

$14.16

12

SPACER, SEAL

51168-30B00

$5.95

13

SEAL, OIL

51153-19D10

$21.62

14

RING, OIL SEAL STOPPER

51156-01A00

$4.09

15

DUST SEAL

51173-01A00

$19.95

16

TUBE, INNER

51110-01A30

Unavailable

17

PISTON

51121-33300

$28.58

18

SPRING, MAIN

51171-42AA0

Unavailable

19

SEAT, SPRING

51192-20510

Unavailable

20

SPACER, SPRING

51176-42AA0

Unavailable

21

O RING

51181-31030

$4.11

22

BOLT, SPRING

51175-47400

Unavailable

23

RING, STOPPER

51169-47400

$2.80

24

CAP

51189-31230

$10.58

25

BAND, BOOT LOWER

51576-42AA0

$14.98

26

BOOT This part replaces 51571-01A00-019.

51571-01A01-019

$51.28

27

BAND, BOOT UPPER

51575-01A00

$12.50
