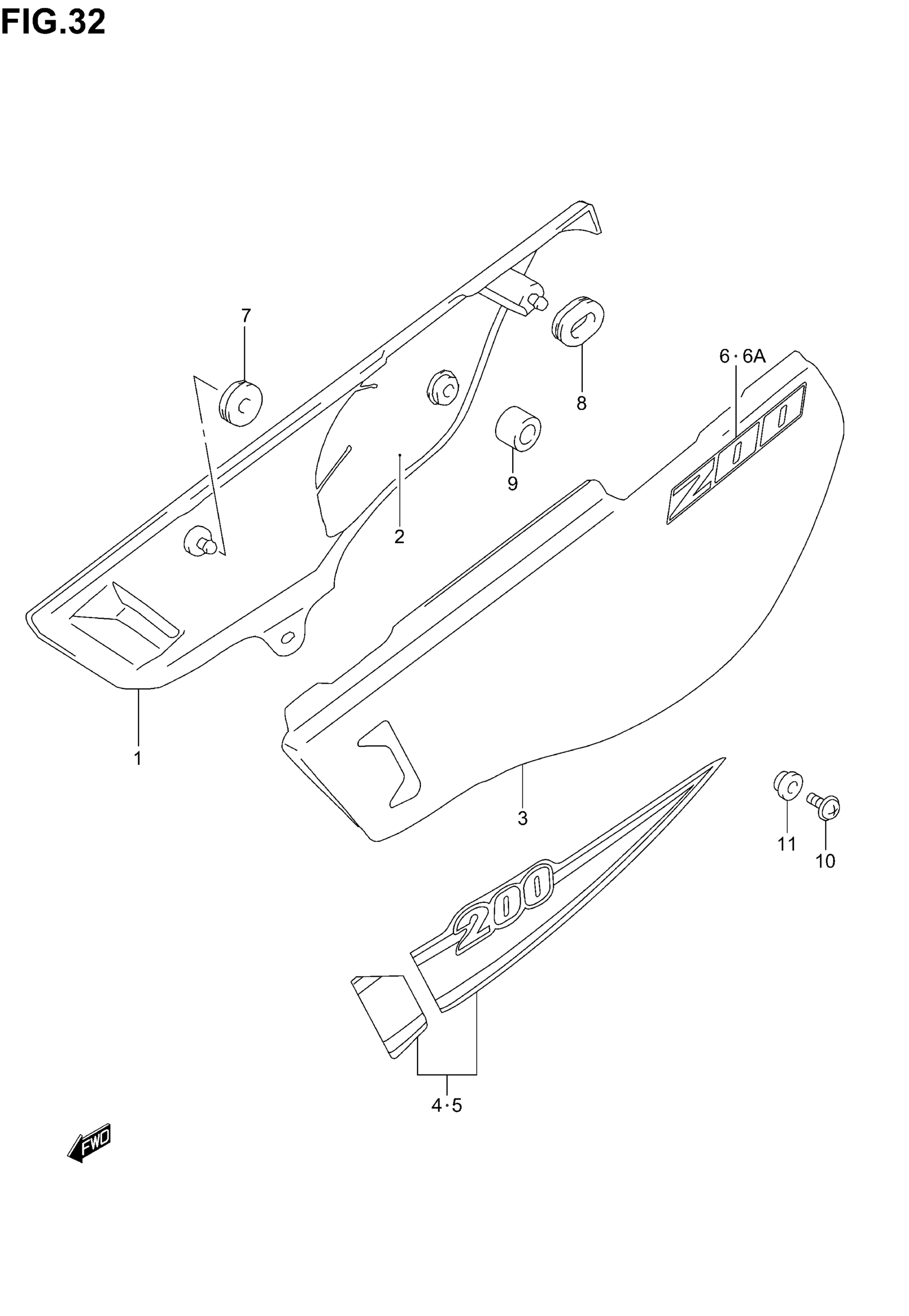

Suzuki DR200SE (2005) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL K1 This part replaces 47111-44AA0-30H.

47111-44AC0-30H

$79.61

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-44AA0-YU1

$115.98

1

COVER, FRAME RH (WHITE) | MODEL K3/K4/K5 This part replaces 47111-44AA0-30H.

47111-44AC0-30H

$79.61

2

SHIELD, FRAME COVER RH

47166-44AA0

$34.27

3

COVER, FRAME LH (WHITE) | MODEL K1 This part replaces 47211-44AA0-30H.

47211-44AB0-30H

$108.07

3

COVER, FRAME LH (YELLOW) | MODEL K2

47211-44AA0-YU1

$115.98

3

COVER, FRAME LH (WHITE) | MODEL K3/K4/K5 This part replaces 47211-44AA0-30H.

47211-44AB0-30H

$108.07

4

TAPE SET, RH | MODEL K1

68130-44A80-FF9

Unavailable

5

TAPE SET, LH | MODEL K1

68140-44A80-FF9

Unavailable

6

EMBLEM | MODEL K2

68131-44AA0-GY8

Unavailable

6

EMBLEM | MODEL K3/K4

68131-44AA0-8YM

Unavailable

6A

EMBLEM | MODEL K5

68131-42A40-8YM

Unavailable

7

CUSHION

09320-08018

$2.80

8

CUSHION

09320-08029

$2.51

9

CUSHION

09321-10027

$7.38

10

SCREW (6X16)

09136-06017

$2.39

11

WASHER This part replaces 09169-06028.

09169-06041

$1.97
