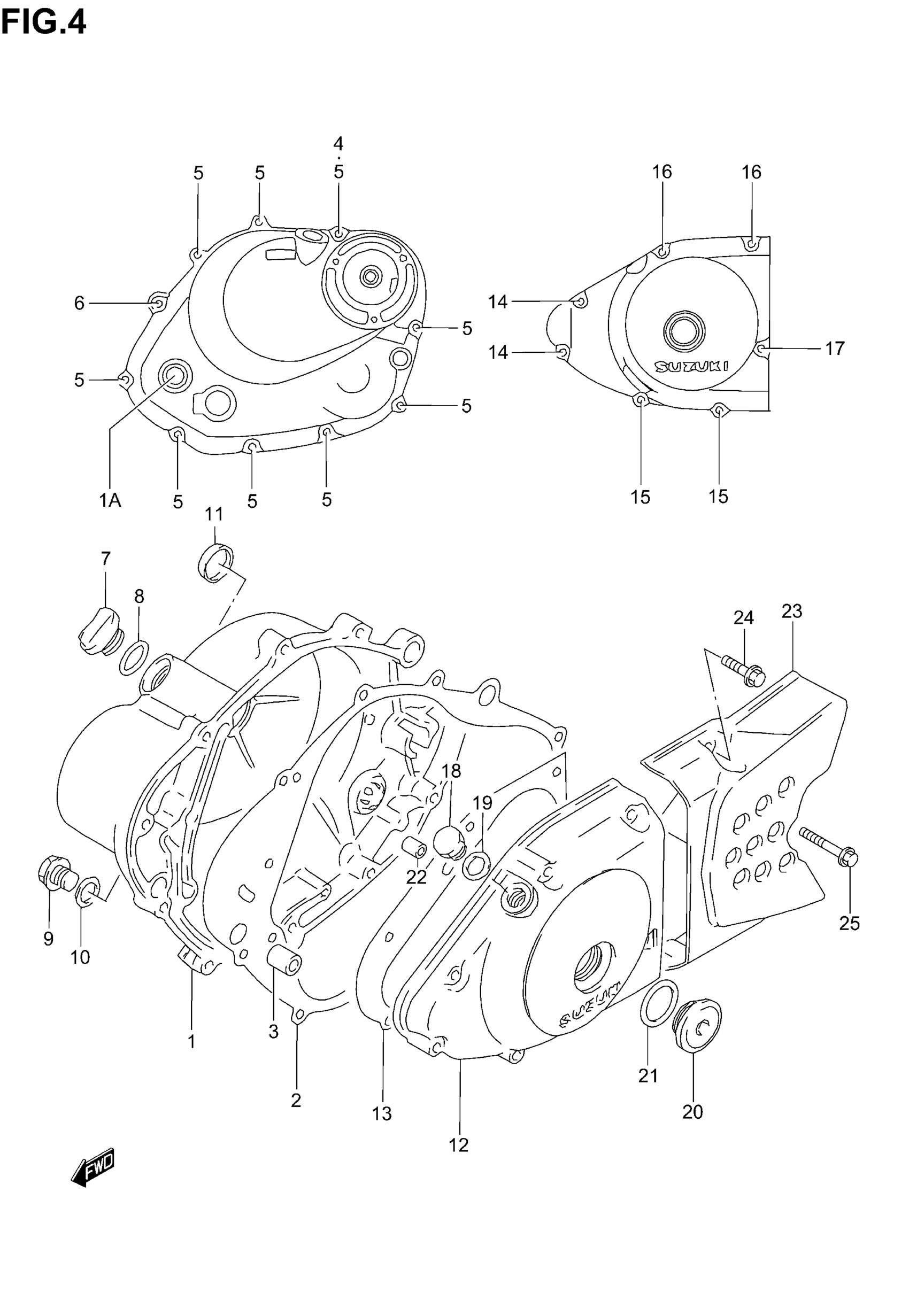

Suzuki DR200SE (2005) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL K1/K2 This part replaces 11340-42A20.

11340-42A30

$275.28

1

COVER, CLUTCH | MODEL K3/K4/K5; Includes Item(s) 1A

11340-42A30

$275.28

1A

.LENS, OIL LEVEL CHECK

11971-45010

$15.78

2

.GASKET, CLUTCH COVER

11482-05211

$11.74

3

KNOCK PIN

04211-13189

$2.19

4

GASKET (5.8X13X1.2)

09168-06023

$2.01

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

7

PLUG (20X10)

09259-20019

$10.55

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

9

PLUG

09247-14026

$3.38

10

GASKET (13.8X18.8X0.4)

09168-14002

$2.83

11

PLUG, CLUTCH COVER KICK

11342-12C51

$12.02

12

COVER, MAGNETO This part replaces 11351-42A20.

11351-42A30

$187.45

13

GASKET, MAGNETO COVER

11483-05312

$9.78

14

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

15

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

16

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

17

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

18

PLUG

09247-12104

$2.73

19

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

20

PLUG

09259-26011

$9.96

21

O RING (D:3.1,ID:22.7)

09280-22008

$2.10

22

KNOCK PIN

04211-09129

$1.64

23

COVER, ENGINE SPROCKET

11360-42A20

$103.77

24

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

25

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73
