2000 Suzuki DR200SE Rear Swinging ARM Diagram

← All diagrams

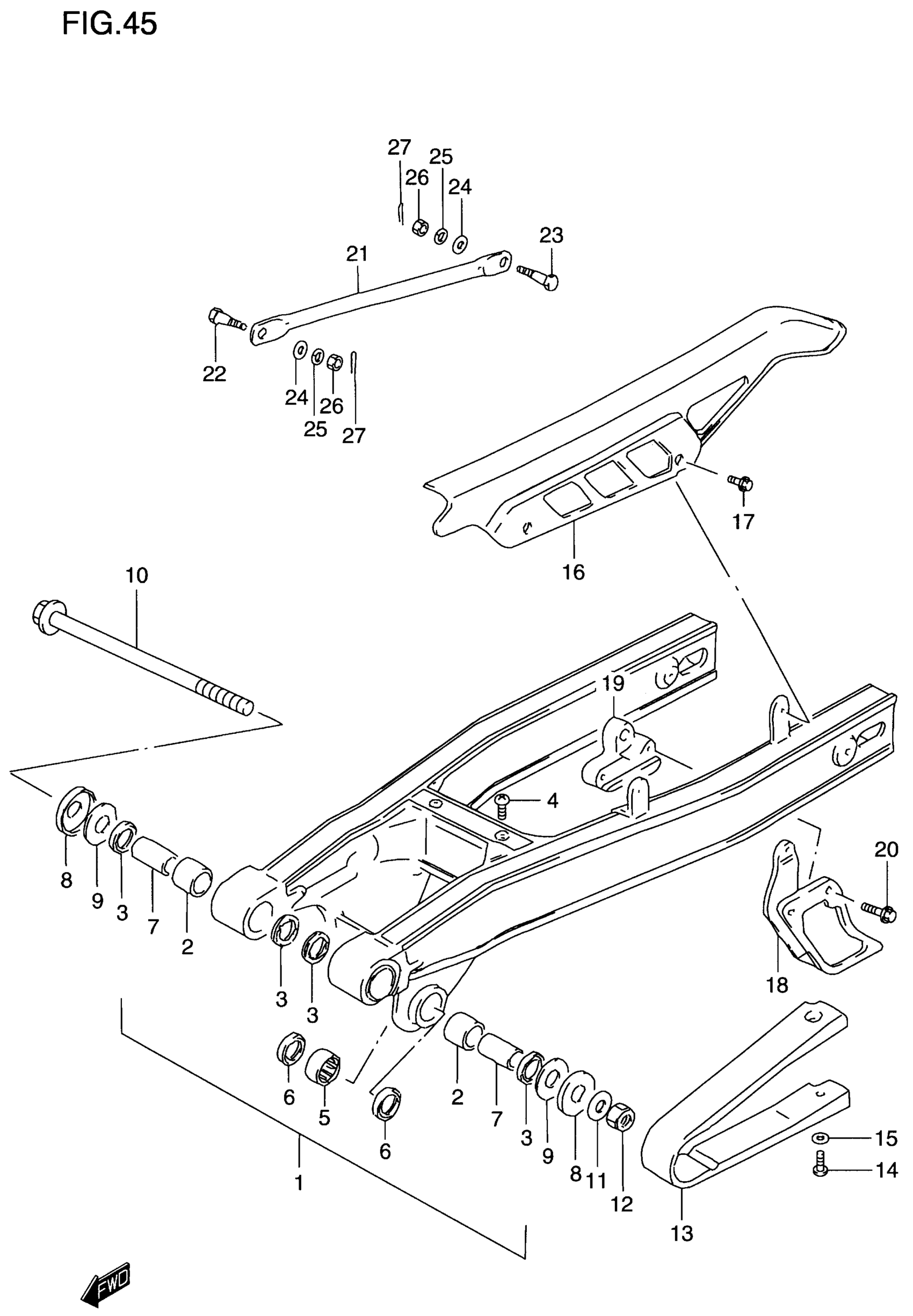

Find the part on the Rear Swinging ARM diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki DR200SE Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASS | MODEL T This part replaces 61000-42A40.

61100-42841

1
Out of stock

1

SWINGINGARM ASS | MODEL V/W/X/Y; Includes Item(s) 2 - 6 This part replaces 61100-42840.

61100-42841

1
Out of stock

2

.BUSHING, RR SWGARM PIVOT

61261-13700

2
Out of stock

3

OIL SEAL (20X27X5)

09283-20031

4
Out of stock

4

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

5

BEARING (20X27X25)

09263-20053

2
Out of stock

6

SEAL, DUST (20X27X4)

62647-44A00

4
Out of stock

7

SPACER, RR SWGARM PVT

61251-42A00

2
Out of stock

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

2
Out of stock

9

THRUST WASHER

08211-14322

2
Out of stock

10

SHAFT, PIVOT

61211-26B01

1
Out of stock

11

WASHER (14.2X24X2.3) | MODEL T/V

09160-14027

1
Out of stock

11

WASHER (14.5X24X2.3) | MODEL W/X/Y

09160-14057

1
Out of stock

12

NUT

09159-14019

1
Out of stock

13

BUFFER,CHAIN TOUCH DETENSE

61273-42A01

1
Out of stock

14

SCREW This part replaces 02142-06203.

02142-0620A

2
Out of stock

15

WASHER

09169-06037

2
Out of stock

16

CASE, CHAIN

61311-01A03

1
Out of stock

17

BOLT (6X10)

09116-06096

2
Out of stock

18

GUIDE, CHAIN This part replaces 61341-13A00.

61341-13A10

1
Out of stock

19

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

1
Out of stock

20

BOLT This part replaces 01550-06203.

01550-0620A

3
Out of stock

21

TORQUE LINK, REAR (SILVER)

64311-42A00-13L

1
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 64321-42A00.

09119-08088

1
Out of stock

23

BOLT (8X26.5)

09111-08013

1
Out of stock

24

WASHER This part replaces 08322-01083.

08322-0108A

2
Out of stock

25

WASHER

09162-08008

2
Out of stock

26

NUT

09140-08008

2
Out of stock

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
