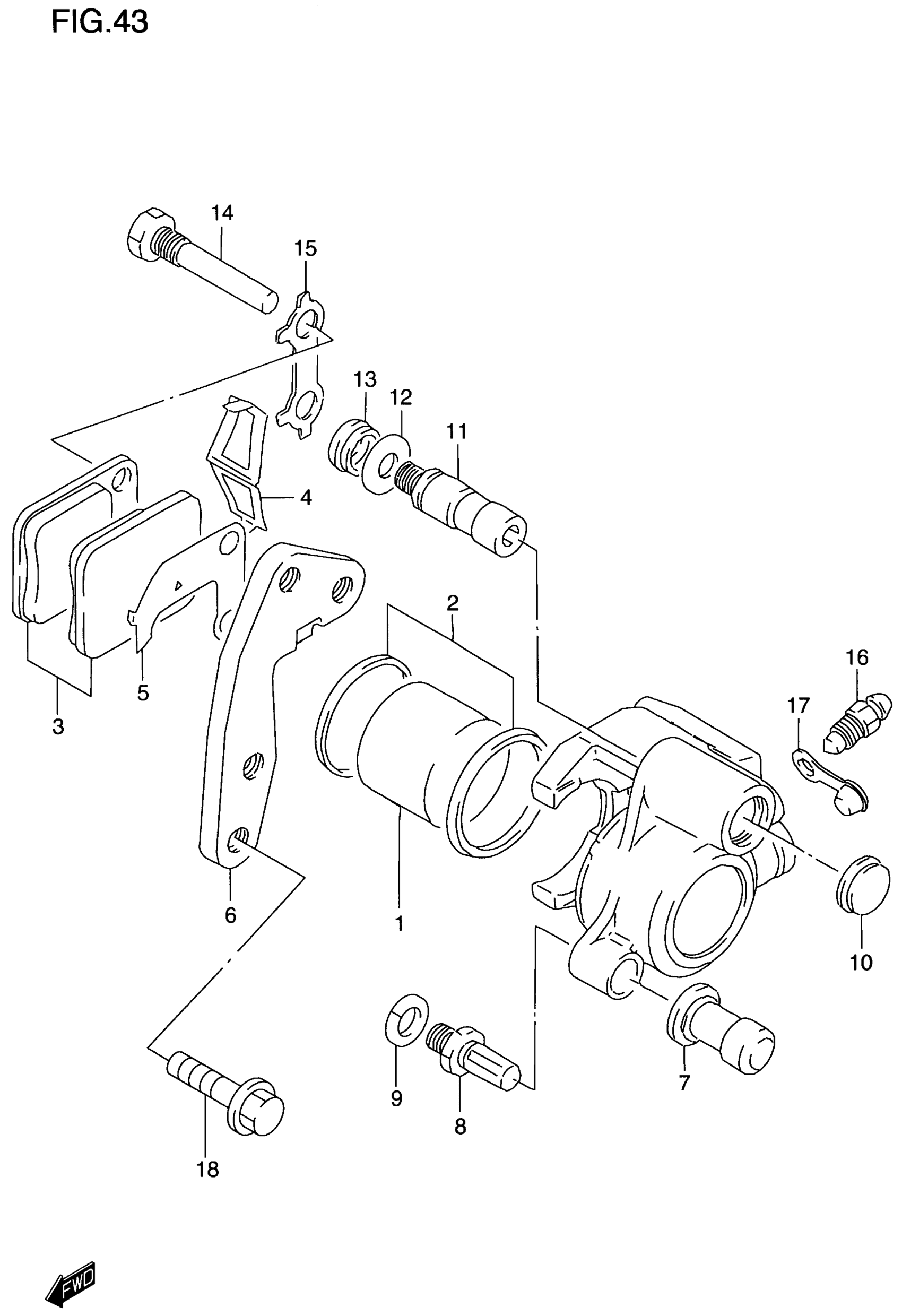

Suzuki DR200SE (2000) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 17 This part replaces 59300-42A10.

59300-42A10-999

$243.42

1

PISTON SET

59300-13810

$42.57

2

..SEAL SET,PISTON This part replaces 59300-13840.

69100-13820

$8.38

3

PAD SET This part replaces 59300-42810.

59100-38870

$46.21

4

SPRING

59315-13A00

$12.43

5

SHIM

59371-13A00

$10.58

6

BRACKET

59351-13A01

Unavailable

7

BOOT

59386-13A00

$7.60

8

BOLT

59382-13A00

$7.56

9

WASHER

59314-13A00

$2.28

10

DUST SEAL

59384-13A00

$5.16

11

PIN, SLIDE

59305-13A01

$22.60

12

SPRING

59306-13A00

$3.57

13

BOOT

59303-13A00

$5.71

14

PIN

59345-13A00

$7.88

15

WASHER

59346-13A00

$4.70

16

BLEEDER

59121-01A00

$8.35

17

CAP, BLEEDER

59122-01A00

$4.15

18

BOLT (8X30)

09103-08269

$2.80
