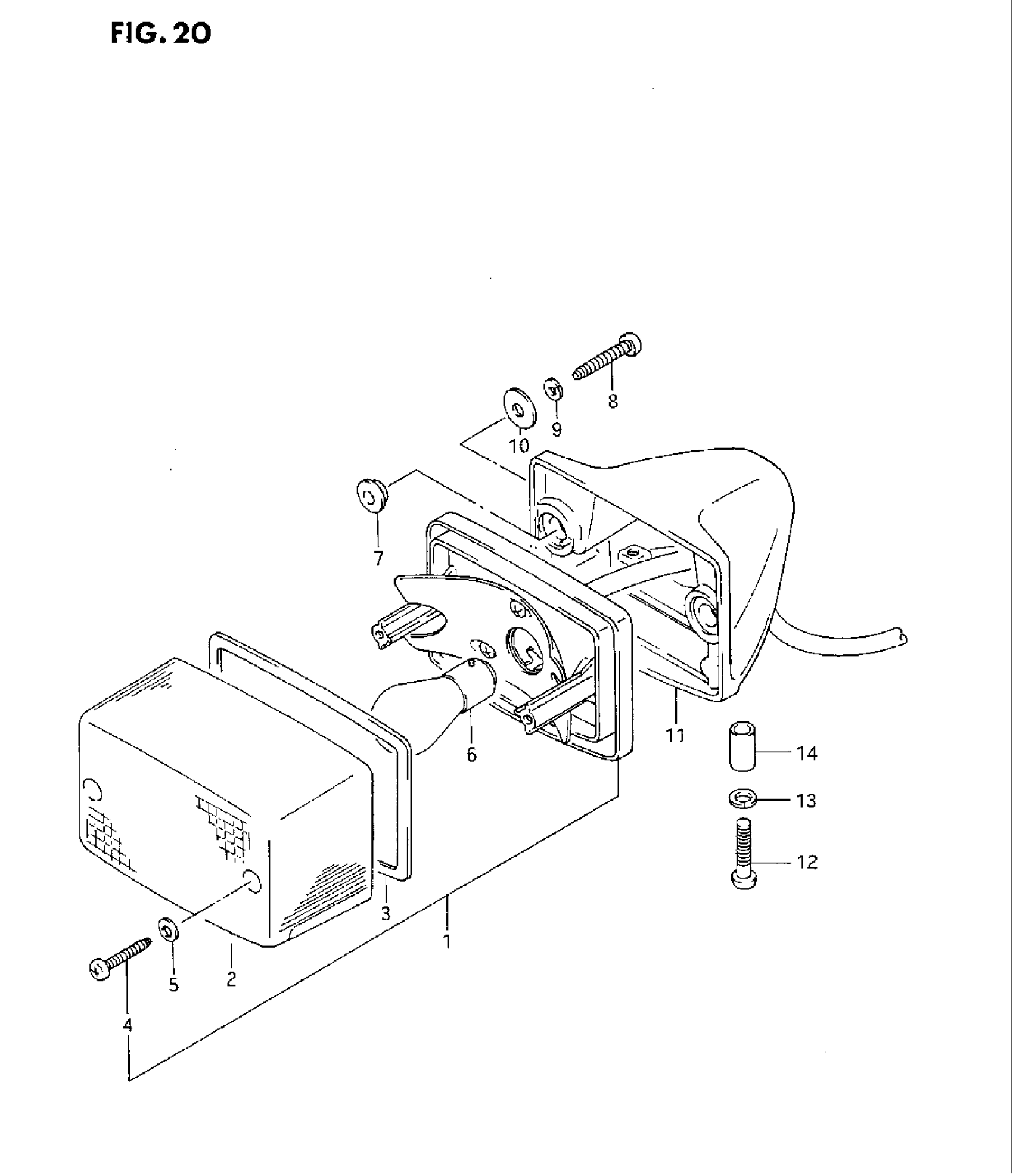

Find the part on the Rear Comb Lamp diagram for your 1987 Suzuki DR200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR200 Rear Comb Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION

35720-42A00

1
Out of stock

2

LENS,RR COMB This part replaces 35712-24530.

35712-24531

1
Out of stock

3

GASKET

35713-13600

1
Out of stock

4

SCREW This part replaces 03211-04208.

03211-04207

2
Out of stock

5

GASKET

35627-43010

2

$2.65

In stock

6

BULB (6V, 5W)

09471-06049

1
Out of stock

7

SPACER

35766-01A00

2
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 03211-05255.

03212-05253

2
Out of stock

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

10

WASHER (5.5X16X1.2) This part replaces 35727-17210.

09160-05037

2
Out of stock

11

BRACKET UNIT

35730-42A00

1
Out of stock

12

SCREW This part replaces 02112-06256.

02112-0625A

3
Out of stock

13

3

$1.97

In stock

14

SPACER (6.4X9.2X12 )

09180-06121

3
Out of stock
