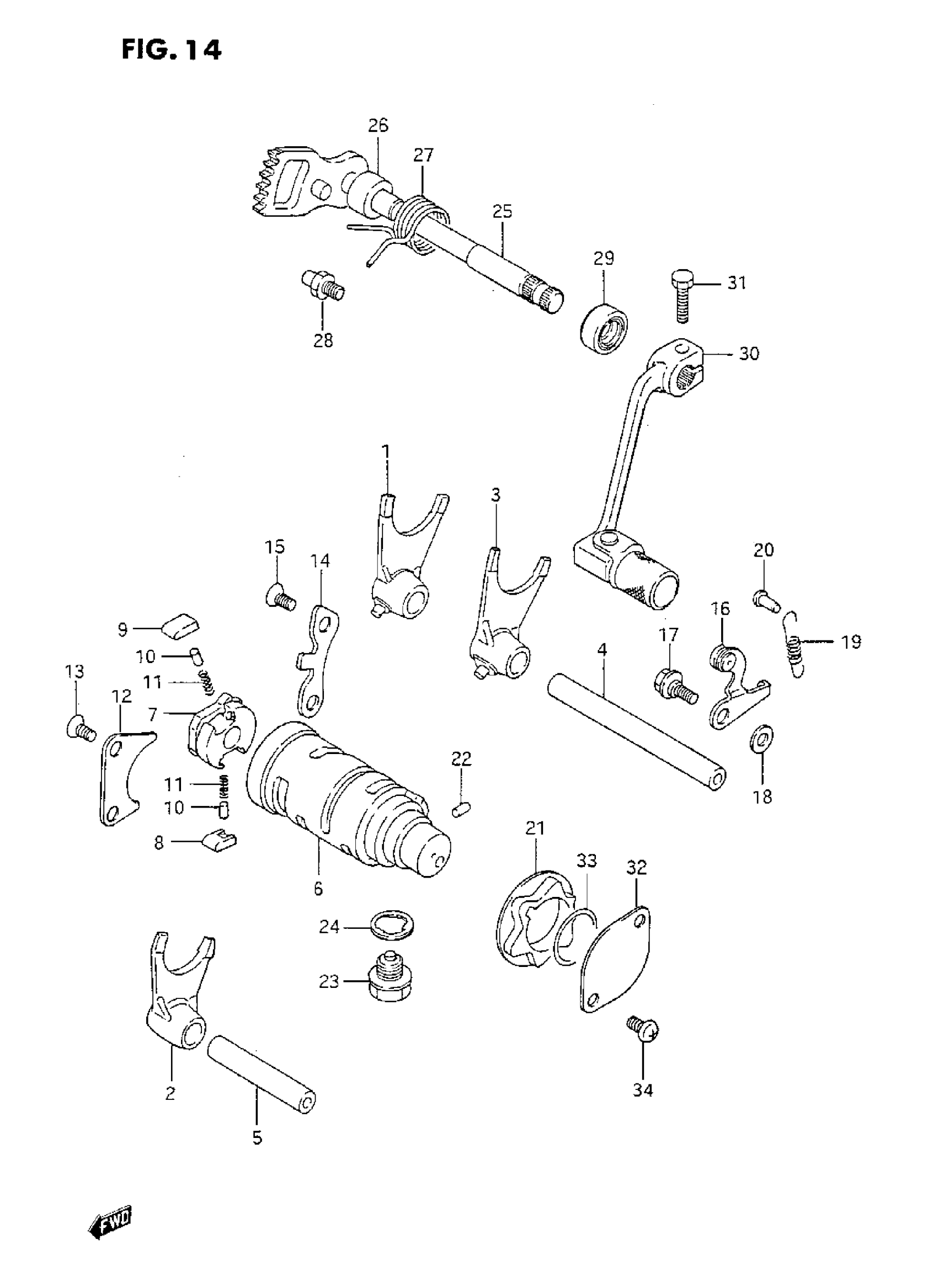

Suzuki DR200 (1987) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-42A01.

25211-42A02

Unavailable

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-42A01.

25221-42A02

Unavailable

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-42A01.

25231-42A02

Unavailable

4

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$20.33

5

SHAFT, NO.1 This part replaces 25421-35401.

25421-35410

$26.50

6

CAM, GEAR SHIFTING

25310-42A00

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1 | MODEL G/H This part replaces 25323-34200.

25323-34201

$6.61

8

PAWL, GEAR SHIFT NO.1 | MODEL J

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2 | MODEL G/H This part replaces 25324-34200.

25324-34201

$6.80

9

PAWL, GEAR SHIFT NO.2 | MODEL J

25324-34201

$6.80

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.83

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.83

16

STOPPER, GEAR SHIFT CAM This part replaces 25350-42A00.

25350-42A01

Unavailable

17

BOLT This part replaces 09111-06019.

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING This part replaces 09443-08041.

09443-10036

Unavailable

20

HOOK

09223-04001

$1.83

21

PLATE, STOPPER

25381-04700

Unavailable

22

PIN This part replaces 06211-04063.

04221-04069

$2.30

23

PLUG This part replaces 09247-14012.

09247-14026

$3.38

24

WASHER

09168-14004

$1.69

25

SHAFT, GEAR SHIFTING

25510-05201

$101.80

26

SPACER

09180-12068

$2.63

27

SPRING

09444-26001

$6.38

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

30

LEVER ASSY, GEAR SHIFT This part replaces 25600-37211.

25600-42A00

$46.45

31

BOLT, GEAR SHIFT LINK This part replaces 09100-06100.

01500-0620A

$1.77

32

CAP

11451-46000

$3.80

33

O RING, FAIL SAFE SWITCH This part replaces 09280-22014.

37941-33D00

Unavailable

34

SCREW This part replaces 02112-05088.

02112-05087

$1.45
