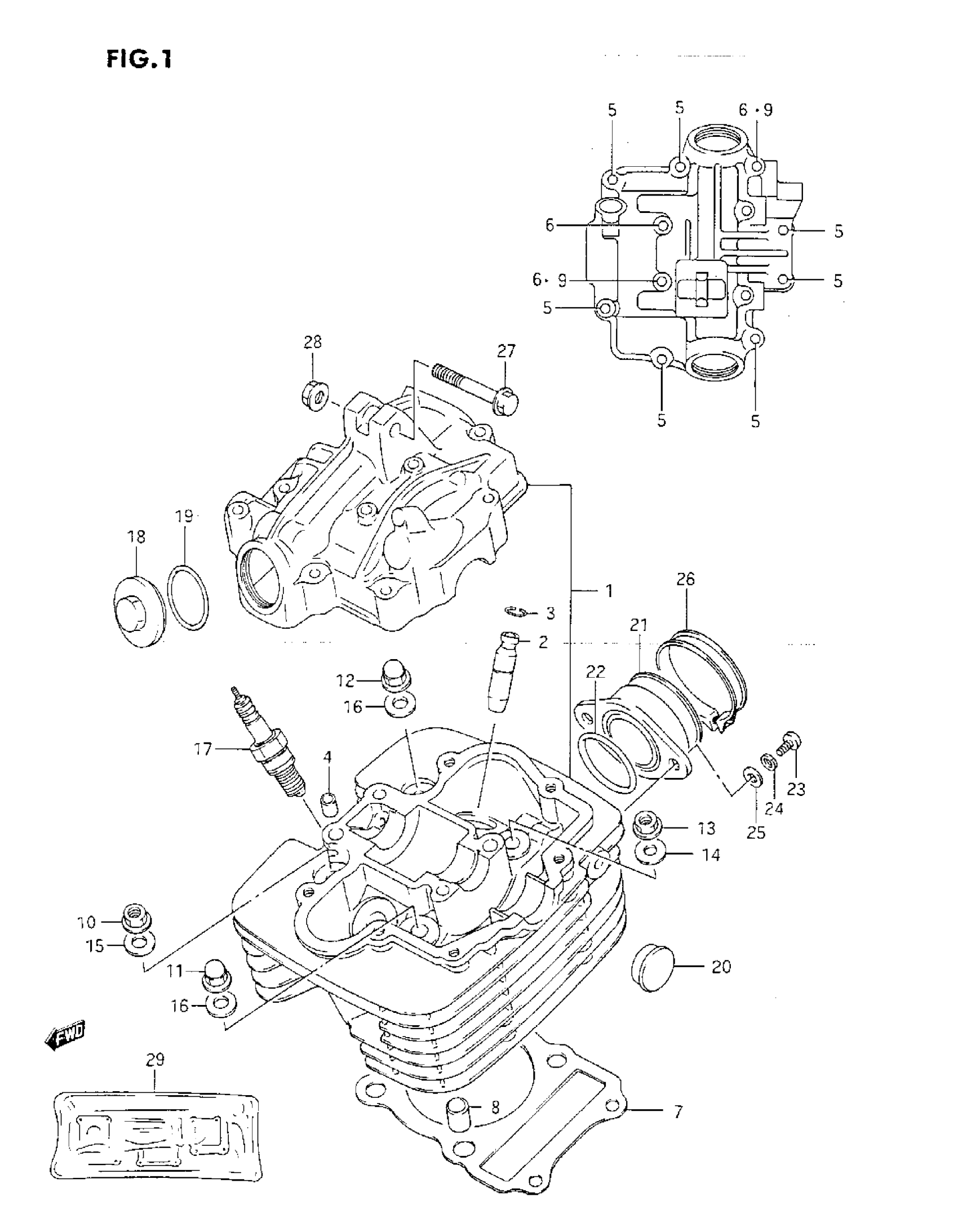

Suzuki DR200 (1987) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | MODEL G This part replaces 11100-42A02.

11100-42A03

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 11100-42A10.

11100-42A11

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$30.22

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

6

BOLT This part replaces 01517-06605.

01550-0660A

$2.80

7

GASKET, CYLINDER HEAD

11141-18A00

$13.01

8

PIN

04211-11169

$1.77

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

10

NUT This part replaces 08316-16085.

08316-1008B

$2.65

11

NUT This part replaces 09159-08064.

09159-08049

$4.25

12

NUT This part replaces 09159-08047.

09159-08049

$4.25

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

14

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$1.95

15

WASHER

09160-08039

$1.95

16

GASKET This part replaces 09168-08012.

09168-08013

$2.80

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$2.95

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$4.60

18

CAP, INSPECTION | MODEL G

11175-05260

Unavailable

18

CAP, INSPECTION | MODEL H/J

11175-42A00

$10.79

19

.O RING (D:3,ID:29.5)

09280-30001

$1.70

20

PLUG, HEAD

09241-22002

$4.73

21

PIPE, INTAKE | ~E.NO.104778 This part replaces 13110-42A00.

13110-42A01

Unavailable

21

PIPE, INTAKE | E.NO.104779~

13110-42A01

Unavailable

22

O RING | E.NO.104779~ This part replaces 13118-42A01.

09280-35001

$1.80

23

SCREW This part replaces 02112-06164.

02112-0616A

$1.43

24

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

25

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

26

CLAMP

09402-48208

$4.19

27

BOLT,8X50 | MODEL G/J This part replaces 09103-08082.

09103-08395

$3.36

27

BOLT (8X50) | MODEL H

09103-08081

$4.03

28

NUT | MODEL G/J This part replaces 08319-31085.

08319-3108A

$2.31

28

NUT | MODEL H

08319-31087

$2.31

29

NO DESCRIPTION AVAILABLE | OPT ~E.NO.104778 This part replaces 11400-42810.

11400-42818

Unavailable

29

NO DESCRIPTION AVAILABLE | OPT E.NO.104779~ This part replaces 11400-42811.

11400-42818

Unavailable
