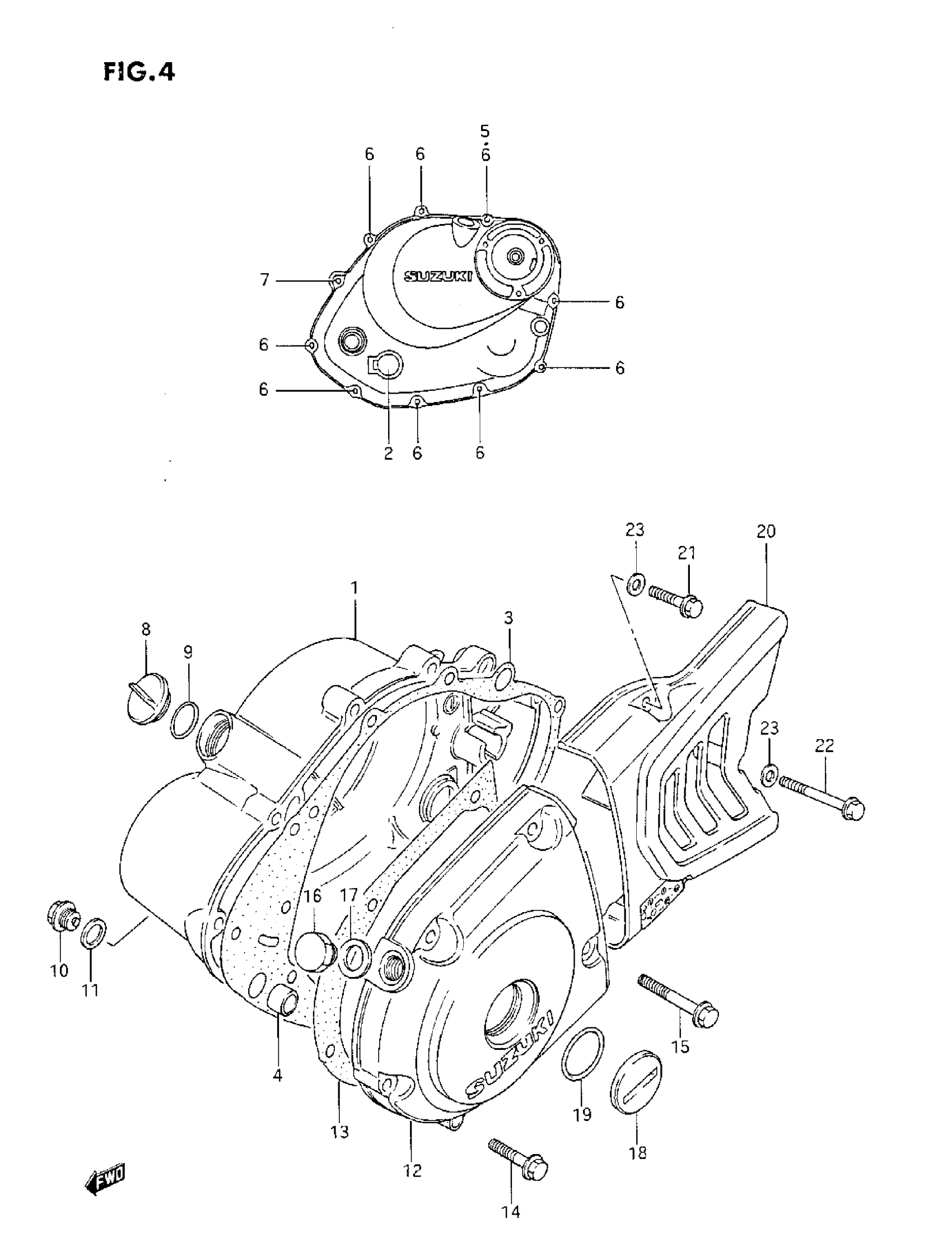

Suzuki DR200 (1987) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL G

11340-42A00

Unavailable

1

COVER, CLUTCH | MODEL H/J

11340-42A10

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$15.78

3

.GASKET, CLUTCH COVER This part replaces 11482-05200.

11482-05211

$11.74

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

6

BOLT This part replaces 01547-06304.

01547-06307

$2.06

7

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

8

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.76

9

O-RING

09280-17003

$1.64

10

PLUG, OIL CHECK

09247-14015

$4.83

11

GASKET

09168-14004

$1.69

12

COVER, MAGNETO | MODEL G

11351-05250

Unavailable

12

COVER, MAGNETO | MODEL H/J

11351-05260

Unavailable

13

.GASKET, MAGNETO COVER This part replaces 11483-05200.

11483-05210

$6.93

14

BOLT This part replaces 01547-06304.

01547-06307

$2.06

15

BOLT This part replaces 01547-06404.

01547-0640B

$2.74

16

PLUG, T.D.C

09247-12103

$2.80

17

GASKET

09168-12002

$1.59

18

PLUG | MODEL G

09259-26005

Unavailable

18

PLUG | MODEL H/J This part replaces 09259-26002.

09259-26002-XC0

$14.53

19

O-RING

09280-22008

$2.10

20

COVER, ENGINE SPROCKET | MODEL G This part replaces 11361-42A00.

11361-42A10

Unavailable

20

COVER, ENGINE SPROCKET | MODEL H/J

11361-42A10

Unavailable

21

BOLT This part replaces 01547-05255.

01547-0525B

$3.27

22

BOLT This part replaces 01547-05455.

01547-0545B

$5.61

23

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.83
