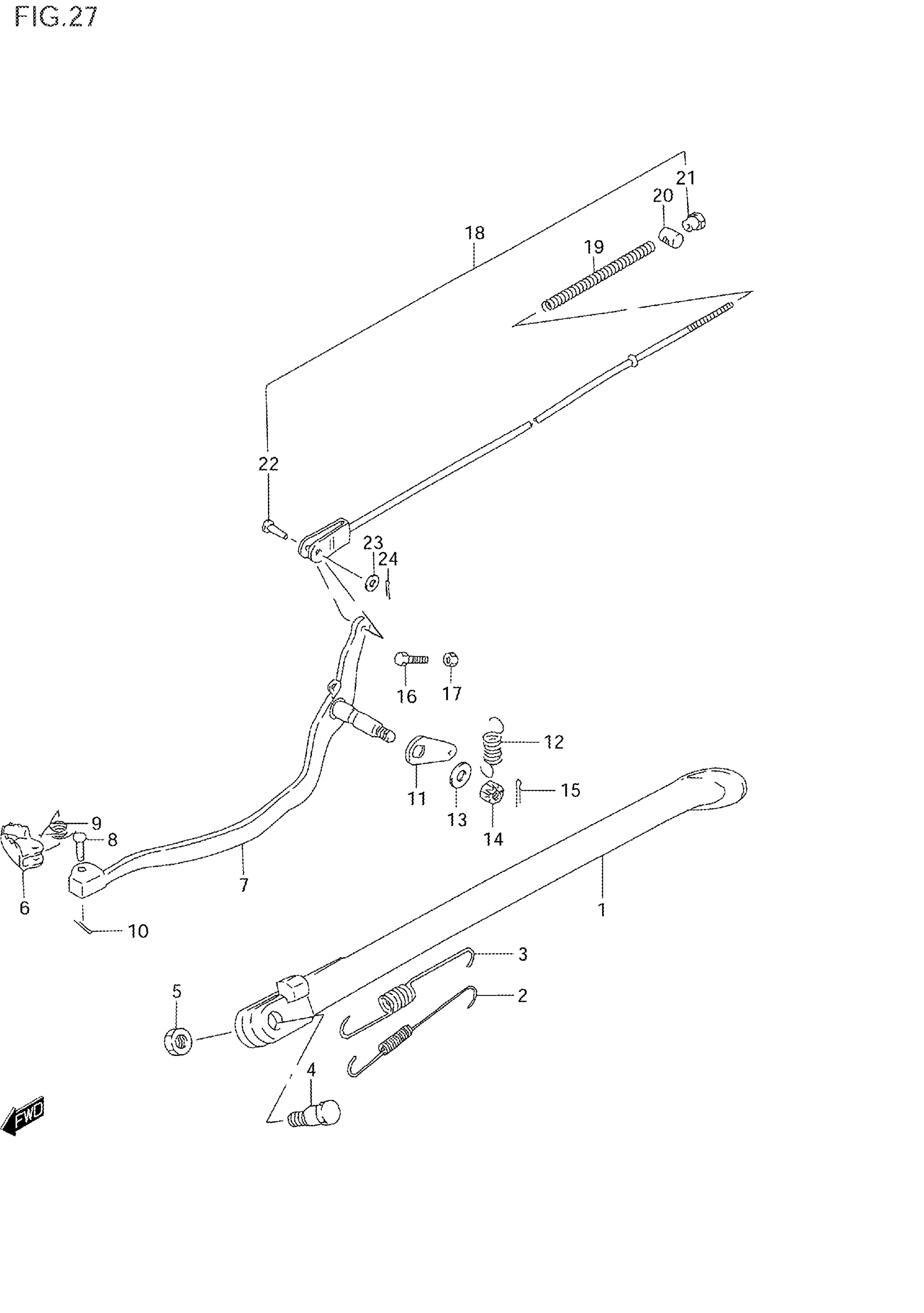

Suzuki DR125SE (1996) STAND Diagram

#

Description
Price

1

STAND, PROP (BLACK) This part replaces 42310-44A32-019.

42310-44A33-019

$101.87

2

SPRING, INNER

09443-12035

$10.32

3

SPRING, OUTER

09443-20003

$17.73

4

BOLT This part replaces 09111-10019.

09111-10047

$3.76

5

NUT

09159-10097

$5.10

6

PEDAL, BRAKE

43110-14130

$18.23

7

ARM, BRAKE PEDAL This part replaces 43120-44A11.

43120-44A12

$83.00

8

PIN

09200-06038

$2.58

9

SPRING

09444-11005

$2.80

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

11

ARM, BRAKE RETURN SPRING

43128-38200

$3.80

12

SPRING

09443-14002

$2.21

13

THRUST WASHER

08211-08202

$2.29

14

NUT This part replaces 08314-40083.

08314-4008B

$3.30

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

16

BOLT (6X23)

09100-06009

$1.79

17

NUT This part replaces 08310-00063.

08310-0006A

$1.83

18

ROD ASSY, REAR BRAKE | Includes Item(s) 19 - 24

43300-44A03

Unavailable

19

SPRING

09440-09004

$2.06

20

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.13

21

.NUT This part replaces 09150-06009.

09150-06010

$2.80

22

PIN

09200-06013

$2.05

23

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
