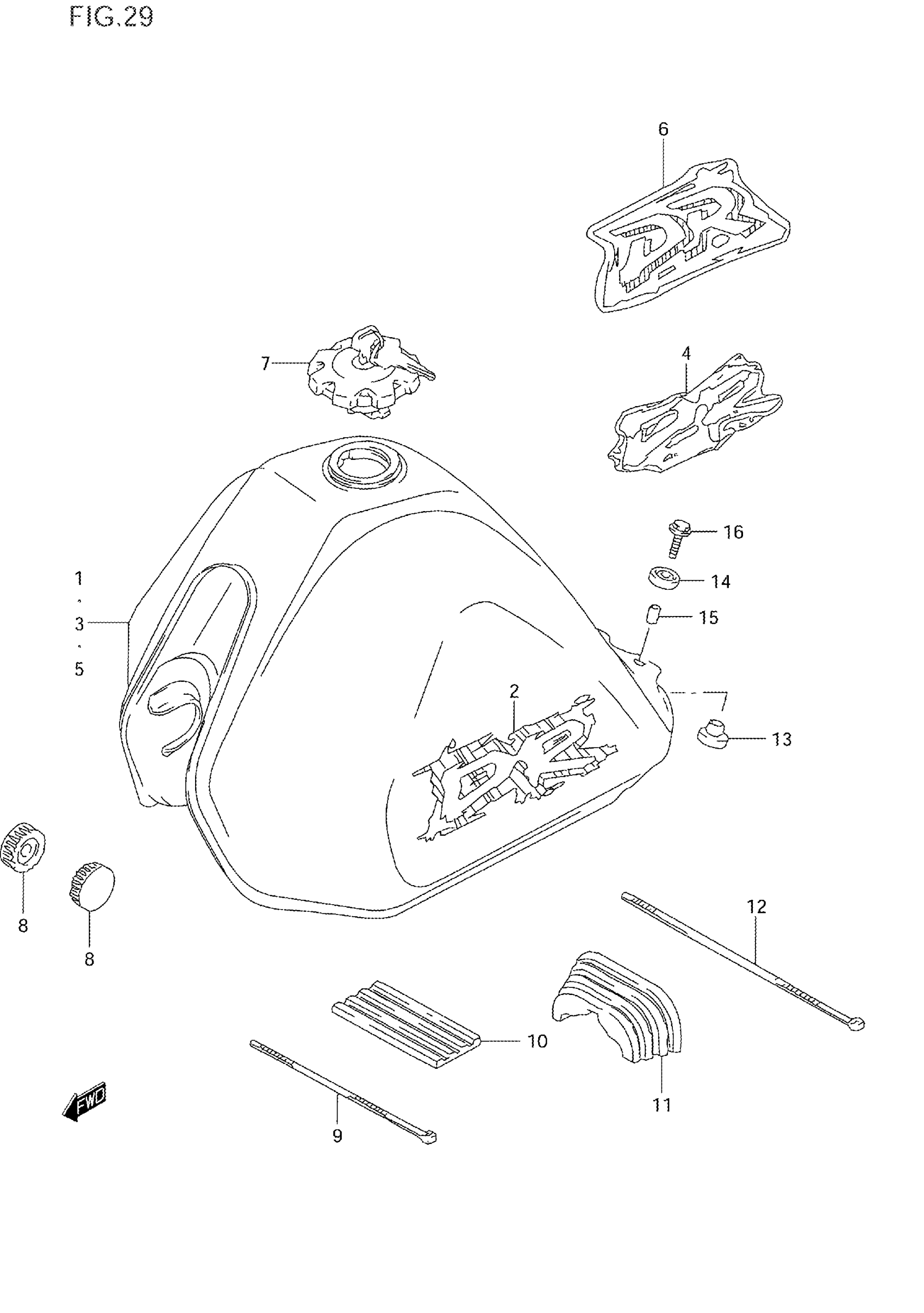

Find the part on the Fuel Tank diagram for your 1996 Suzuki DR125SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR125SE Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-44AA0-28X.

44100-44AA2-28X

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R; Includes Item(s) 2 This part replaces 44100-44AB0-28X.

44100-44AB2-28X

1
Out of stock

2

EMBLEM SET, FUEL TANK | MODEL R

68120-12E00-1WN

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44100-44AG0-28X.

44100-44AG2-28X

1
Out of stock

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL S; Includes Item(s) 4 This part replaces 44100-44AJ0-28X.

44100-44AJ2-28X

1
Out of stock

4

EMBLEM SET, FUEL TANK | MODEL S

68120-14E00-D1R

1
Out of stock

5

TANK ASSY,FUEL | MODEL T This part replaces 44100-44AL0-30H.

44100-44AL1-30H

1
Out of stock

5

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL T; Includes Item(s) 6

44100-44AN0-30H

1
Out of stock

6

EMBLEM SET, FUEL TANK | MODEL T

68120-44A00-Z65

1
Out of stock

7

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

1
Out of stock

7

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

1
Out of stock

8

CUSHION

09329-10016

2

$3.00

In stock

9

CLAMP | MODEL R This part replaces 09407-20405.

09407-25402

1
Out of stock

9

CLAMP | MODEL S/T This part replaces 09407-20404.

09407-25402

1
Out of stock

10

CUSHION, FUEL TANK UPPER

44541-14500

1
Out of stock

11

CUSHION, FUEL TANK REAR

44542-14A00

1
Out of stock

12

CLAMP

09407-30402

1

$5.25

In stock

13

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

14

CUSHION

09320-14013

2
Out of stock

15

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

16

BOLT This part replaces 01570-06303.

01570-0630A

2
Out of stock
