Partiron

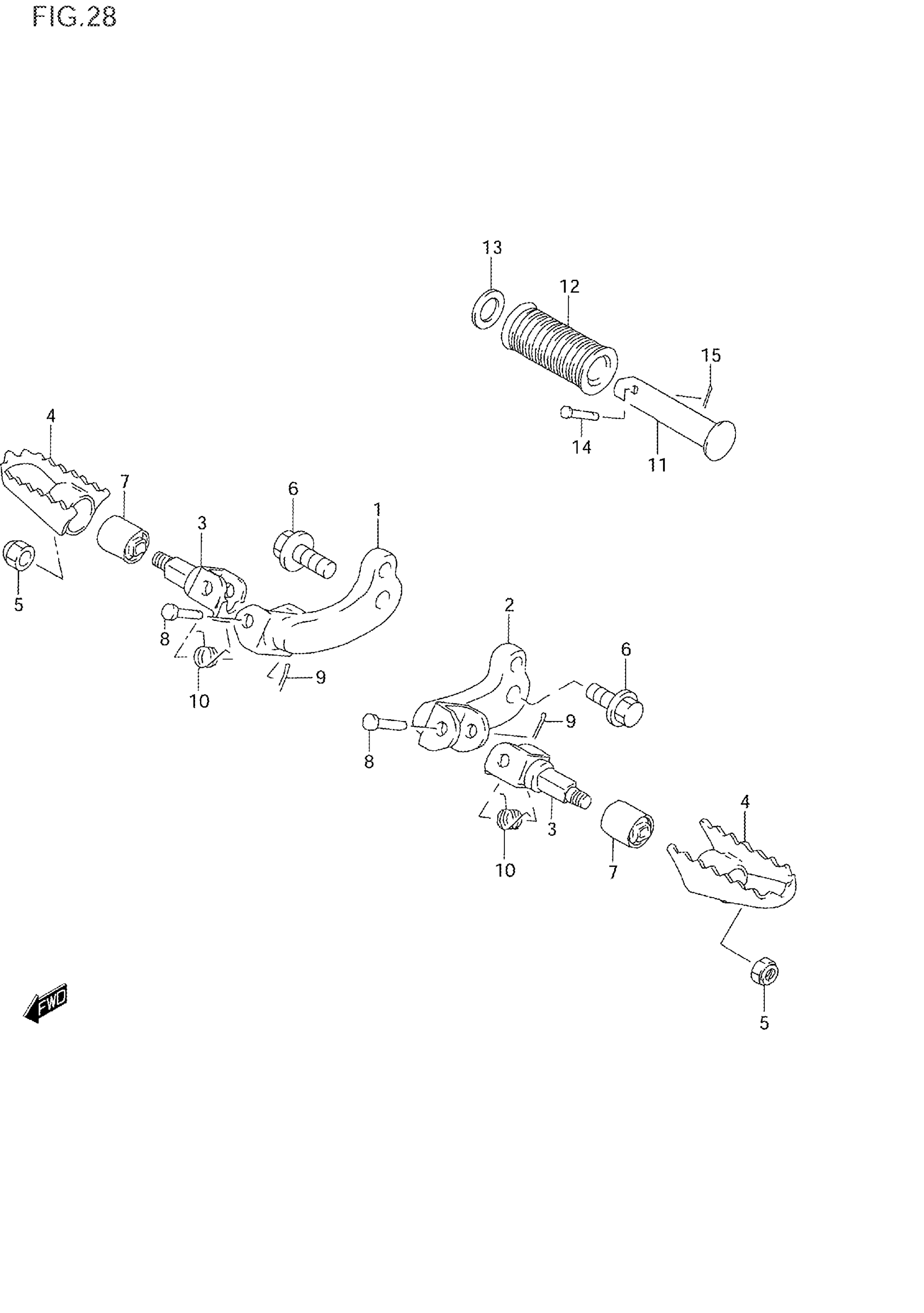

Suzuki DR125SE (1996) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH (BLACK

43510-44A03-019

Unavailable

2

BAR, FRONT FOOTREST LH (BLACK

43520-44A03-019

Unavailable

3

BRACKET, FRONT FOOTREST

43530-44A02

$57.92

4

FOOTREST, FRONT (BLACK)

43550-44A01-019

$42.37

5

BOLT (12X25)

09103-12047

$6.57

6

BUSH

09319-10053

$41.73

7

NUT This part replaces 08319-31103.

08319-3110A

$2.73

8

PIN

09200-08002

$1.97

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

10

SPRING

09448-14037

$2.90

11

BAR, FOOTREST RUBBER

43610-03001

$6.14

12

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$6.60

13

WASHER This part replaces 09160-19006.

09160-19024

$2.76

14

PIN | MODEL R/S

09200-06010

$1.87

14

PIN | MODEL T

09200-06033

$2.87

15

COTTER PIN | MODEL R This part replaces 04111-20208.

04111-2020A

$1.22

15

.COTTER PIN | MODEL S/T This part replaces 04111-20158.

04111-2015A

$1.22
