1987 Suzuki DR125 Stand-Rear Brake Diagram

← All diagrams

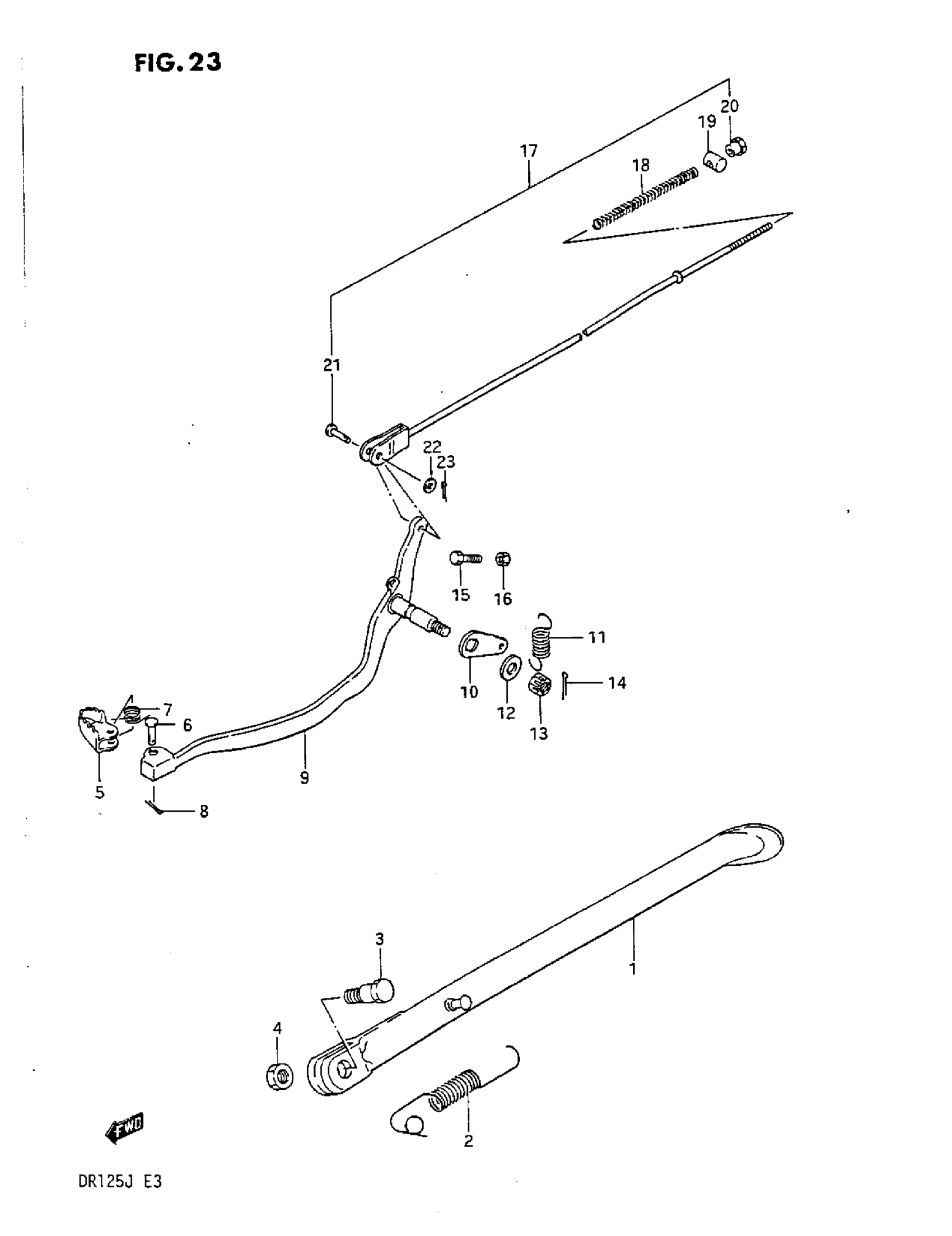

Find the part on the Stand-Rear Brake diagram for your 1987 Suzuki DR125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR125 Stand-Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 42310-44A00-19F.

42310-44A00-019

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 42310-44A00-13L.

42310-44A00-019

1
Out of stock

1

STAND, PROP (BLUE) | MODEL J

42310-44A00-34S

1
Out of stock

2

SPRING

09443-17007

1

$3.86

In stock

3

1

$4.06

In stock

3

1

$4.06

In stock

4

1

$2.35

In stock

5

PEDAL, BRAKE

43110-14130

1

$18.23

In stock

6

PIN

09200-06038

1

$2.58

In stock

7

1

$2.92

In stock

8

1

$1.31

In stock

9

NO DESCRIPTION AVAILABLE This part replaces 43120-44A01.

43120-44A03

1
Out of stock

10

1

$3.80

In stock

11

SPRING

09443-14002

1

$2.56

In stock

12

WASHER

08211-08202

1

$2.50

In stock

13

1

$3.30

In stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

15

BOLT (6x27)

09100-06009

1

$2.07

In stock

16

1

$1.82

In stock

17

ROD ASSY, REAR BRAKE This part replaces 43300-44A02.

43300-44A03

1
Out of stock

18

SPRING

09440-09004

1
Out of stock

19

.PIN (13X18) This part replaces 09209-13005.

09209-13018

1
Out of stock

20

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

21

PIN

09200-06013

1

$2.38

In stock

22

1

$1.84

In stock

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
