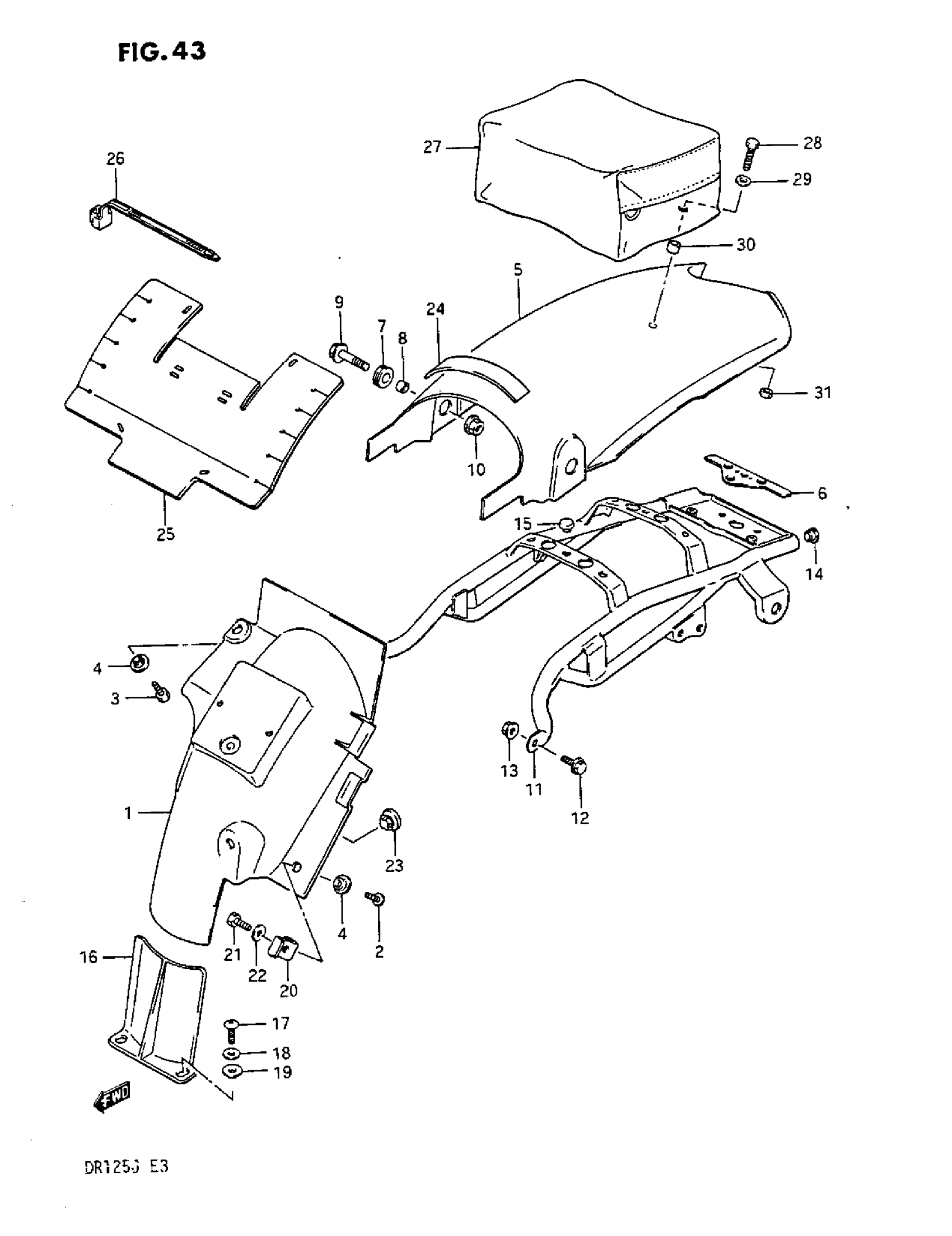

Find the part on the Rear Fender diagram for your 1987 Suzuki DR125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR125 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-42A10

1
Out of stock

2

1

$1.35

In stock

3

1

$1.90

In stock

4

2

$2.35

In stock

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63113-13A01-163.

63113-13X00-13L

1
Out of stock

5

BODY, REAR FENDER REAR (YELLOW) | MODEL H/J

63113-13A01-25Y

1
Out of stock

6

CUSHION

63191-13A00

1
Out of stock

7

2

$2.05

In stock

8

2

$2.81

In stock

9

BOLT | MODEL G This part replaces 01517-08304.

01550-0830A

2
Out of stock

9

2

$3.49

In stock

10

NUT

08319-31087

2

$2.48

In stock

11

REINFORCEMENT

63120-42A31

1
Out of stock

13

NUT | MODEL G This part replaces 08319-31085.

08319-3108A

1
Out of stock

13

NUT | MODEL H/J

08319-31087

1

$2.48

In stock

14

2

$3.70

In stock

15

CUSHION

09321-06016

1
Out of stock

16

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

1
Out of stock

17

SCREW

02142-06167

1
Out of stock

18

WASHER (6.5)

09160-06019

1

$1.49

In stock

19

1

$2.83

In stock

20

BRACKET, LOW

63242-44A00

1
Out of stock

21

1

$2.10

In stock

22

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

1
Out of stock

23

1

$1.80

In stock

24

CUSHION

63191-44A00

1
Out of stock

25

MUD FLAP

63412-44A00

1
Out of stock

26

CLAMP

09407-14403

6
Out of stock

27

NO DESCRIPTION AVAILABLE | MODEL G, OPT This part replaces 94900-42810-7TR.

94900-42811-7TR

1
Out of stock

27

BAG,SEAT TAIL | MODEL H/J, OPT This part replaces 94900-42810-9DD.

94900-42811-9DD

1
Out of stock

28

2

$2.10

In stock

29

2

$1.90

In stock

30

SPACER (6.5X9X9) | OPT This part replaces 09180-06011.

09180-06263

2
Out of stock

31

2

$2.18

In stock
