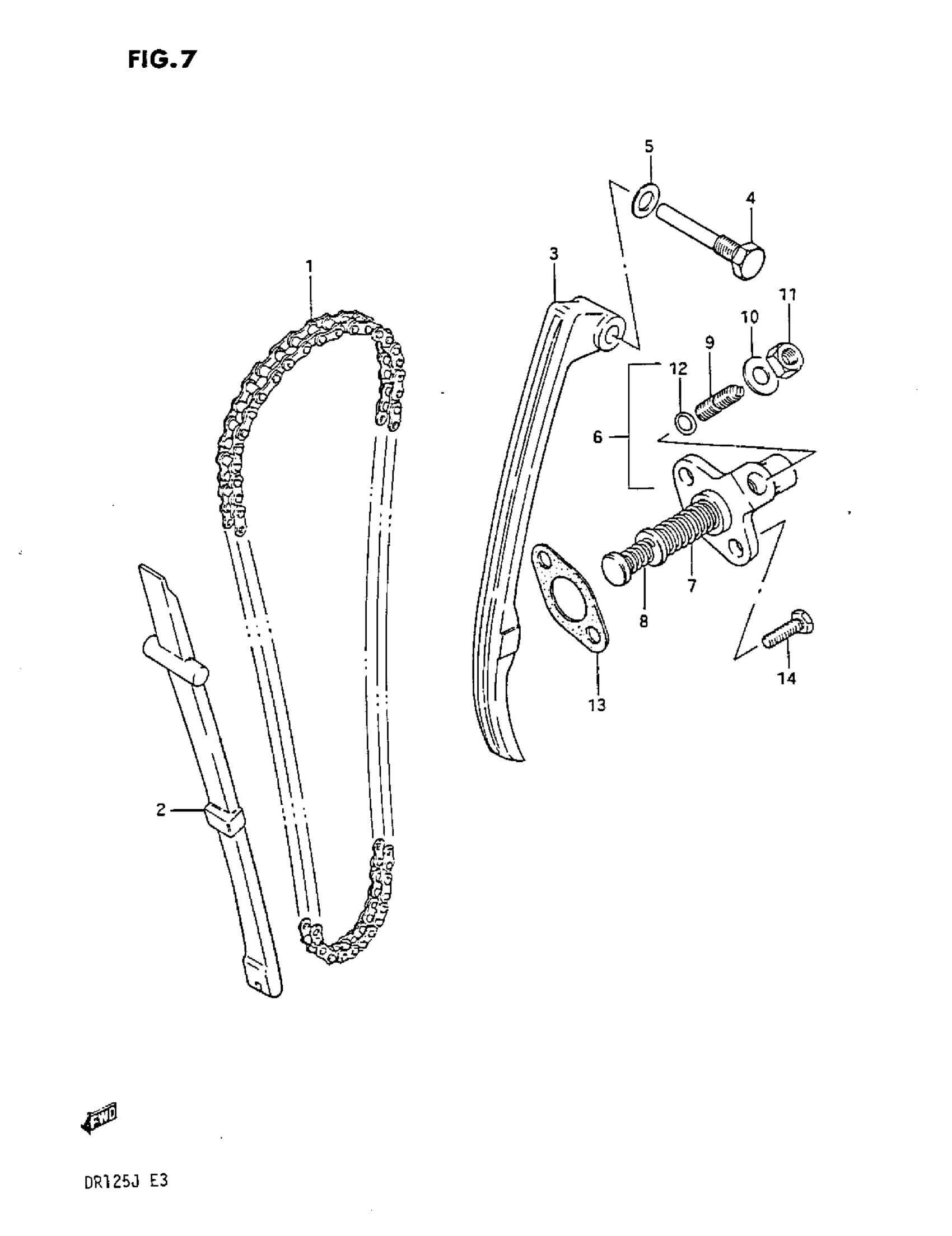

Suzuki DR125 (1987) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE (98LE) | 98LE

12760-44A00

$98.47

2

GUIDE, CAM CHAIN

12771-05200

$49.30

3

TENSIONER, CAM CHAIN This part replaces 12811-05200.

12811-05221

$42.75

4

BOLT

12812-32410

$4.26

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY,T This part replaces 12830-05200.

12830-0520V

Unavailable

7

SPRING

09440-12030

$2.72

8

SPRING

09440-09018

$2.88

9

SCREW

12838-45001

$9.50

10

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

11

NUT This part replaces 08310-11085.

08310-0008A

$1.86

12

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

13

.GASKET, TENSIONER ADJUSTER This part replaces 12837-32400.

12837-32410

$2.75

14

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.77
