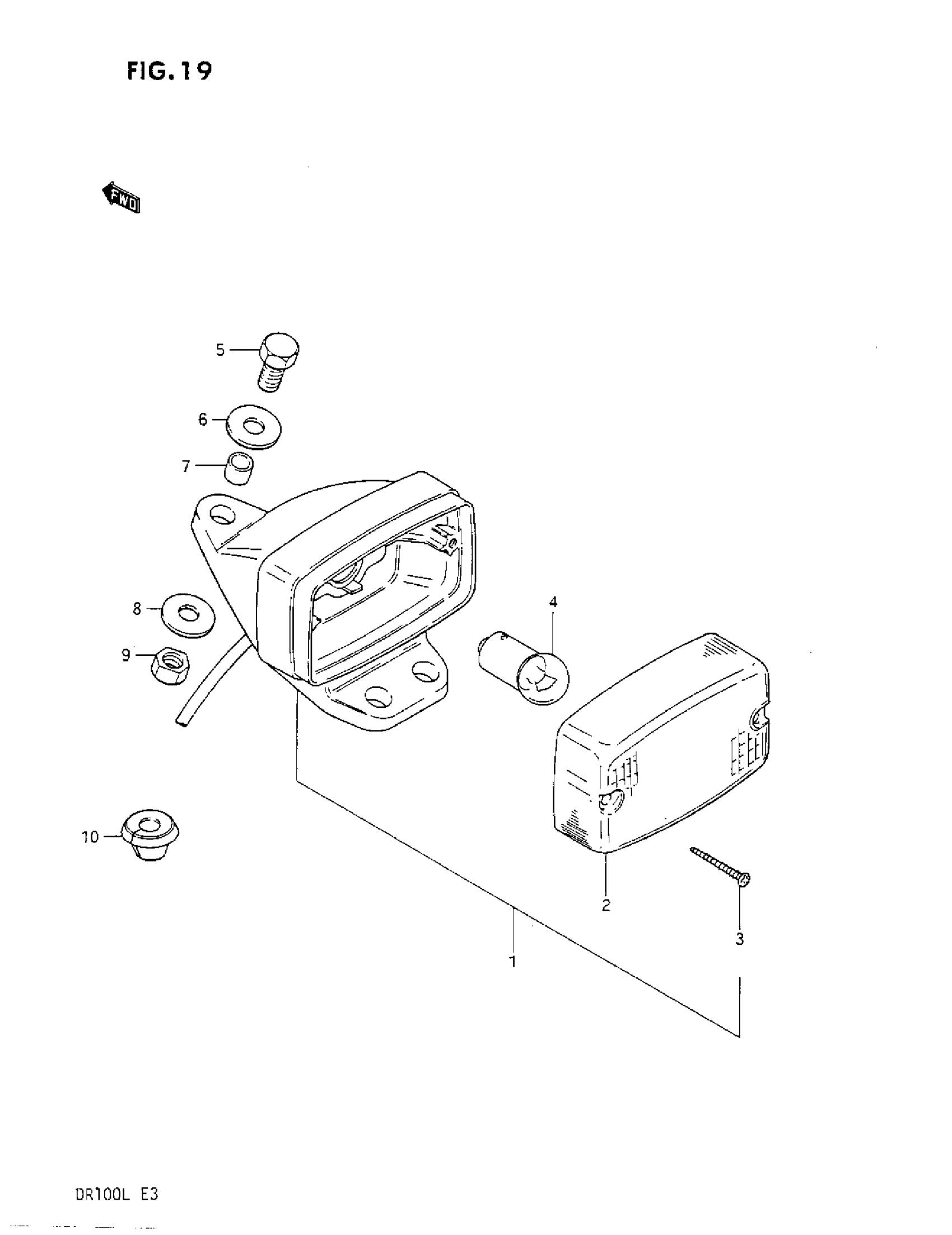

Suzuki DR100 (1987) TAIL LAMP Diagram

#

Description

Price

1

LAMP ASSY, TAIL

35710-03431

Unavailable

2

LENS

35712-30410

$12.03

3

SCREW

35623-35300

$2.17

4

BULB (6V, 5W)

09471-06049

$2.80

5

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.82

6

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.97

7

SPACER (6.1X9X7.5)

09180-06038

$1.86

8

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.97

9

NUT This part replaces 08310-12066.

08310-0006A

$1.89

10

GROMMET

09308-07004

$2.58
