1987 Suzuki DR100 Rear Fender Diagram

← All diagrams

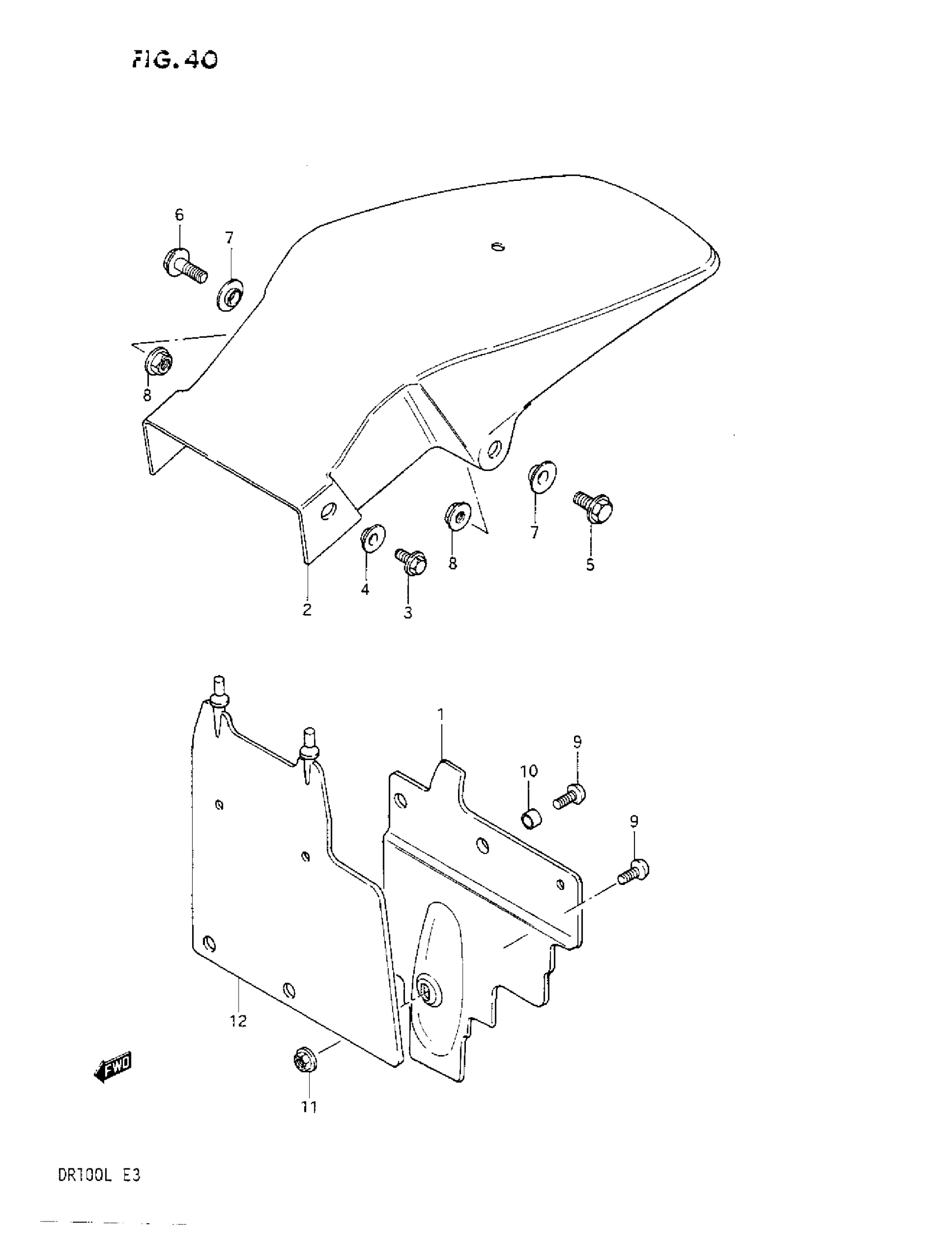

Find the part on the Rear Fender diagram for your 1987 Suzuki DR100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR100 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR FENDER, FRONT

63112-05211

1
Out of stock

2

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 63111-05250-163.

63111-05250-13L

1
Out of stock

2

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 63111-05250-25Y.

63111-05250-13L

1
Out of stock

2

FENDER, REAR (WHITE) | MODEL K/L

63111-05250-30H

1
Out of stock

3

BOLT This part replaces 01517-06167.

01550-06167

2
Out of stock

4

2

$2.35

In stock

5

BOLT This part replaces 01517-08205.

01550-0820A

1
Out of stock

6

BOLT This part replaces 01517-08254.

01550-0825A

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 09169-08026.

09169-08026-XC0

2
Out of stock

8

NUT

08319-31087

2
Out of stock

9

SCREW This part replaces 02152-06127.

02112-06127

3
Out of stock

10

2

$2.22

In stock

11

NUT

08319-31067

2
Out of stock

12

MUD FLAP, FRONT

63411-05250

1
Out of stock
