2018 Suzuki DR-Z70L8 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2018 Suzuki DR-Z70L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

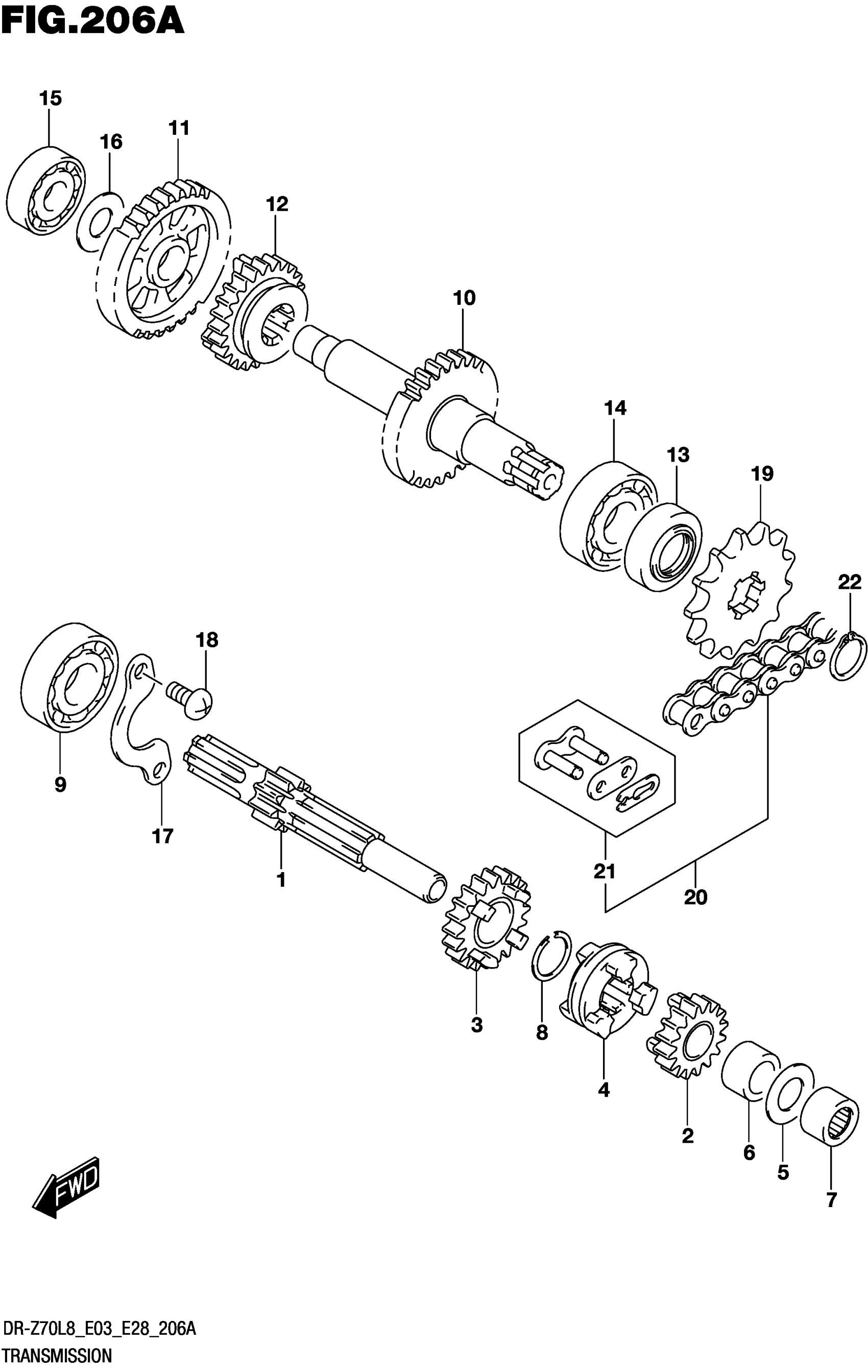

2018 Suzuki DR-Z70L8 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER,NT:10 (NT:10)

24121-02A02

1
Out of stock

2

GEAR,2ND DRIVE,NT:16 (NT:16)

24220-02A01

1
Out of stock

3

GEAR,3RD DRIVE,NT:20 (NT:20)

24231-35404

1
Out of stock

4

WHEEL,SLIDING DOG

24421-14H00

1
Out of stock

5

WASHER (13X24X1.0)

09160-13006

1
Out of stock

6

SPACER,13X19X12.5 (13X19X12.5

09180-13008

1
Out of stock

7

BEARING,13X19X12 (13X19X12)

09263-13002

1
Out of stock

8

CIRCLIP

09380-17007

1
Out of stock

9

BEARING

08110-62030

1
Out of stock

10

SHAFT,DRIVE,NT:29 (NT:29)

24130-02A00

1
Out of stock

11

GEAR,1ST DRIVEN,NT:34 (NT:34)

24310-30A01

1
Out of stock

12

GEAR,3RD DRIVEN,NT:24 (NT:24)

24331-02A01

1
Out of stock

13

1

$8.87

In stock

14

BEARING

08110-62030

1
Out of stock

15

1

$9.97

In stock

16

WASHER

08211-12241

1

$2.23

In stock

17

RETAINER,BEARING

24741-09401

1
Out of stock

18

SCREW (6X12)

09125-06122

2
Out of stock

19

SPROCKET

27511-46000

1

$20.55

In stock

20

1

$42.83

In stock

21

.JOINT SET

27620-20911

1

$5.98

In stock

22

CIRCLIP This part replaces 08331-31166.

08331-31169

1
Out of stock
