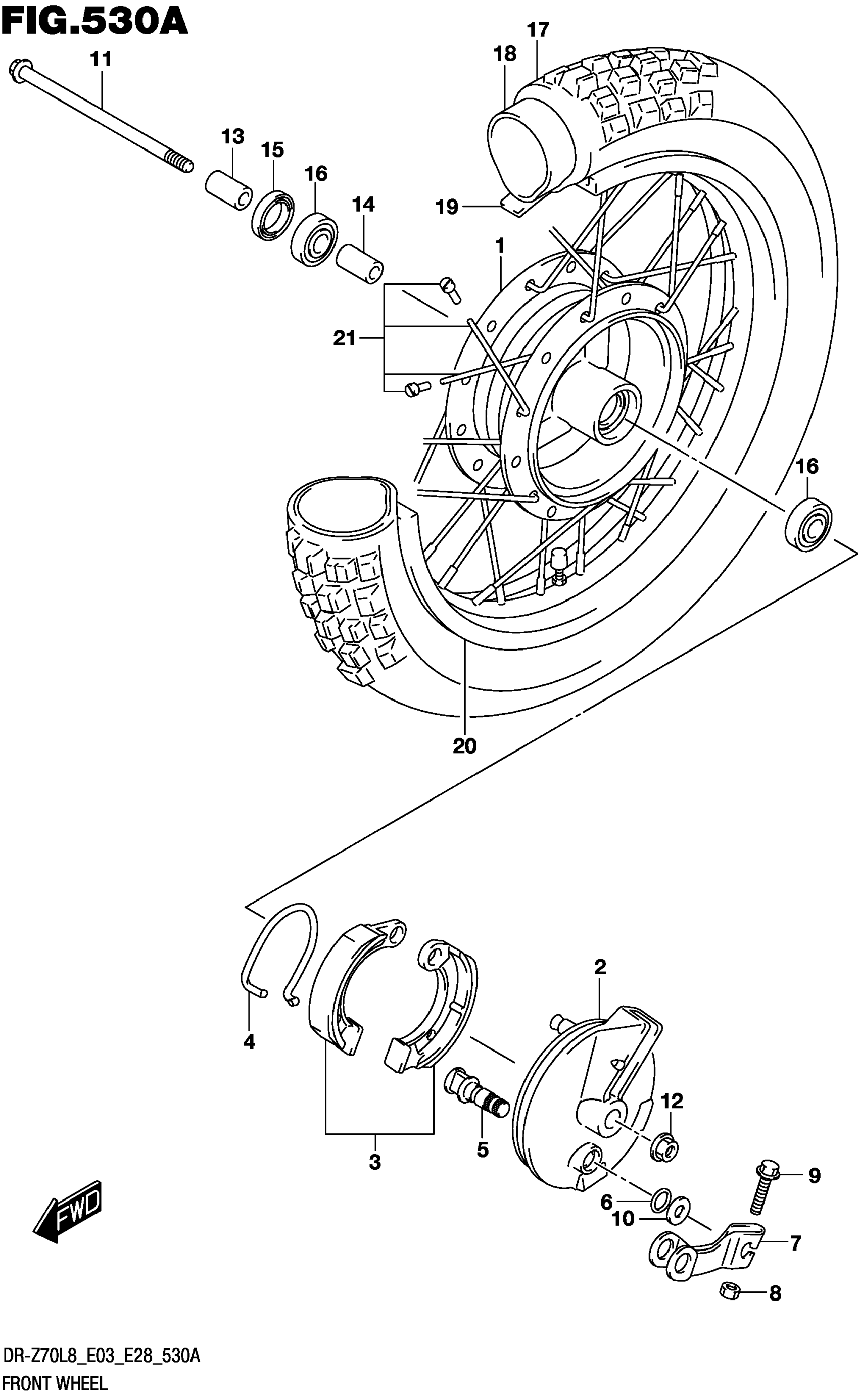

Find the part on the Front Wheel diagram for your 2018 Suzuki DR-Z70L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DR-Z70L8 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT WHEEL

54110-14H00

1
Out of stock

2

PANEL,FRONT BRAKE ANCHOR

54210-14H00

1
Out of stock

3

SHOE SET,BRAKE

54400-14870

1
Out of stock

4

SPRING,BRAKE SHOE

54424-14H00

1
Out of stock

5

CAM,BRAKE

54440-14H00

1
Out of stock

6

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

1
Out of stock

7

LEVER,BRAKE CAM

54451-14H00

1
Out of stock

8

NUT

08310-0005A

1
Out of stock

9

BOLT

01550-0525A

1
Out of stock

10

WASHER (10.5X18X1)

09160-10121

1
Out of stock

11

AXLE,FRONT

54711-14H00

1
Out of stock

12

NUT

08319-3112A

1
Out of stock

13

SPACER,FRONT AXLE,R

54741-14H00

1
Out of stock

14

SPACER,FRONT HUB BEARING

54731-14H00

1
Out of stock

15

SEAL,OIL,32X20X5 (32X20X5)

09282-20008

1
Out of stock

16

BEARING

08133-62017

2
Out of stock

17

TIRE (2.50-10 33J) | IX07S

55100-14H00

1
Out of stock

17

TIRE (2.50-10 33J) | IRC

55100-14H00

1
Out of stock

18

TUBE ASSY,WHEEL INNER This part replaces 55200-14H00.

55200-14H01

1
Out of stock

19

PROTECTOR,WHEEL INNER TUBE

55261-14H10

1
Out of stock

20

RIM,WHEEL (10X1.40)

55311-14H00

1
Out of stock

21

SPOKE SET,WHEEL

55320-14H00

1
Out of stock
