2018 Suzuki DR-Z70L8 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2018 Suzuki DR-Z70L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

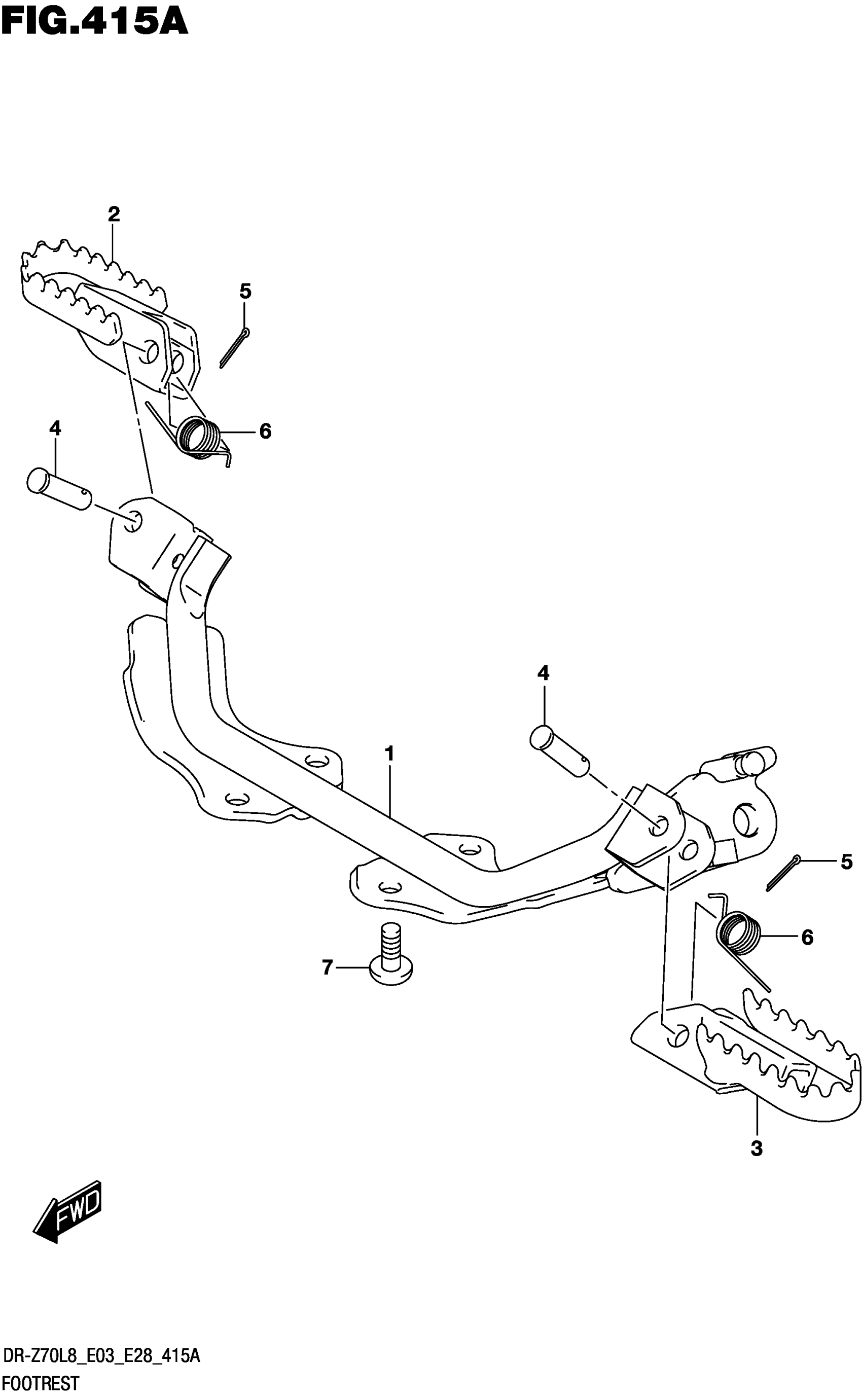

2018 Suzuki DR-Z70L8 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR,FRONT FOOTREST

43510-14H00

1
Out of stock

2

FOOTREST,FRONT RH (BLACK)

43550-46000-019

1
Out of stock

3

FOOTREST,FRONT LH (BLACK)

43560-46000-019

1
Out of stock

4

PIN

09200-08002

2
Out of stock

5

PIN

04111-2020A

2
Out of stock

6

SPRING

09448-14012

2
Out of stock

7

BOLT (8X16)

09106-08140

4
Out of stock
