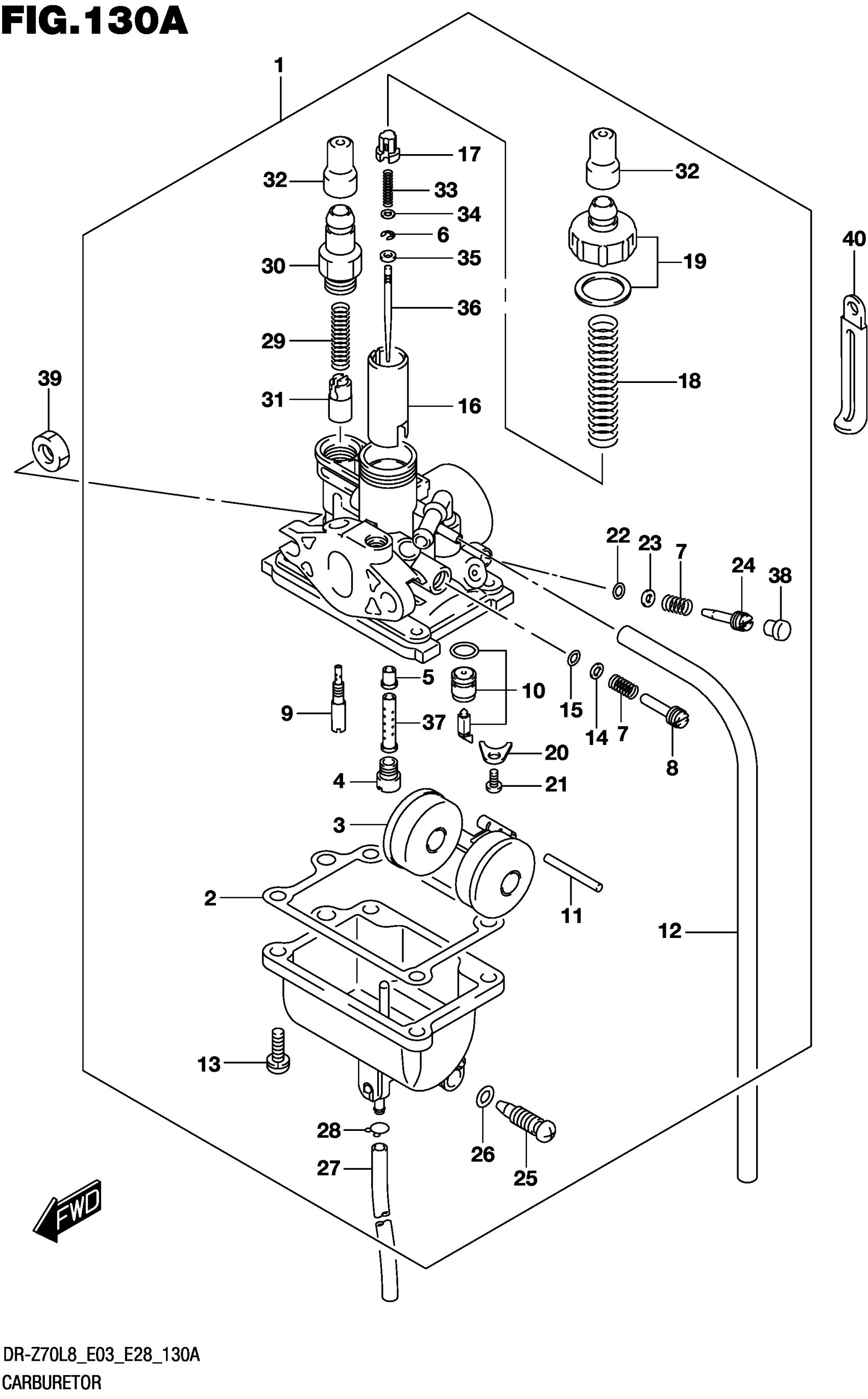

Suzuki DR-Z70L8 (2018) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-14H01.

13200-14H02

$172.33

2

.GASKET

13251-02410

$4.91

3

.FLOAT

13250-02500

$24.63

4

.JET

09491-57005

$20.02

5

.JET,NEEDLE (E-5M)

13341-14H00

$49.97

6

.E RING

13533-98410

$5.55

7

.SPRING

13268-35010

$4.09

8

.SCREW,THROTTLE STOP

13483-16A01

$18.33

9

.JET,PILOT (#17.5)

09492-17012

$26.53

10

.VALVE ASSY,NEEDLE

13370-36G00

$65.27

11

.PIN,FLOAT

13254-20010

$4.83

12

.HOSE | L:600->200 This part replaces 09352-50903-600.

09352-50006-600

$6.75

13

.SCREW

13601-04148

$2.80

14

.WASHER

13291-35010

$4.72

15

.O-RING

13295-33010

$4.09

16

.VALVE,PISTON

13551-36G00

$54.60

17

.HOLDER

13418-12F40

$8.13

18

.SPRING

13268-36G00

$5.75

19

.CAP

13261-36G00

$42.37

20

.PLATE,NEEDLE VALVE FITTING

13373-46710

$6.77

21

.SCREW

02112-0306B

$1.61

22

O-RING This part replaces 13295-29900.

13295-29901

$3.97

23

.WASHER (14X17)

13291-29900

$1.87

24

.ADJUSTER (2,0)

13269-43G00

$14.73

25

.SCREW,DRAIN

13247-09G10

$6.77

26

.O RING

13278-02330

$2.80

27

.HOSE (3X7X600) | L:600->250 This part replaces 09355-30705-600.

09355-30001-600

$7.83

28

.CLIP This part replaces 13529-98010.

13529-98011

$3.48

29

.SPRING

13417-37200

$3.35

30

.HOLDER,GUIDE

13418-14H00

Unavailable

31

.PLUNGER,STARTER

13411-22G00

$21.62

32

.CAP

13416-26F00

$5.00

33

.SPRING

13481-23F00

$6.40

34

.WASHER

13382-23F00

$5.02

35

.RING

13387-23F00

$6.83

36

.NEEDLE,JET

13383-14H00

$21.62

37

.PIPE

13385-14H10

$21.48

38

.PLUG

13281-05A00

$4.21

39

NUT

09140-06027

$2.97

40

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
