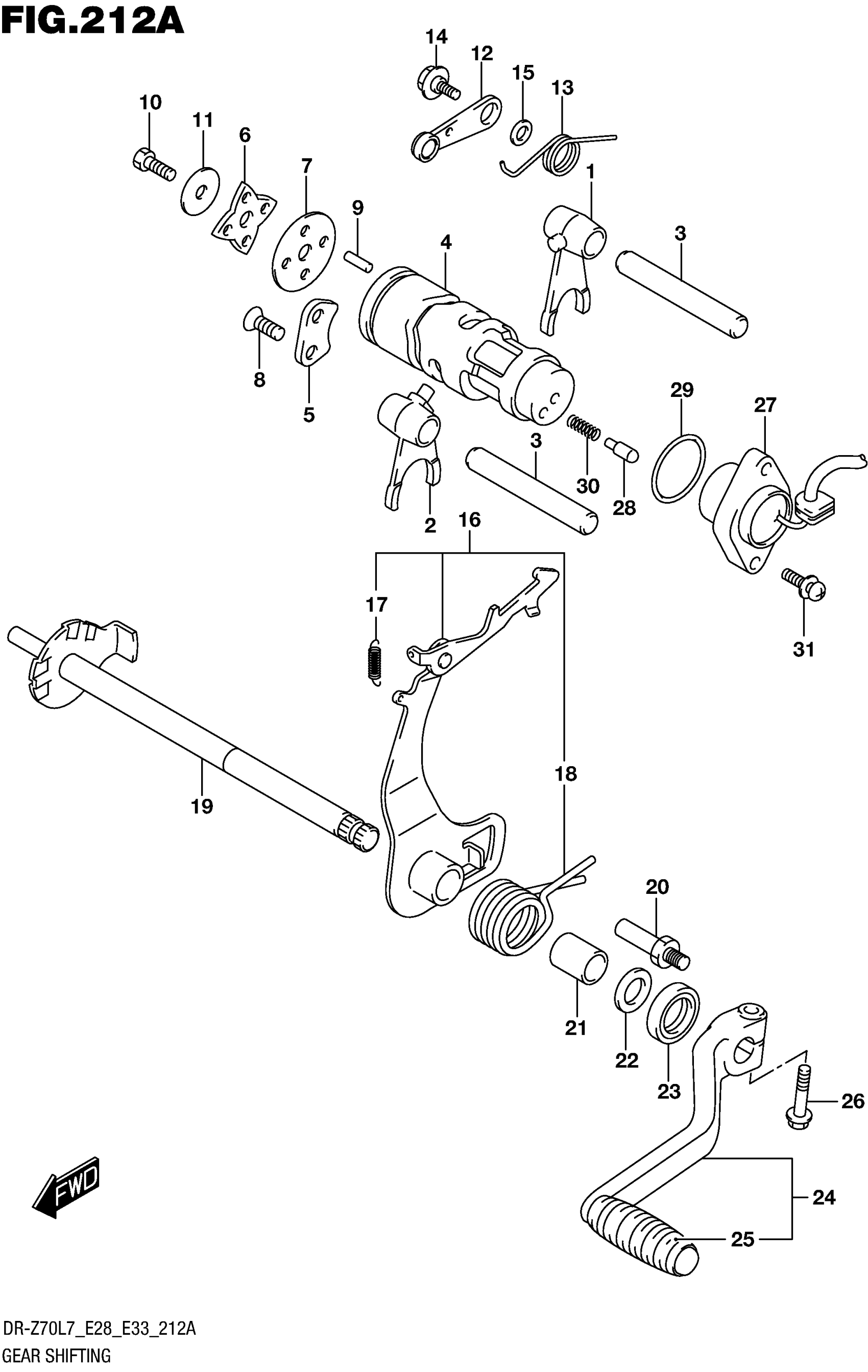

Find the part on the Gear Shifting diagram for your 2017 Suzuki DR-Z70L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR-Z70L7 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-09400

1
Out of stock

2

FORK, GEAR SHIFT NO.2

25221-02A00

1
Out of stock

3

SHAFT, GEAR SHIFT FORK

25421-04702

2
Out of stock

4

CAM, GEAR SHIFT

25311-14H10

1
Out of stock

5

RETAINER, GEAR SHIFT CAM

25341-09400

1
Out of stock

6

PLATE, SHIFT CAM STOPPER

25381-35401

1
Out of stock

7

GUIDE, GR SHIKFT CAM

25382-35401

1
Out of stock

8

SCREW (6X16)

09126-06014

2
Out of stock

9

ROLLER (4X13.8)

09261-04002

4
Out of stock

10

BOLT

01547-0616A

1
Out of stock

11

STOPPER

08211-06221

—
Out of stock

12

STOPPER, GEAR SHIFT CAM

25350-09D00

1
Out of stock

13

SPRING, SHIFT CAM STOPPER

25355-14H00

1
Out of stock

14

BOLT (6X14.3)

09111-06041

1
Out of stock

15

WASHER

08211-06121

1
Out of stock

16

ARM ASSY, GEAR SHIFT

25501-09451

1
Out of stock

17

.SPRING

09443-05030

1
Out of stock

18

SPRING

09444-26025

1
Out of stock

19

SHAFT, GEAR SHIFT

25510-09405

1
Out of stock

20

STOPPER, SHAFT ARM

25671-35410

1
Out of stock

21

SPACER (12X16X20)

09180-12036

1
Out of stock

22

SHIM (12X20X1)

09181-12167

1
Out of stock

23

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

24

LEVER ASSY,GEAR SHIFT This part replaces 25600-14H00.

25600-14H01

1
Out of stock

25

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

26

BOLT

01500-0620A

1
Out of stock

27

BASE ASSY, NEUT SW TERM

37720-09420

1
Out of stock

28

PIN (5X15.5)

09209-05011

1
Out of stock

29

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

30

SPRING

09440-04010

1
Out of stock

31

SCREW

02112-1516A

—
Out of stock
