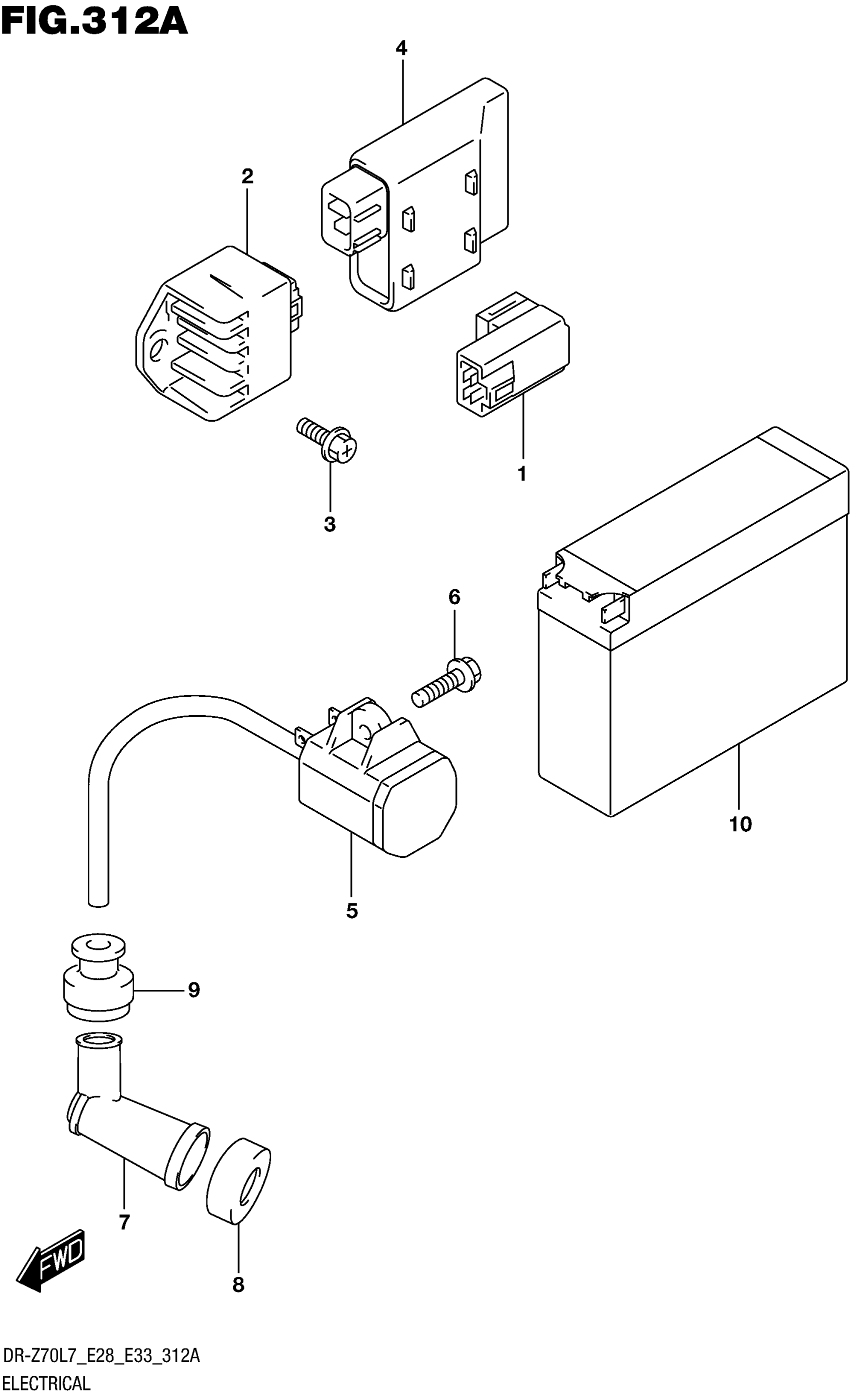

Suzuki DR-Z70L7 (2017) ELECTRICAL Diagram

#

Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-14H00.

31800-14H01

$59.52

2

RECTIFIER ASSY This part replaces 32800-41H00.

32800-41H01

$155.43

3

SCREW This part replaces 02162-0616A.

02162-0616B

$2.13

4

CDI UNIT

32900-14H00

$459.92

5

COIL ASSY, IGNITION

33410-14H00

$142.87

6

SCREW

02162-0620B

$2.27

7

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.10

8

SEAL, SPARK PLUG

33541-38210

$4.60

9

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

10

BATTERY ASSY

33610-39C20

$168.22

10

(YT4B-BS 12V 2.4AH)

33610-39C20

$168.22
