2016 Suzuki DR-Z70L6 Magneto Diagram

← All diagrams

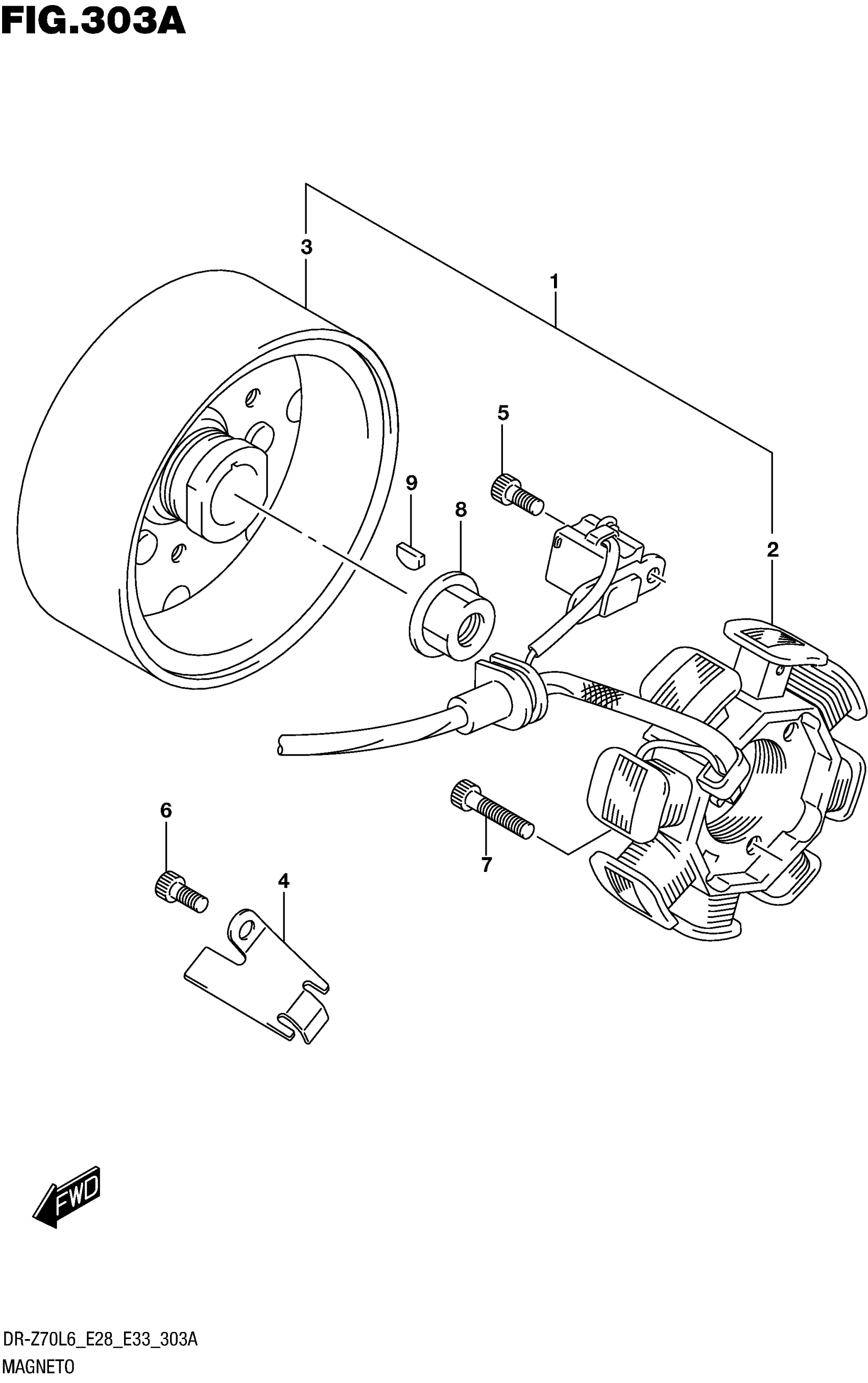

Find the part on the Magneto diagram for your 2016 Suzuki DR-Z70L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z70L6 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY

32100-14H00

1
Out of stock

2

.STATOR ASSY, MAGNETO

32101-14H00

1
Out of stock

3

.ROTOR ASSY, MAGNETO

32102-14H00

1
Out of stock

4

CLAMP, MAGNETO LEAD WIRE

32371-30D00

1
Out of stock

5

BOLT

07130-0512A

2
Out of stock

6

BOLT

07130-0612A

1
Out of stock

7

BOLT

07130-0620A

2
Out of stock

8

NUT

08316-1010A

1
Out of stock

9

KEY

08341-31039

1
Out of stock
