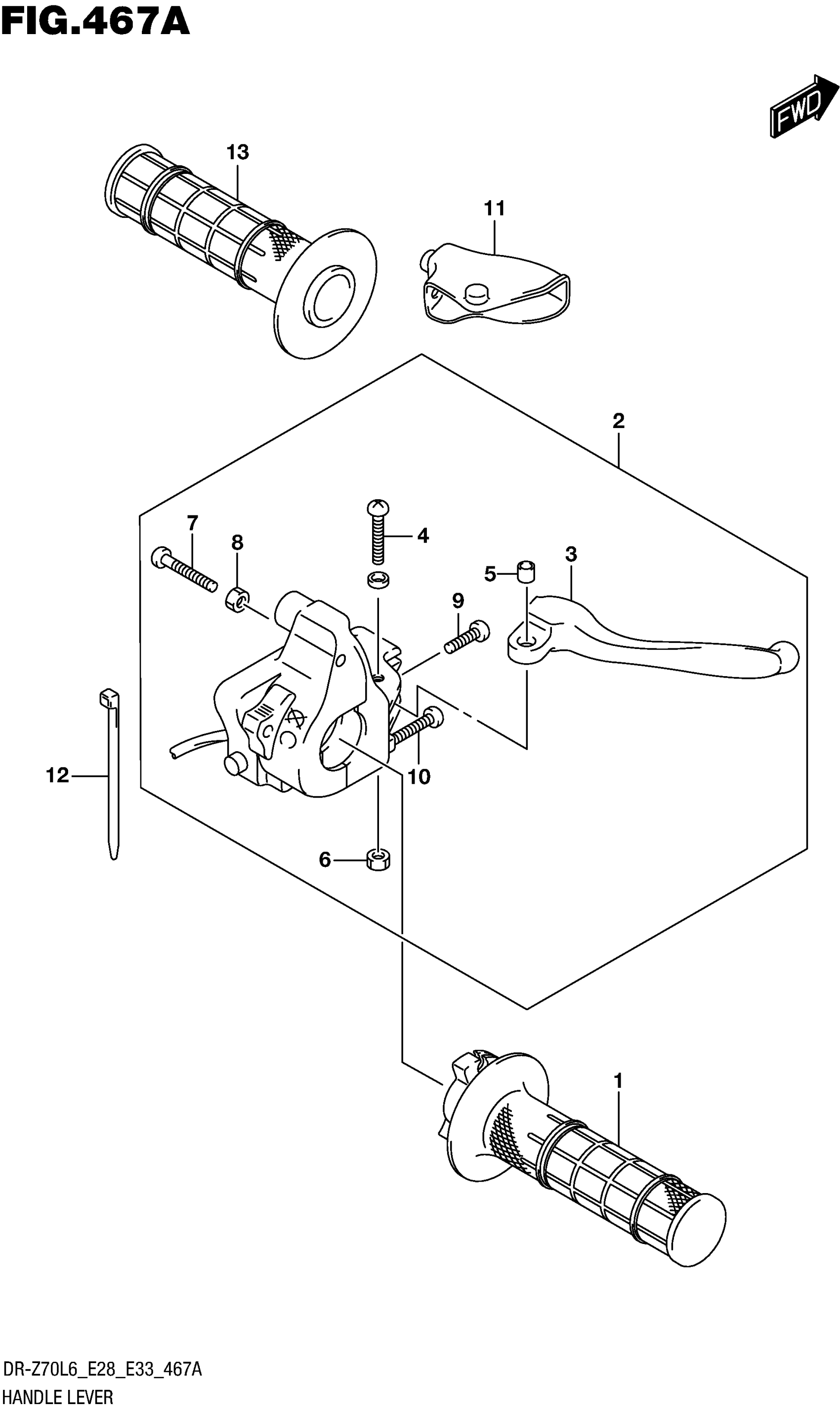

Find the part on the Handle Lever diagram for your 2016 Suzuki DR-Z70L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z70L6 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-14H00

1
Out of stock

2

LEVER ASSY,FR BRAKE & SWITCH This part replaces 57300-14H01.

57300-14H02

1
Out of stock

3

.LEVER

57421-14H00

1
Out of stock

4

.SCREW

02112-0525A

1
Out of stock

5

.SPACER

57435-12900

1
Out of stock

6

.NUT

08319-2105A

1
Out of stock

7

.SCREW

02112-0525A

1
Out of stock

8

NUT

08310-0005A

1
Out of stock

9

.SCREW

02112-0516A

1
Out of stock

10

.SCREW This part replaces 02112-0545A.

02112-0545B

1
Out of stock

11

COVER,BRAKE LEVER This part replaces 57314-14H00.

57314-14H01

1
Out of stock

12

CLAMP (L:95)

09407-11401

1
Out of stock

13

GRIP, LH

57211-14H00

1
Out of stock
