2016 Suzuki DR-Z70L6 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2016 Suzuki DR-Z70L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

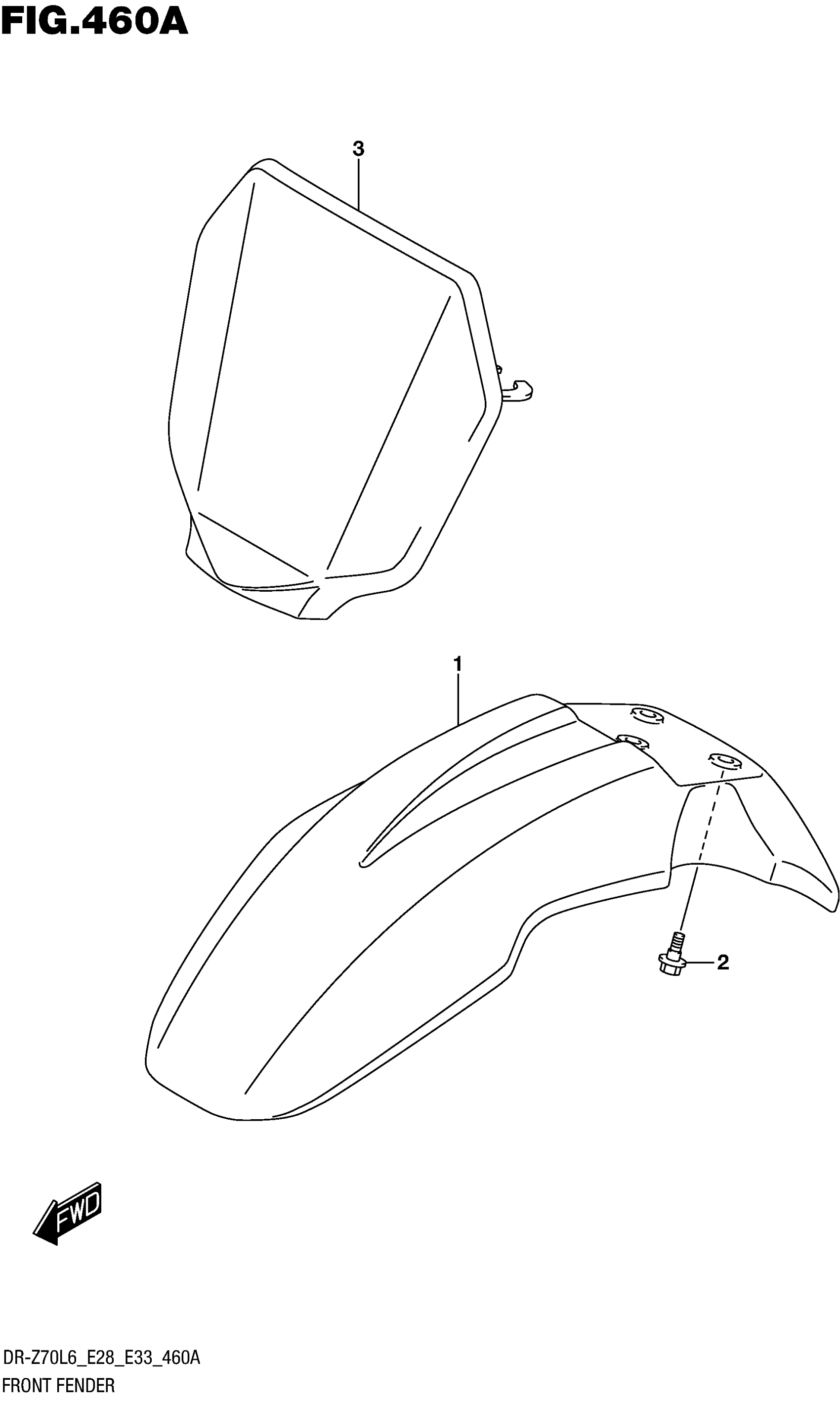

2016 Suzuki DR-Z70L6 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-14H00-YU1

1

$154.65

In stock

2

BOLT (6X17.8)

09111-06072

3

$2.19

In stock

3

1

$69.32

In stock
