2016 Suzuki DR-Z70L6 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2016 Suzuki DR-Z70L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

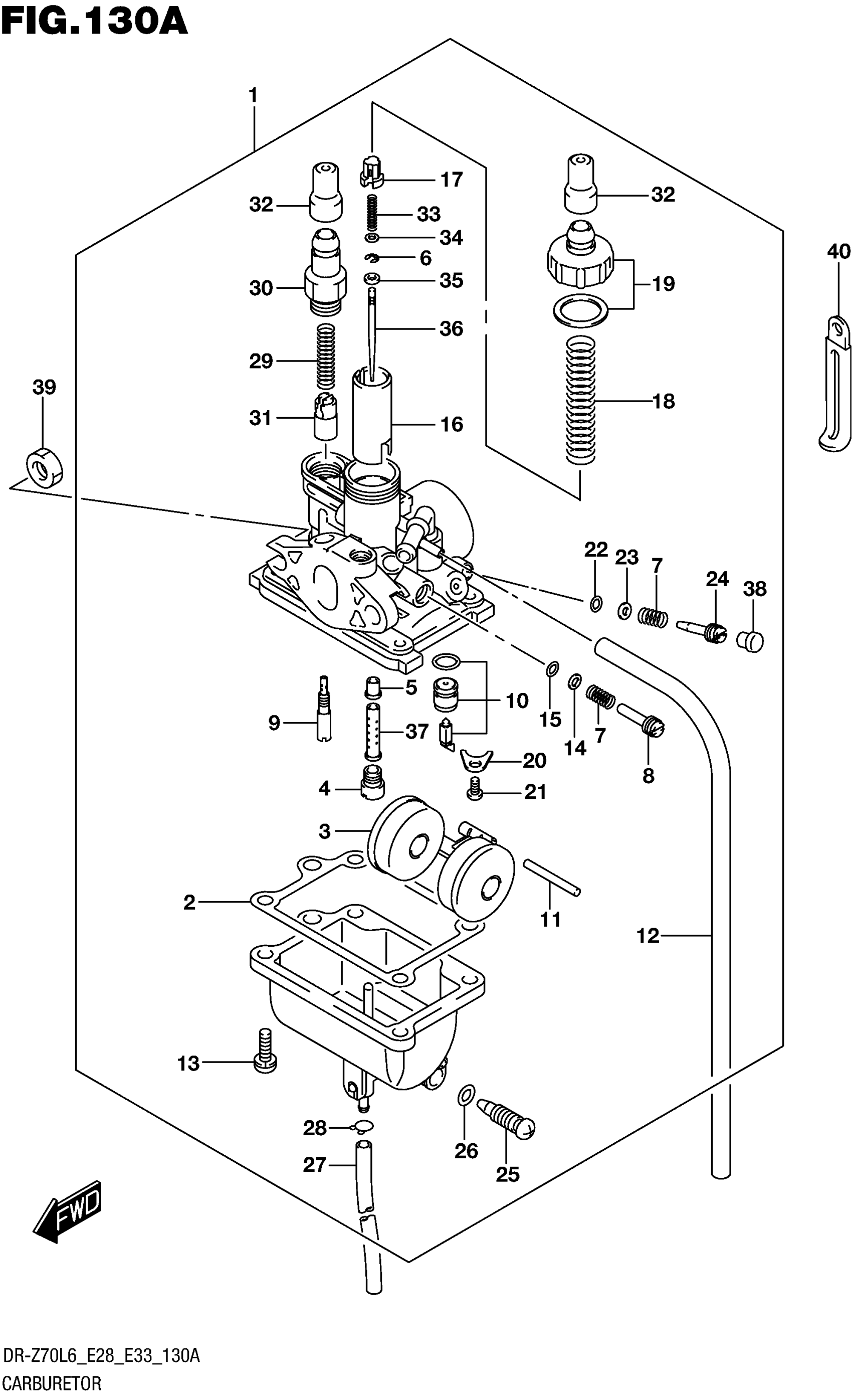

2016 Suzuki DR-Z70L6 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$186.76

In stock

2

.GASKET

13251-02410

1
Out of stock

3

.FLOAT

13250-02500

1
Out of stock

4

.JET, MAIN (57.5)

09491-57005

1
Out of stock

5

.JET, NEEDLE (E-5M)

13341-14H00

1
Out of stock

6

.E RING

13533-98410

1
Out of stock

7

.SPRING

13268-35010

2
Out of stock

8

.SCREW

13483-16A01

1
Out of stock

9

.JET, PILOT (17.5)

09492-17012

1
Out of stock

10

.VALVE ASSY, NEEDLE

13370-36G00

1
Out of stock

11

.PIN, FLOAT

13254-20010

1
Out of stock

12

.HOSE | L:600->200 This part replaces 09352-50903-600.

09352-50006-600

1
Out of stock

13

.SCREW

13601-04148

4
Out of stock

14

.WASHER

13291-35010

1
Out of stock

15

.O RING

13295-33010

1
Out of stock

16

.VALVE, PISTON

13551-36G00

1
Out of stock

17

.HOLDER

13418-12F40

1
Out of stock

18

.SPRING

13268-36G00

1
Out of stock

19

.CAP

13261-36G00

1
Out of stock

20

.PLATE

13373-46710

1
Out of stock

21

.SCREW

02112-0306B

1
Out of stock

22

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

23

.WASHER

13291-29900

1
Out of stock

24

.ADJUSTER (2,0)

13269-43G00

1
Out of stock

25

.PLUG, DRAIN

13247-09G10

1
Out of stock

26

.O RING

13278-02330

1
Out of stock

27

.HOSE (3X7X600) | L:600->250 This part replaces 09355-30705-600.

09355-30001-600

1
Out of stock

28

.CLIP This part replaces 13529-98010.

13529-98011

1
Out of stock

29

.SPRING

13417-37200

1
Out of stock

30

.CAP, STARTER

13418-14H00

1
Out of stock

31

.PLUNGER, STARTER

13411-22G00

1
Out of stock

32

.CAP

13416-26F00

2
Out of stock

33

.SPRING

13481-23F00

1
Out of stock

34

.WASHER

13382-23F00

1
Out of stock

35

.RING

13387-23F00

1
Out of stock

36

.NEEDLE, JET

13383-14H00

1
Out of stock

37

.PIPE

13385-14H10

1
Out of stock

38

.PLUG

13281-05A00

1
Out of stock

39

NUT

09140-06027

2
Out of stock

40

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock
