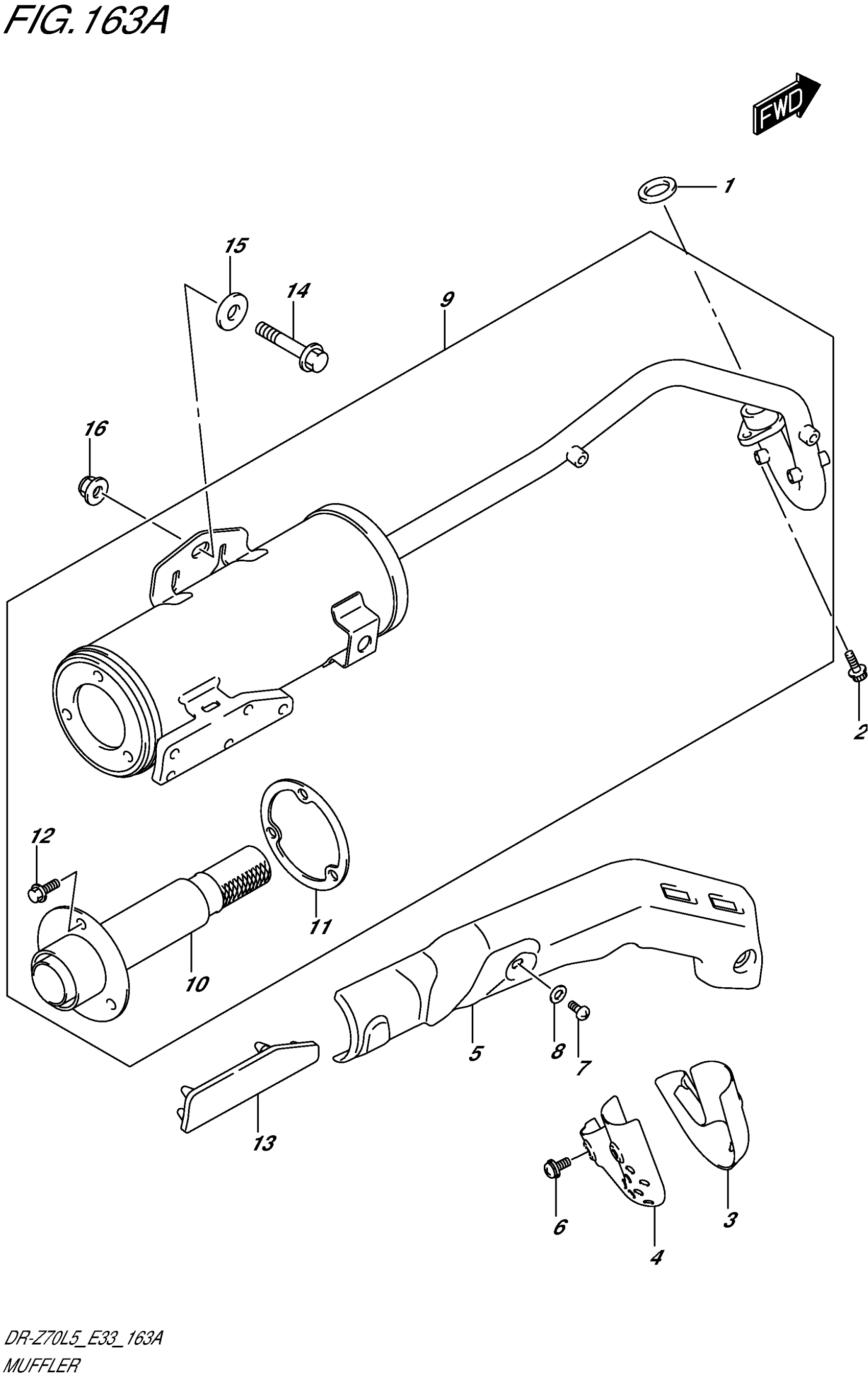

Suzuki DR-Z70L5 (2015) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-09D00

$8.97

2

BOLT

07120-0620A

$2.80

3

COVER, EXHAUST PIPE

14186-14H00

Unavailable

4

COVER, EXHAUST PIPE INNER

14187-14H00

Unavailable

5

COVER, EXHAUST PIPE NO.2

14188-14H00

$103.77

6

SCREW

02112-7508A

$2.50

7

BOLT (5X10)

09106-05030

$3.30

8

WASHER

08322-0105A

$1.83

9

BODY, MUFFLER

14310-14H00

Unavailable

10

ARRESTER

14850-14H00

$71.63

11

.GASKET, ARRESTER

14773-08G00

$6.83

12

BOLT (6X12)

09103-06273

$2.24

13

PROTECTOR, HEAT GUARD

14782-14H00

$11.37

14

BOLT (8X40)

09103-08388

Unavailable

15

WASHER (8.5X22X2)

09160-08127

$2.13

16

NUT

08319-3108A

$2.31
