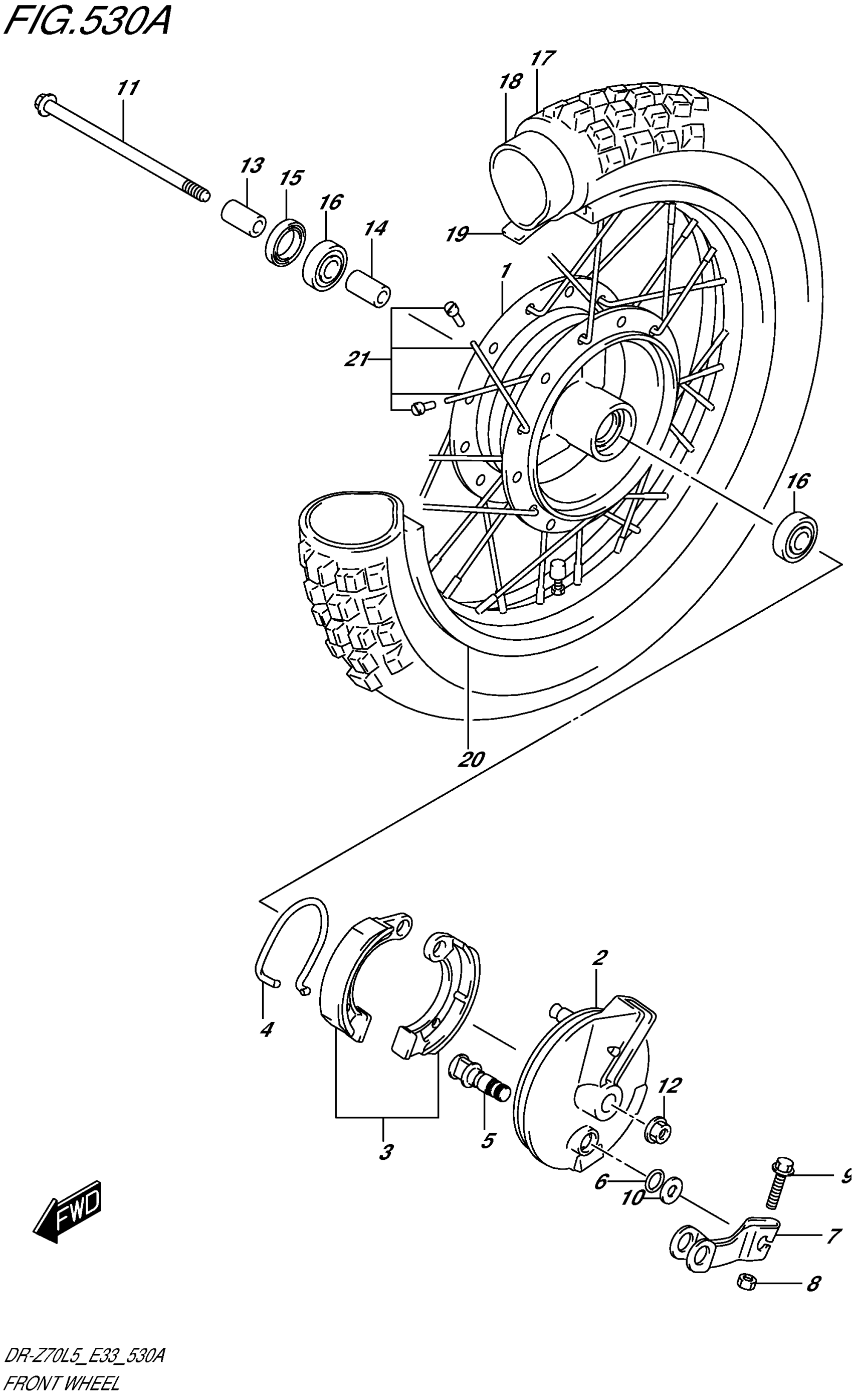

Suzuki DR-Z70L5 (2015) FRONT WHEEL Diagram

DRUM, FRONT HUB

54110-14H00

Unavailable

PANEL, FRONT BRAKE ANCHOR

54210-14H00

Unavailable

SHOE SET, BRAKE

54400-14870

$34.97

SPRING,BRAKE SHOE

54424-14H00

$14.35

SHAFT, BRAKE CAM

54440-14H00

$35.30

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.33

LEVER, BRAKE CAM

54451-14H00

$28.07

NUT

08310-0005A

$1.83

BOLT

01550-0525A

$2.58

WASHER (10.5X18X1)

09160-10121

$2.06

AXLE, FRONT

54711-14H00

$49.27

NUT

08319-3112A

$3.38

SPACER, AXLE RH

54741-14H00

Unavailable

SPACER, FRONT HUB BEARING

54731-14H00

Unavailable

OIL SEAL (32X20X5)

09282-20008

$12.28

BEARING

08133-62017

$16.90

TIRE, FRONT (2.50-10 33J)

55100-14H00

$115.50

TUBE ASSY,WHEEL INNER This part replaces 55200-14H00.

55200-14H01

$40.55

PROTECTOR, INNER TUBE

55261-14H10

$4.77

RIM, WHEEL (10X1.40)

55311-14H00

$330.73

SPOKE SET, FRONT WHEEL

55320-14H00

$125.65
