2015 Suzuki DR-Z70L5 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2015 Suzuki DR-Z70L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

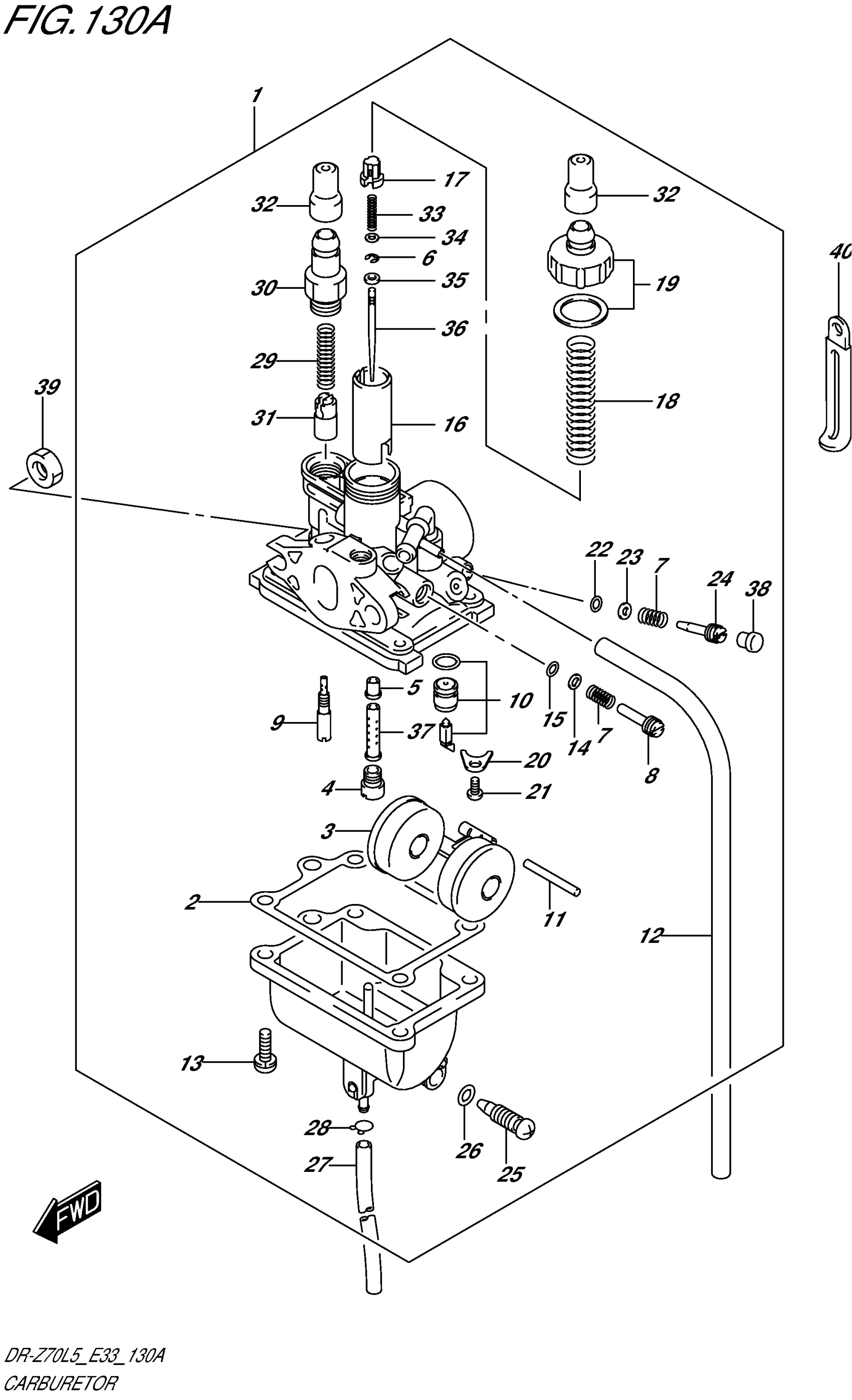

2015 Suzuki DR-Z70L5 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$186.76

In stock

2

GASKET

13251-02410

1
Out of stock

3

FLOAT

13250-02500

1
Out of stock

4

JET, MAIN (57.5)

09491-57005

1

$20.02

In stock

5

JET, NEEDLE (E-5M)

13341-14H00

1

$49.97

In stock

6

E RING

13533-98410

1

$5.47

In stock

7

SPRING

13268-35010

2
Out of stock

8

SCREW

13483-16A01

1
Out of stock

9

JET, PILOT (17.5)

09492-17012

1

$26.53

In stock

10

VALVE ASSY, NEEDLE

13370-36G00

1

$65.27

In stock

11

PIN, FLOAT

13254-20010

1
Out of stock

12

1

$7.25

In stock

13

SCREW

13601-04148

4
Out of stock

14

WASHER

13291-35010

1
Out of stock

15

O RING

13295-33010

1
Out of stock

16

VALVE, PISTON

13551-36G00

1

$54.60

In stock

17

HOLDER

13418-12F40

1

$8.13

In stock

18

SPRING

13268-36G00

1

$5.75

In stock

19

CAP

13261-36G00

1

$42.37

In stock

20

PLATE

13373-46710

1
Out of stock

21

SCREW

02112-0306B

1
Out of stock

22

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

23

WASHER

13291-29900

1
Out of stock

24

ADJUSTER (2,0)

13269-43G00

1
Out of stock

25

PLUG, DRAIN

13247-09G10

1
Out of stock

26

O RING

13278-02330

1
Out of stock

28

.CLIP This part replaces 13529-98010.

13529-98011

1
Out of stock

29

SPRING

13417-37200

1

$3.65

In stock

30

CAP, STARTER

13418-14H00

1
Out of stock

31

PLUNGER, STARTER

13411-22G00

1

$21.62

In stock

32

CAP

13416-26F00

2

$7.03

In stock

33

SPRING

13481-23F00

1

$6.40

In stock

34

WASHER

13382-23F00

1

$5.02

In stock

35

RING

13387-23F00

1

$6.83

In stock

36

NEEDLE, JET

13383-14H00

1

$21.62

In stock

37

PIPE

13385-14H10

1

$21.48

In stock

38

PLUG

13281-05A00

1

$4.58

In stock

39

NUT

09140-06027

2

$2.97

In stock

40

1

$1.89

In stock
