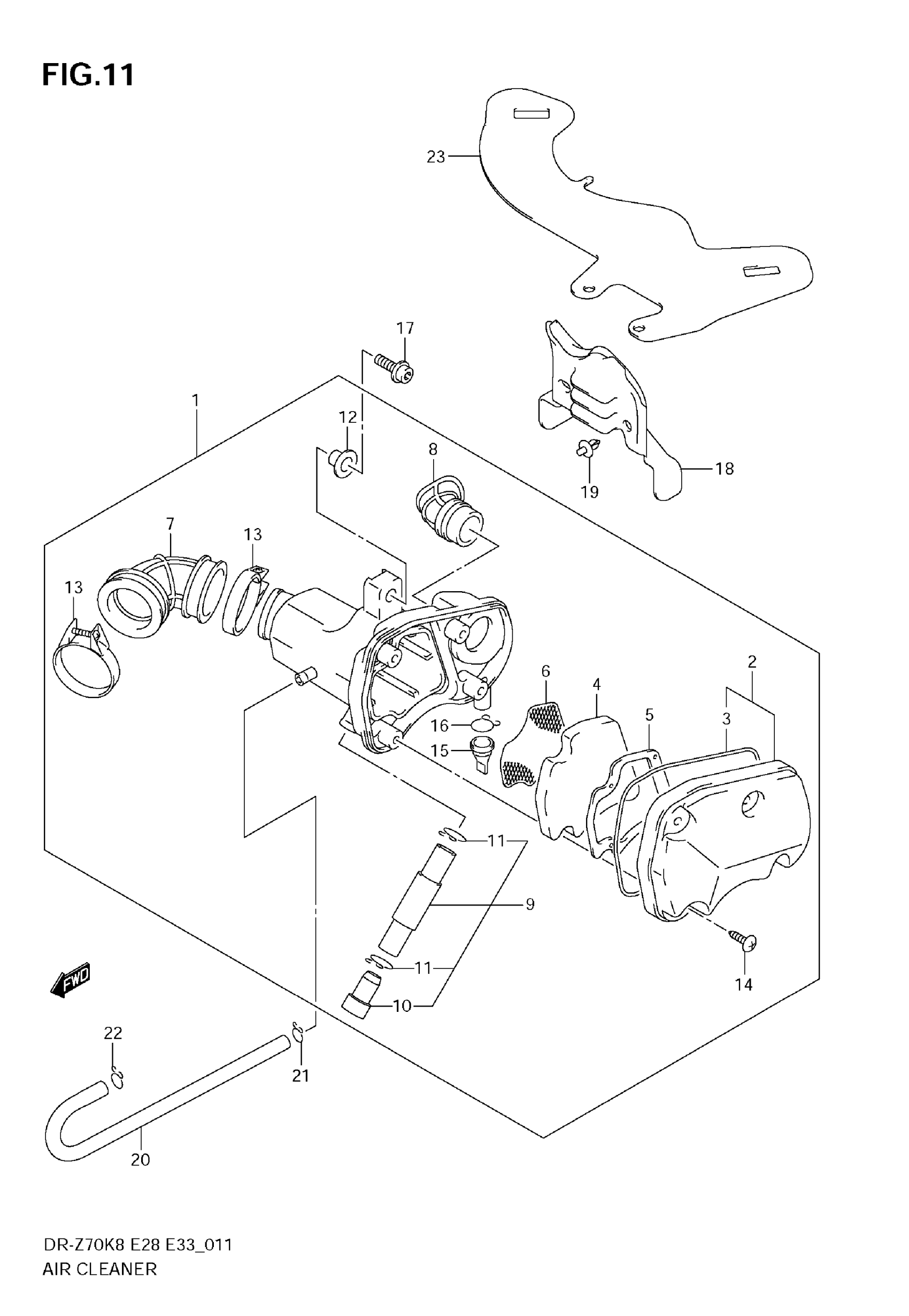

Find the part on the Air Cleaner diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki DR-Z70 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CAP

13740-14H00

1

$24.10

In stock

3

GASKET

13746-14H00

1

$7.83

In stock

4

FILTER

13780-14H00

1

$14.25

In stock

5

HOLDER

13791-14H00

1
Out of stock

6

TRAP, FLAME

13811-14H00

1

$11.93

In stock

7

TUBE, OUTLET

13881-14H00

1

$19.10

In stock

8

TUBE, INLET

13890-14H00

1
Out of stock

9

1

$17.92

In stock

10

PLUG

13877-00190

1

$6.00

In stock

11

CLIP

09401-14301

2

$2.50

In stock

12

SPACER (6.2X8.4X10.9)

09180-06331

1
Out of stock

13

CLAMP

09402-36208

2
Out of stock

14

SCREW

02142-0514B

4

$0.89

In stock

15

TUBE, DRAIN

13878-39C10

1

$4.41

In stock

16

CLIP

09401-10401

1

$1.55

In stock

17

BOLT

07120-0620A

1
Out of stock

18

COVER, CLEANER INLET

13840-14H00

1
Out of stock

19

CLIP

09409-06314-5PK

2

$2.92

In stock

20

1

$12.82

In stock

21

CLIP

09401-09101

1
Out of stock

22

1

$1.55

In stock

23

SHEET, AIR CLEANER INLET

13842-14H00

1
Out of stock
