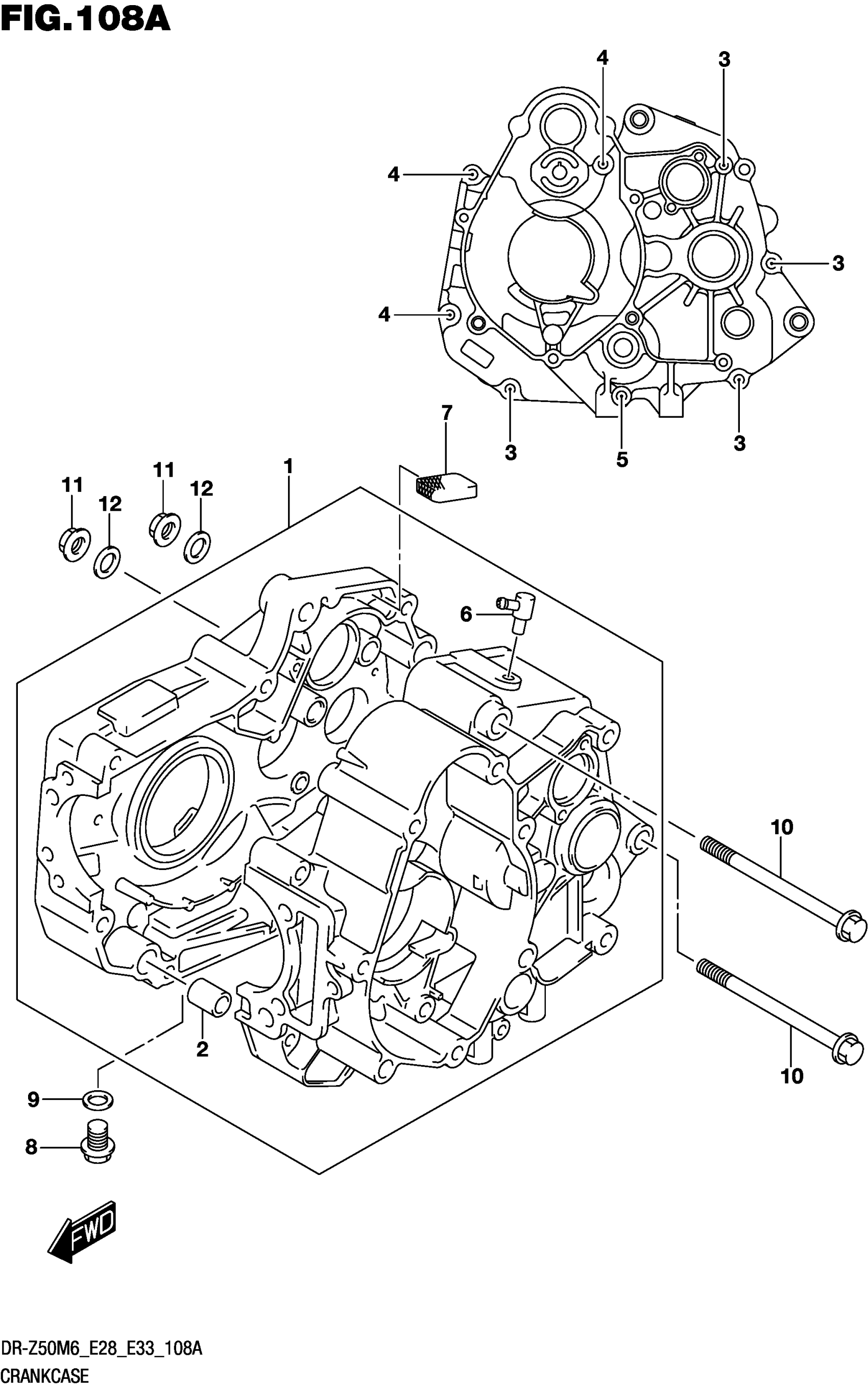

Find the part on the Crankcase diagram for your 2026 Suzuki DR-Z50M6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki DR-Z50M6 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-14810

1
Out of stock

2

PIN (10.4X13X18)

04211-13189

2
Out of stock

3

BOLT

01547-0630A

4
Out of stock

4

BOLT

01547-0640A

3
Out of stock

5

BOLT

01547-0675A

1
Out of stock

6

.UNION,BREATHER HOSE

16910-09401

1
Out of stock

7

SEPARATOR,OIL BRTHR

11186-30D00

1
Out of stock

8

PLUG (10X12)

09247-10008

1
Out of stock

9

GASKET (10X14X3.6)

09168-10002

1
Out of stock

10

BOLT,8X100 (8X100)

09103-08070

2
Out of stock

11

NUT

08319-3108A

2
Out of stock

12

WASHER

08322-0108A

2
Out of stock
