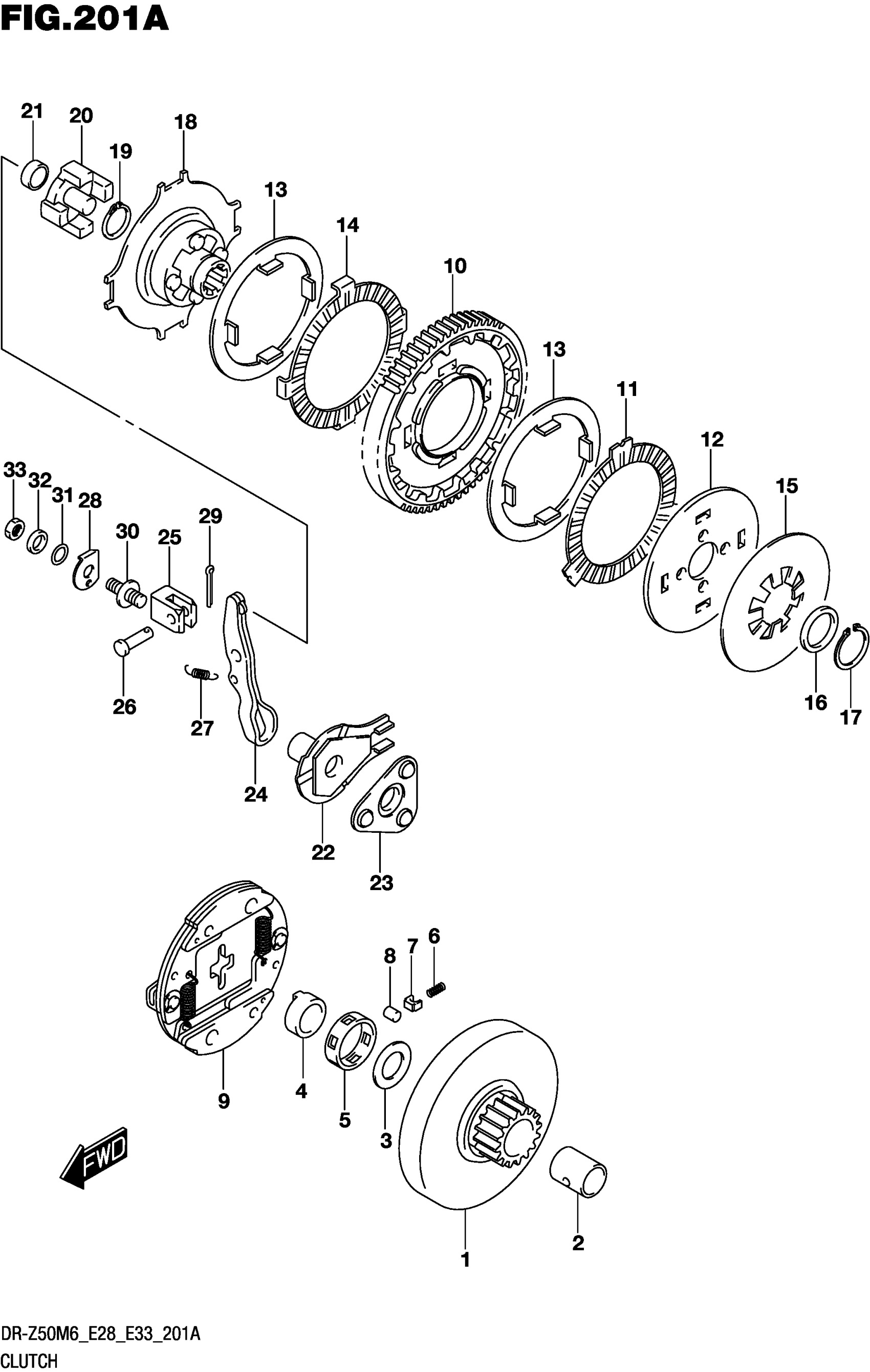

Suzuki DR-Z50M6 (2026) CLUTCH Diagram

#

Description
Price

1

GEAR,PRIMARY DRIVE

21110-09407

$154.03

2

SPACER,16X21X23.5 (16X21X23.5

09180-16031

Unavailable

3

SHIM (16X28X1)

09181-16223

Unavailable

4

RACE,ONE WAY CLUTCH

21631-09403

$25.08

5

RETAINER,ONE WAY CLUTCH

21652-09401

$25.08

6

SPRING

09440-02002

$2.25

7

BLOCK,SPRING

21236-09400

$17.57

8

ROLLER,6X6.4 (OD:6,L:6.4)

09261-06006

$2.07

9

CLUTCH ASSY,SHOE

21501-42H00

$190.43

10

GEAR,PRIMARY DRIVEN (NT:65) | 65)

21210-36G00

Unavailable

11

PLATE,CLUTCH DRIVE (T:2.6)

21441-09D02

$17.31

12

PLATE,CLUTCH PRESSURE (T:2.4)

21461-30A00

Unavailable

13

PLATE,CLUTCH DRIVEN (T:2.1)

21451-14H00

$24.10

14

PLATE,CLUTCH DRIVEN,NO.2 | 6)

21452-35401

$23.42

15

SPRING

09164-22010

$18.58

16

SPACER,22X28X4 (22X28X4)

09180-22033

Unavailable

17

CIRCLIP

08331-31219

$2.65

18

HUB,SLEEVE

21410-09403

Unavailable

19

CIRCLIP

08331-31179

$1.88

20

PIECE,CLUTCH PUSH

23121-30A01

Unavailable

21

BEARING (16X6)

09266-16002

$28.57

22

GUIDE,RELEASE BALL OUTER

23230-30A01

Unavailable

23

BALL,CLUTCH RELEASE

23250-35402

Unavailable

24

ARM,CLUTCH RELEASE

23221-09406

$18.22

25

BOSS,CLUTCH RELEASE ARM

23222-09401

Unavailable

26

PIN

09200-07005

Unavailable

27

SPRING

09443-06053

$1.53

28

WASHER (6.5X22X1.2)

09169-06046

$1.17

29

PIN

04111-1615A

Unavailable

30

BOLT,CLUTCH RELEASE ADJUST

23223-09404

$8.97

31

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

32

WASHER,6.5X13X3.2 (6.5X13X3.2

09160-06123

$1.77

33

NUT (6X3.6)

09140-06023

$2.07
