2025 Suzuki DR-Z50M5 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Suzuki DR-Z50M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

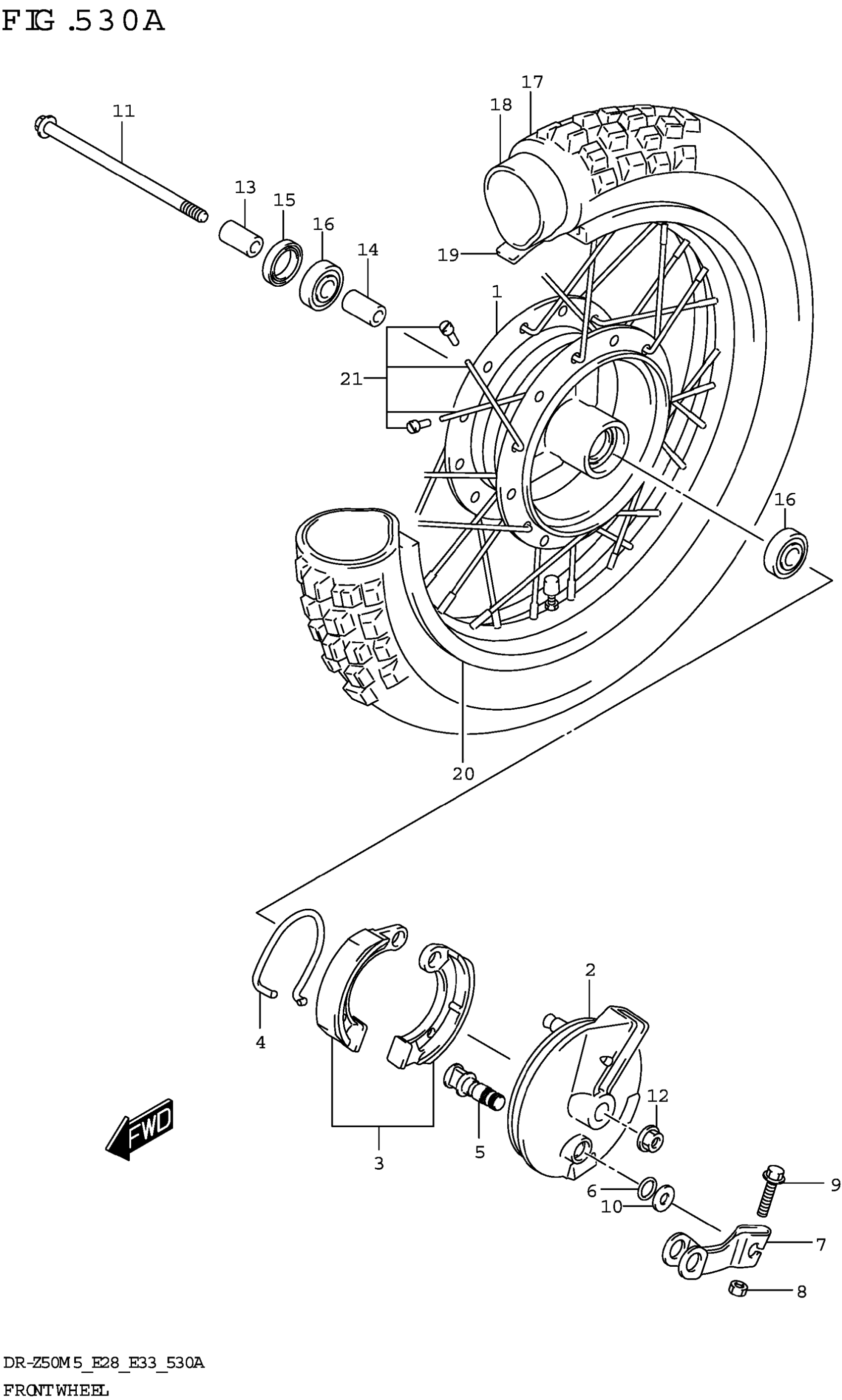

2025 Suzuki DR-Z50M5 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT WHEEL

54110-14H00

1
Out of stock

2

PANEL,FRONT BRAKE ANCHOR

54210-14H00

1
Out of stock

3

SHOE SET,BRAKE

54400-14870

1

$34.97

In stock

4

SPRING,BRAKE SHOE

54424-14H00

1

$14.35

In stock

5

CAM,BRAKE

54440-14H00

1

$35.30

In stock

7

LEVER,BRAKE CAM

54451-14H00

1

$28.07

In stock

8

NUT

08310-0005A

1
Out of stock

9

BOLT

01550-0525A

1

$2.58

In stock

10

WASHER (10.5X18X1)

09160-10121

1

$2.22

In stock

11

AXLE,FRONT

54711-14H00

1

$49.27

In stock

12

NUT

08319-3112A

1
Out of stock

13

SPACER,FRONT AXLE,R

54741-14H00

1
Out of stock

14

SPACER,FRONT HUB BEARING

54731-14H00

1
Out of stock

15

1

$12.28

In stock

16

BEARING

08123-6201B

2

$25.68

In stock

17

TIRE (2.50-10 33J)

55100-14H00

1

$115.50

In stock

18

TUBE ASSY,WHEEL INNER

55200-14H01

1

$40.55

In stock

19

1

$4.77

In stock

20

RIM,WHEEL (10X1.40)

55311-14H00

1

$330.73

In stock

21

SPOKE SET,WHEEL

55320-14H00

1

$125.65

In stock
