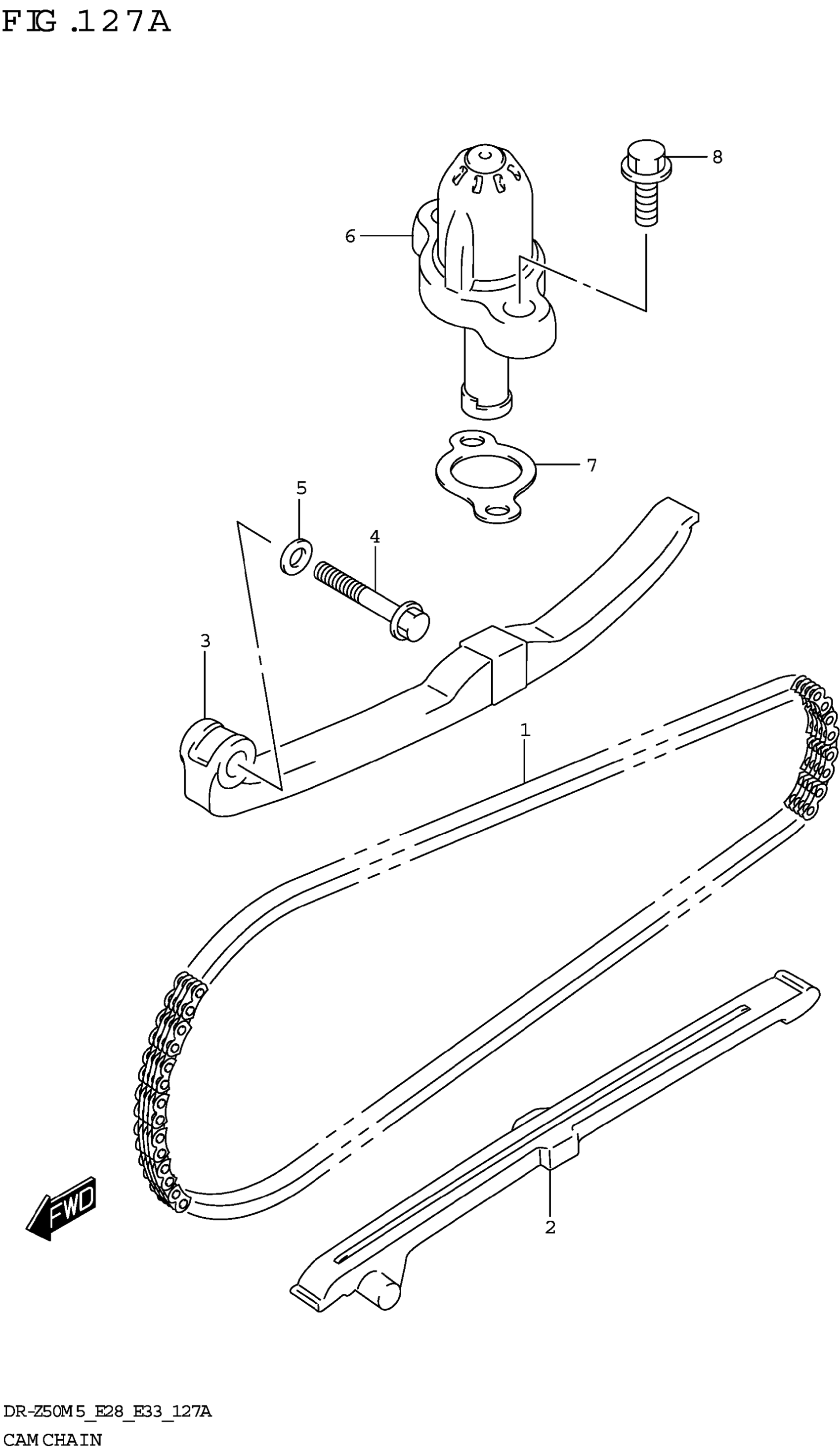

Suzuki DR-Z50M5 (2025) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAM SHAFT DRIVE | 5SH)

12760-02A00

Unavailable

2

GUIDE,CAM CHAIN

12771-02A20

$34.12

3

TENSIONER,CAM CHAIN

12811-09403

$34.57

4

BOLT,6X30 (6X30)

09103-06246

Unavailable

5

GASKET (6.2X11X1.2)

09168-06004

$1.43

6

ADJUSTER ASSY,TENSIONER

12830-32G02

$72.25

7

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

8

BOLT

01547-0620A

$2.01
