2023 Suzuki DR-Z50M3 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2023 Suzuki DR-Z50M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

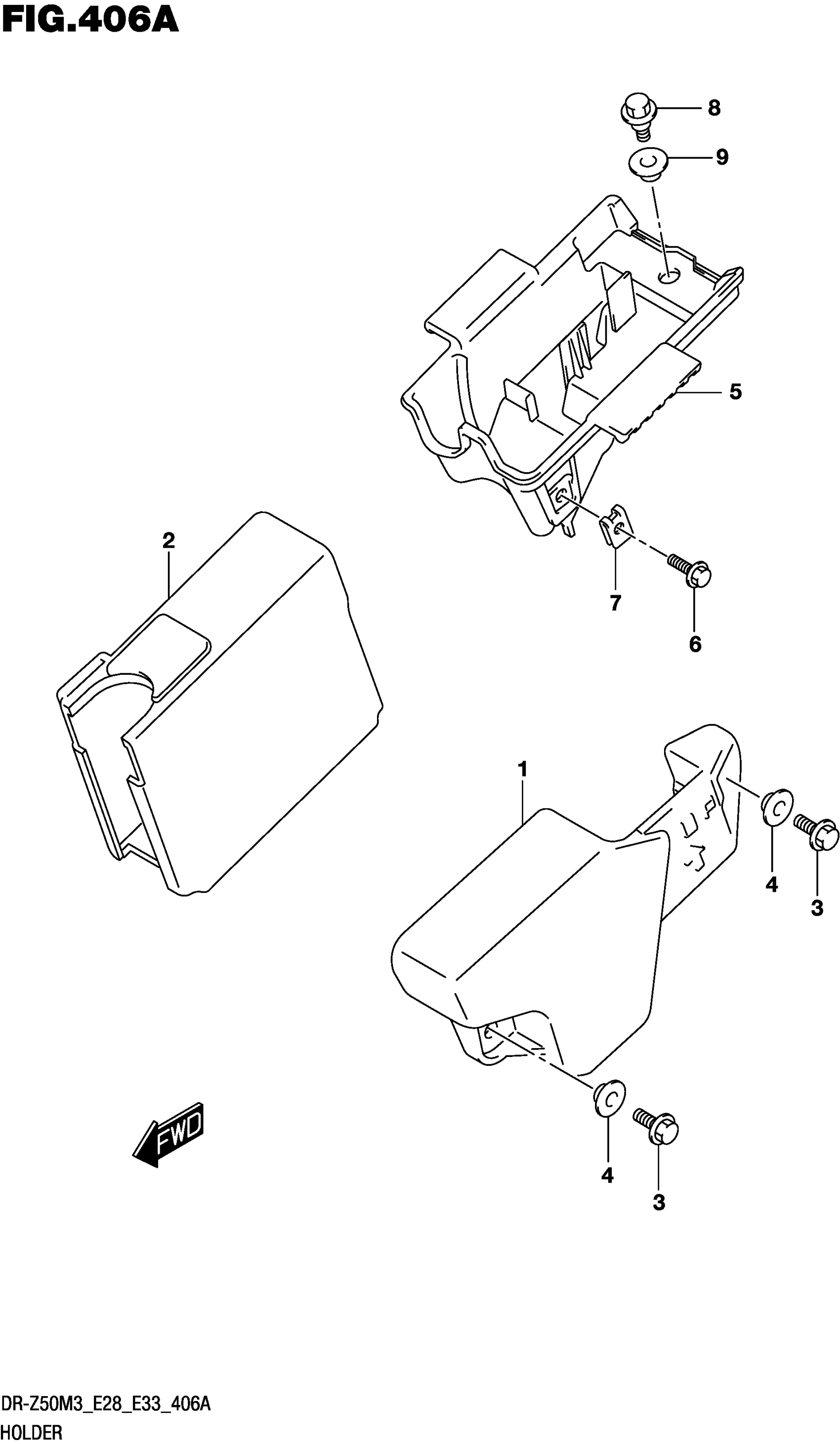

2023 Suzuki DR-Z50M3 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,BATTERY

41541-14H00

1
Out of stock

2

RUBBER,BATTERY HOLDER

41566-14H00

1
Out of stock

3

BOLT

01547-0612A

2
Out of stock

4

WASHER

09169-06040

2
Out of stock

5

HOLDER,ELECTRIC PARTS

47411-14H00

1
Out of stock

6

SCREW

02162-0516A

1
Out of stock

7

NUT (M5)

09148-05052

1
Out of stock

8

BOLT

01547-0612A

1
Out of stock

9

WASHER This part replaces 09169-06032.

09169-06071

1
Out of stock
