2022 Suzuki DR-Z50M2 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2022 Suzuki DR-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

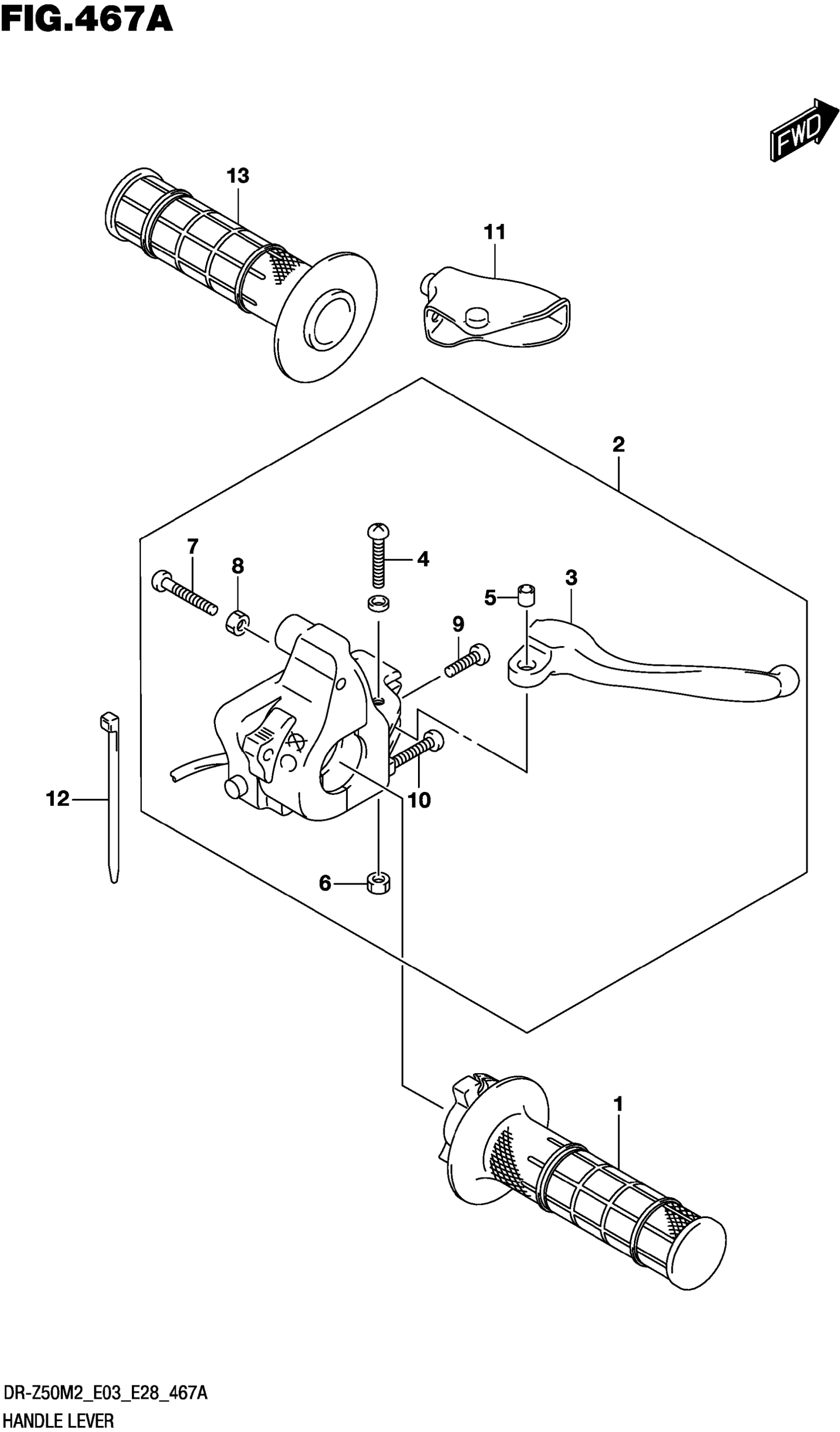

2022 Suzuki DR-Z50M2 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE

57110-14H00

1
Out of stock

2

LEVER ASSY,FR BRAKE & SWITCH

57300-14H02

1
Out of stock

3

.LEVER,BRAKE

57421-14H00

1
Out of stock

4

.SCREW

02112-0525A

1
Out of stock

5

.SPACER

57435-12900

1
Out of stock

6

SCREW This part replaces 57633-27500.

08319-21057

1
Out of stock

7

.SCREW

02112-0525A

1
Out of stock

8

NUT

08310-0005A

2
Out of stock

9

.SCREW

02112-0516A

2
Out of stock

10

.SCREW This part replaces 02112-0545A.

02112-0545B

1
Out of stock

11

COVER,BRAKE LEVER

57314-14H01

1
Out of stock

12

CLAMP (L:95)

09407-11401

1
Out of stock

13

GRIP,L

57211-14H00

1
Out of stock
