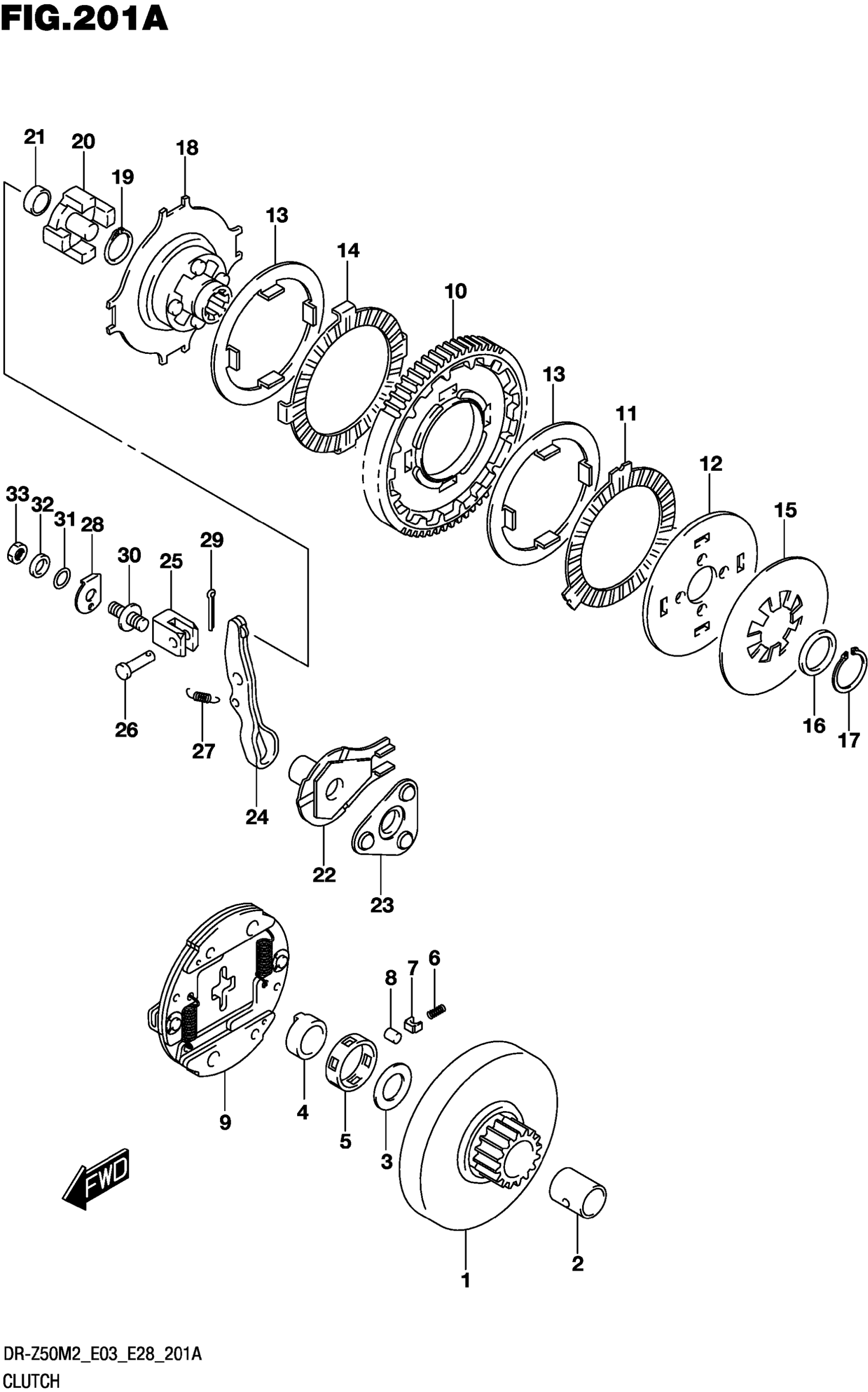

Find the part on the Clutch diagram for your 2022 Suzuki DR-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR-Z50M2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR,PRIMARY DRIVE

21110-09407

1
Out of stock

2

SPACER,16X21X23.5 (16X21X23.5

09180-16031

1
Out of stock

3

SHIM (16X28X1)

09181-16223

1
Out of stock

4

RACE,ONE WAY CLUTCH

21631-09403

1
Out of stock

5

RETAINER,ONE WAY CLUTCH

21652-09401

1
Out of stock

6

SPRING

09440-02002

1
Out of stock

7

BLOCK,SPRING

21236-09400

1
Out of stock

8

ROLLER,6X6.4 (OD:6,L:6.4)

09261-06006

3
Out of stock

9

CLUTCH ASSY,SHOE

21501-42H00

1
Out of stock

10

GEAR,PRIMARY DRIVEN (NT:65)

21210-36G00

—
Out of stock

11

PLATE,CLUTCH DRIVE (T:2.6)

21441-09D02

1
Out of stock

12

PLATE,CLUTCH PRESSURE (T:2.4)

21461-30A00

1
Out of stock

13

PLATE,CLUTCH DRIVEN (T:2.1)

21451-14H00

2
Out of stock

14

PLATE,CLUTCH DRIVEN,NO.2

21452-35401

1
Out of stock

15

SPRING

09164-22010

1
Out of stock

16

SPACER,22X28X4 (22X28X4)

09180-22033

1
Out of stock

17

CIRCLIP

08331-31219

1
Out of stock

18

HUB,SLEEVE

21410-09403

1
Out of stock

19

CIRCLIP

08331-31179

1
Out of stock

20

PIECE,CLUTCH PUSH

23121-30A01

1
Out of stock

21

BEARING (16X6)

09266-16002

1
Out of stock

22

GUIDE,RELEASE BALL OUTER

23230-30A01

1
Out of stock

23

BALL,CLUTCH RELEASE

23250-35402

1
Out of stock

24

ARM,CLUTCH RELEASE

23221-09406

1
Out of stock

25

BOSS,CLUTCH RELEASE ARM

23222-09401

1
Out of stock

26

PIN

09200-07005

1
Out of stock

27

SPRING

09443-06053

1
Out of stock

28

WASHER (6.5X22X1.2)

09169-06046

1
Out of stock

29

PIN

04111-1615A

—
Out of stock

30

BOLT,CLUTCH RELEASE ADJUST

23223-09404

1
Out of stock

31

.O RING (D:1.9,ID:5.7)

09280-06005

1
Out of stock

32

WASHER,6.5X13X3.2 (6.5X13X3.2

09160-06123

1
Out of stock

33

NUT (6X3.6)

09140-06023

1
Out of stock
