2021 Suzuki DR-Z50M1 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2021 Suzuki DR-Z50M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

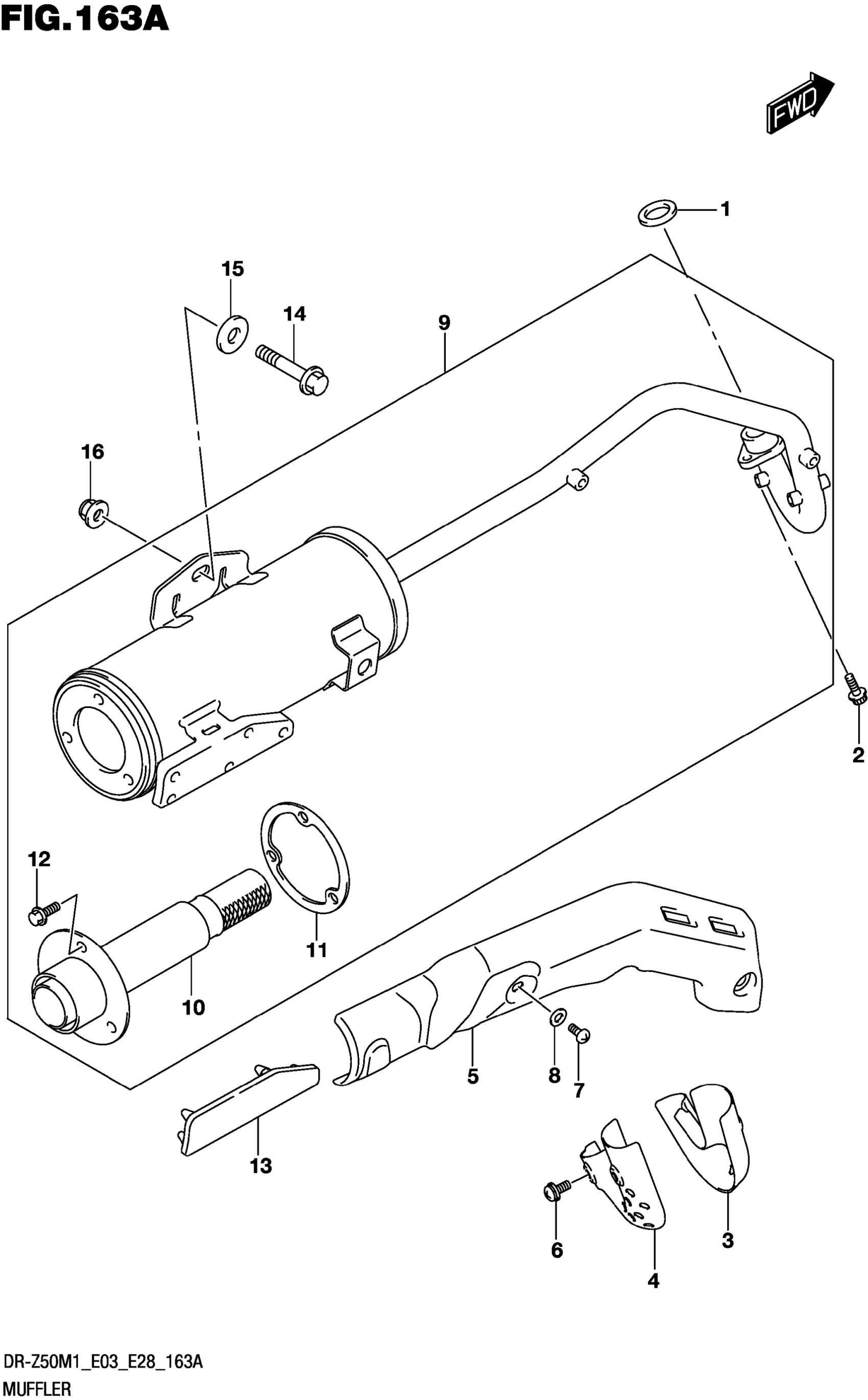

2021 Suzuki DR-Z50M1 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST PIPE

14181-09D00

1
Out of stock

2

BOLT

07120-0620A

2
Out of stock

3

COVER,EXH PIPE

14186-14H00

1
Out of stock

4

COVER,EXH PIPE INNER

14187-14H00

1
Out of stock

5

COVER,EXH PIPE NO.2

14188-14H00

1
Out of stock

6

SCREW

02112-7508A

4

$2.50

In stock

7

BOLT (5X10)

09106-05030

2
Out of stock

8

WASHER

08322-0105A

2

$1.97

In stock

9

BODY, MUF

14310-14H10

1
Out of stock

10

.ARRESTER

14850-14H00

1
Out of stock

11

.GASKET, ARRESTER

14773-08G00

1
Out of stock

12

BOLT (6X12)

09103-06273

3

$2.41

In stock

13

PROTECTOR,HEAT GUARD

14782-14H00

1
Out of stock

14

BOLT,8X40 (8X40)

09103-08388

1
Out of stock

15

WASHER (8.5X22X2.0)

09160-08127

1
Out of stock

16

NUT

08319-3108A

1
Out of stock
