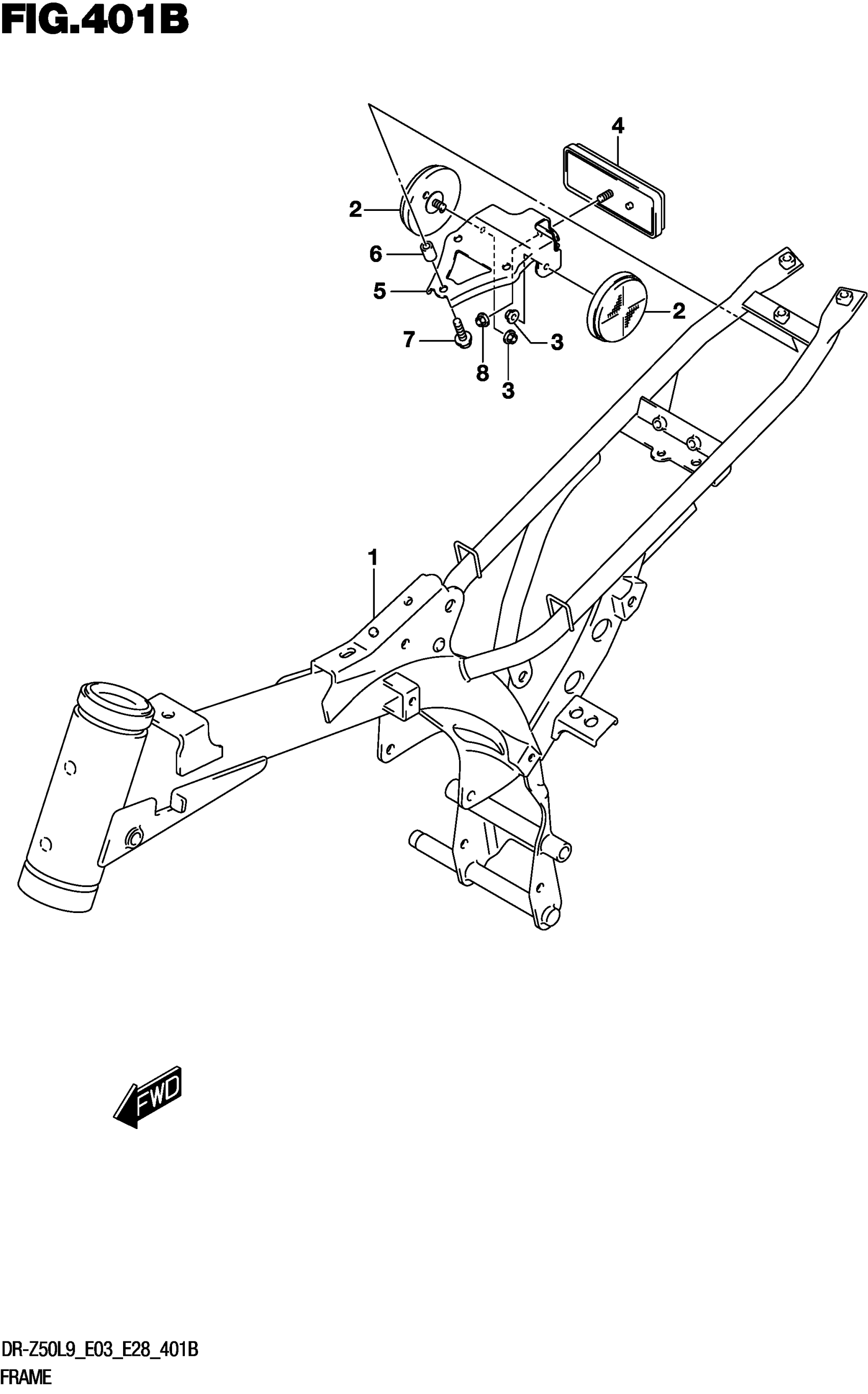

Suzuki DR-Z50L9 (2019) FRAME (DR-Z50L9 E28) Diagram

#

Description

Price

1

FRAME (BLACK)

41100-14H00-019

Unavailable

2

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

3

NUT

08316-1005A

$2.19

4

REFLECTOR ASSY,RR

35970-07F01

$19.11

5

BRACKET,SIDE & REAR REFL

35974-14H00

Unavailable

6

SPACER (6.5X10X13)

09180-06291

$2.67

7

SCREW

02162-0625A

$1.68

8

NUT

08316-1005A

$2.19
